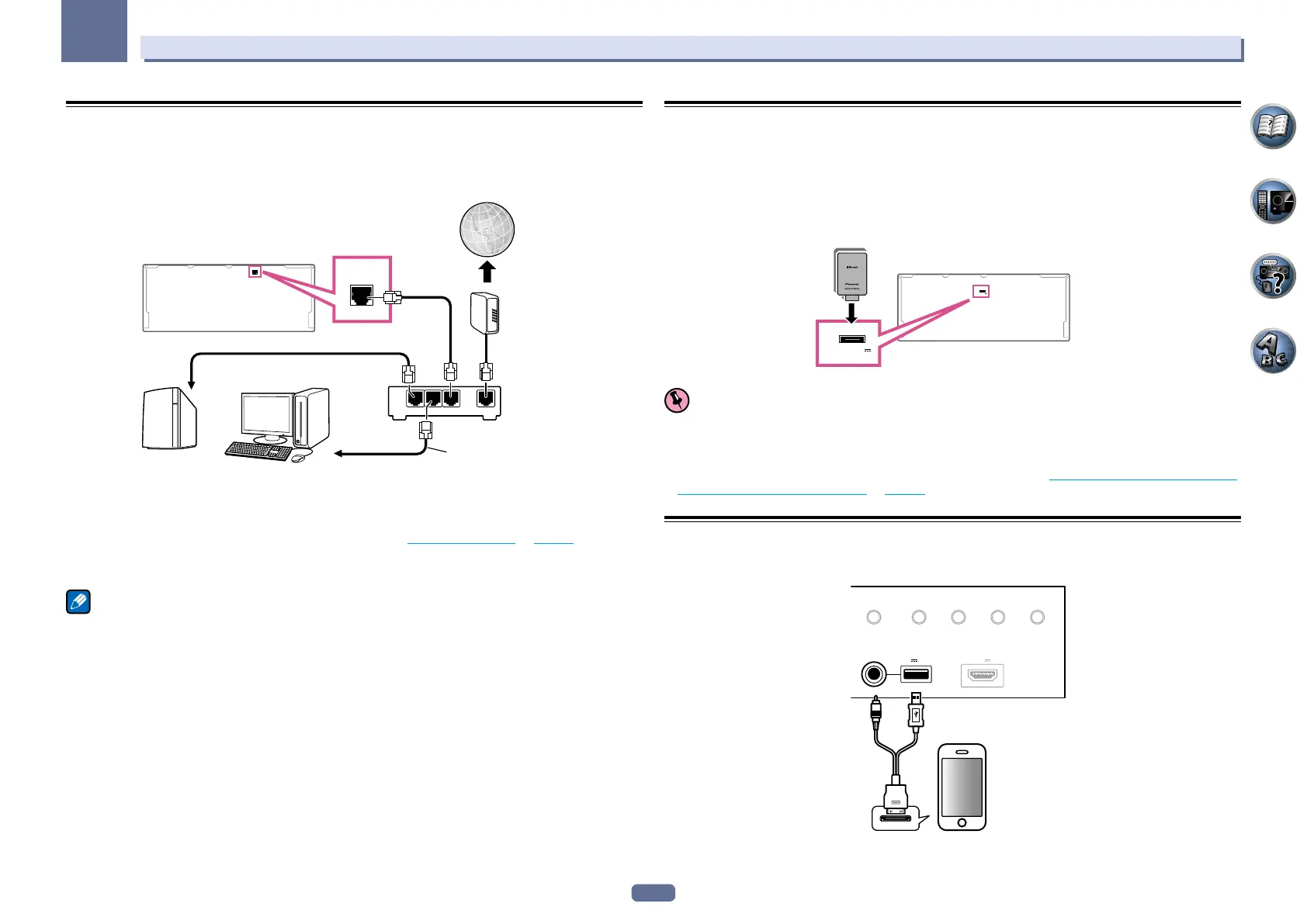

Connecting your equipment
Connecting to the network through LAN interface
By connecting this receiver to the network via the LAN terminal, you can listen to Internet radio stations. To listen
to Internet radio stations, you must sign a contract with an ISP (Internet Service Provider) beforehand.
When connected in this way, you can play audio files stored on the components on the local network, including
your computer.
LAN
(
10/100
)
LAN
(
10/100
)
WAN
321
LAN
Internet
Modem
Router
LAN cable (sold separately)
to LAN port
to LAN port
PC
NAS
Connect the LAN terminal on this receiver to the LAN terminal on your router (with or without the built-in DHCP
server function) with a straight LAN cable (CAT 5 or higher).
Turn on the DHCP server function of your router. In case your router does not have the built-in DHCP server func-
tion, it is necessary to set up the network manually. For details, see Network Setup menu on page 99.
LAN terminal specifications
! LAN terminal : Ethernet jack (10BASE-T/100BASE-TX)
Note
! Refer to the operation manual of the equipment you have as the connected equipment and connection method
may differ depending on your Internet environment.
! When using a broadband Internet connection, a contract with an Internet service provider is required. For
more details, contact your nearest Internet service provider.
Connecting optional Bluetooth ADAPTER
When the Bluetooth
®
ADAPTER (AS-BT100 or AS-BT200) is connected to this receiver, a product equipped with
Bluetooth wireless technology (portable cell phone, digital music player, etc.) can be used to listen to music
wirelessly.
! The Bluetooth wireless technology enabled device must support A2DP profiles.
! Pioneer does not guarantee proper connection and operation of this unit with all Bluetooth wireless technology
enabled devices.
! The Air Jam function cannot be used with the AS-BT100.
(
OUTPUT 5 V
0.1 A MAX
)
ADAPTER PORT
(
OUTPUT 5 V
0.1 A MAX
)
ADAPTER PORT
Bluetooth® ADAPTER
Important
! Do not move the receiver with the Bluetooth ADAPTER connected. Doing so could cause damage or faulty
contact.
% Switch the receiver into standby and connect Bluetooth ADAPTER to the ADAPTER PORT.
! For instructions on playing the Bluetooth wireless technology device, see Pairing the Bluetooth ADAPTER and
Bluetooth wireless technology device on page 55.
Connecting an iPod
This receiver has a dedicated iPod terminal that will allow you to control playback of audio content from your iPod
using the controls of this receiver.
USB HDMI 5 INPUT/
MHL ( )
iPod iPhone iPad
AUTO SURR/ALC/
STREAM DIRECT HOME THX BAND TUNER EDIT
iPod iPhone iPad
DIRECT CONTROL
5V 2.1
A 5V 1
A
iPod/iPhone/iPad
iPod cable
(supplied)
To Next Page
