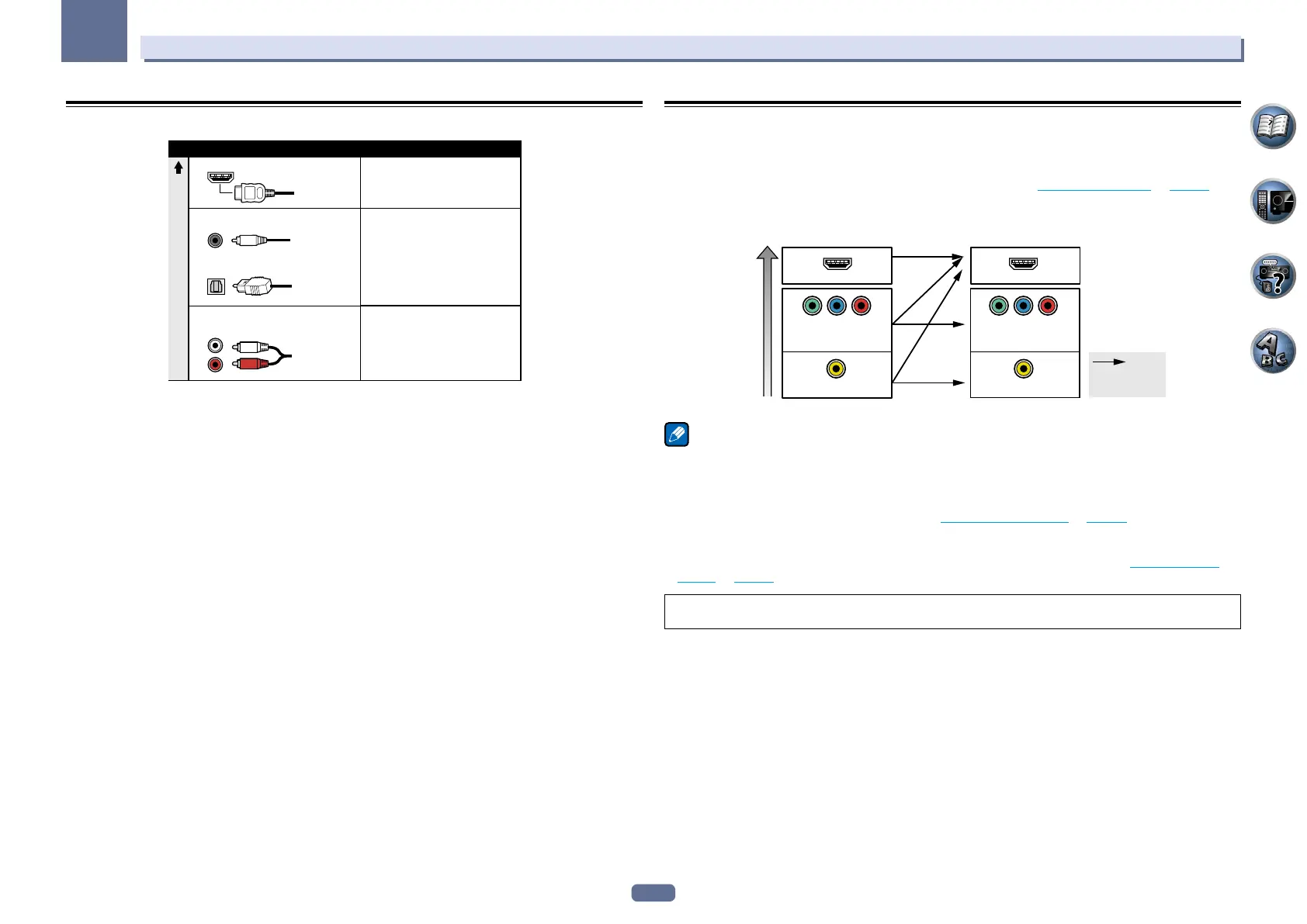

Connecting your equipment
About the audio connection
Transferable audio signals
Sound signal priority
HDMI HD audio
Digital (Coaxial)Conventional digital audio
RCA (Analog)
(White/Red)
Conventional analog audio
Digital (Optical)
Types of cables and terminals
! With an HDMI cable, video and audio signals can be transferred in high quality over a single cable.
About the video converter
The video converter ensures that all video sources are output through the HDMI OUT terminal.
If the TV is only connected to the receiver’s composite VIDEO MONITOR OUT jacks, all the other video devices
must be connected through composite connections.
If several video components are assigned to the same input function (see The Input Setup menu on page 47), the
converter gives priority to HDMI, component, then composite (in that order).
VIDEO IN
VIDEO
MONITOR OUT
COMPONENT
VIDEO IN
YPB PR
COMPONENT VIDEO
MONITOR OUT
YPB PR
HDMI IN HDMI OUT
High picture quality
Video signals
can be output
Terminal for connection
with source device
Terminal for connection
with TV monitor
Note
! The only exception is HDMI: since this resolution cannot be downsampled, you must connect your monitor/TV
to the receiver’s HDMI output when connecting this video source.
! If the video signal does not appear on your TV, try adjusting the resolution settings on your component or dis-
play. Note that some components (such as video game units) have resolutions that may not be converted. In
this case, try switching Digital Video Conversion (in Setting the Video options on page 75) OFF.
! The signal input resolutions that can be converted from the component video input for the HDMI output are
480i/576i, 480p/576p, 720p and 1080i. 1080p signals cannot be converted.
! For optimal video performance, THX recommends switching Digital Video Conversion (in Setting the Video
options on page 75) OFF.
This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property
rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Pioneer sc-lx86 Specifications

General

Receiver type	Surround
Output impedance	6 Ω
Speaker selector	A+B
Audio output channels	9.1 channels
Total Harmonic Distortion (THD)	1 %
Power output per channel (1KHz@6 Ohm)	190 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
AC (power) in	Yes
Remote (IR) input	1
Composite video in	4
Digital audio optical in	2
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	3
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Supported radio bands	AM, FM
Optical drive included	No
Display	-
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital Plus, Dolby Pro Logic, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS 96/24, DTS-ES, DTS-HD, DTS-HD Master Audio
Apple docking compatibility	iPad, iPhone, iPod
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FRE, ITA, RUS
Graphical user interface (GUI) language	English, French, German, Italian, Russian, Spanish
AC input voltage	230-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	370 W
THX-certified	THX Select2 Plus
Cables included	AC
