Pioneer SC-LX88 User Manual

22

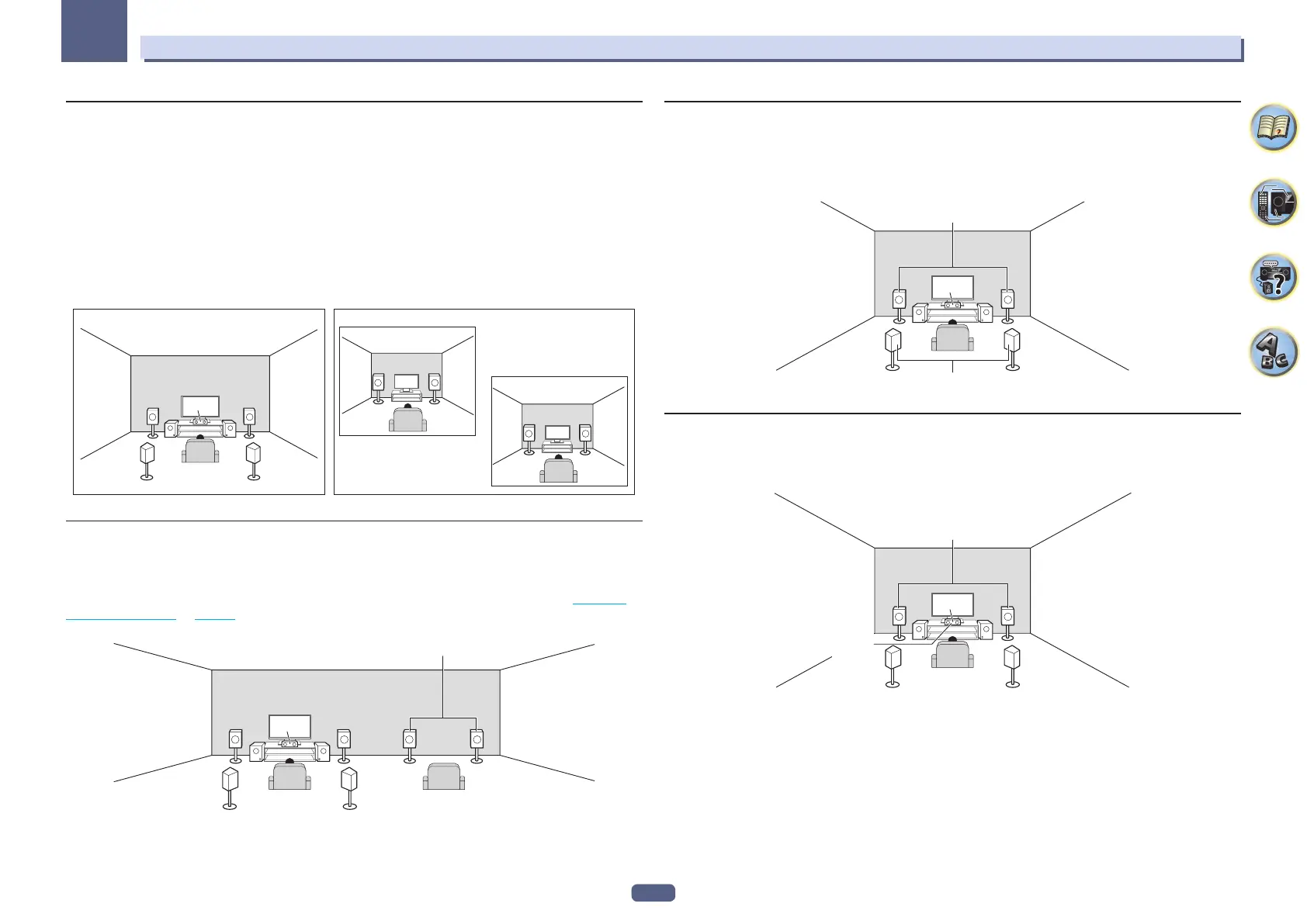

Connecting your equipment
03
[H-1] 5.2 channel surround system & ZONE 2/ZONE 3 connection (Multi Zone)
[H-2] 5.2 channel surround system & ZONE 2/HDZONE connection (Multi Zone)
[H-3] Multi-ZONE Music connection
! [H-1] Speaker System setting: 5.2 +ZONE 2+ZONE 3
! [H-2] Speaker System setting: 5.2 +ZONE 2+HDZONE
! [H-3] Speaker System setting: Multi-ZONE Music
With these connections you can simultaneously enjoy 5.2-channel surround sound in the main zone with stereo
playback on another component in ZONE 2, ZONE 3 and HDZONE. (The selection of input devices is limited.)
However, the 5.2 +ZONE 2+ZONE 3, 5.2 +ZONE 2+HDZONE and Multi-ZONE Music settings can be used sepa-
rately according to the situation. Normally set this to 5.2 +ZONE 2+ZONE 3 or 5.2 +ZONE 2+HDZONE and use
this for multi-zone/multi-source playback, and when using the system for home parties for example, set this to
Multi-ZONE Music to associate all zones with the main zone.
Main zone
ZONE 2
ZONE 3 or HDZONE
Sub zone
SRSL
SW2
C
SW1
LR
RL
RL
[I] 5.2 channel surround system & Speaker B Bi-amping connection
! Speaker System setting: 5.2ch + SP-B Bi-Amp
With these connections you can simultaneously enjoy 5.2-channel surround sound in the main zone with stereo
playback of the same sound on the B speakers. The B speakers can be bi-amped to achieve high quality sound.
The speakers from which sound is output can be switched using the OUT P. button. For details, see Switching
the speaker terminals on page 83 .
SRSL
R
SW2
C
SW1
L
LR
Speaker B Bi-Amp
[J] 5.2 channel surround system & Front and Surround Bi-amping connection
(High quality surround)
! Speaker System setting: 5.2ch F+Surr Bi-Amp
Bi-amping connection of the front and surround speakers for high sound quality with 5.2-channel surround
sound.
SRSL
SW2
C
SW1
LR
Front Bi-Amp
Surround Bi-Amp
[K] 5.2 channel surround system & Front and Center Bi-amping connection
(High quality surround)
! Speaker System setting: 5.2ch F+C Bi-Amp
Bi-amping connection of the front and center speakers for high sound quality with 5.2-channel surround sound.
LR
SRSL
SW2
C
SW1
Front Bi-Amp
Center
Bi-Amp

Pioneer SC-LX88 Specifications

General

Receiver type	Surround
Speaker selector	A+B
Input sensitivity	400 mV
4Ω speaker support	Yes
Audio output channels	9.2 channels
Audio A/D Converter (ADC)	24-bit/192kHz
Signal-to-Noise Ratio (SNR)	103 dB
Total Harmonic Distortion (THD)	1 %
Power output per channel (1KHz@6 Ohm)	220 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
USB ports quantity	3
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Multichannel audio output type	Terminals
Speakers connectivity type	-
Audio formats supported	AAC, AIFF, FLAC, M4A, MP3, WAV, WMA
Supported radio bands	AM, FM
Preset stations quantity	63
Optical drive included	No
Supported video modes	1080i, 1080p, 480p, 720p
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS Neo:X, DTS-ES, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FRE, ITA, RUS
AC input voltage	220-230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	370 W

Weight and Dimensions

Depth	441 mm
Width	435 mm
Height	185 mm
Weight	15300 g
