32
Connecting your equipment
03

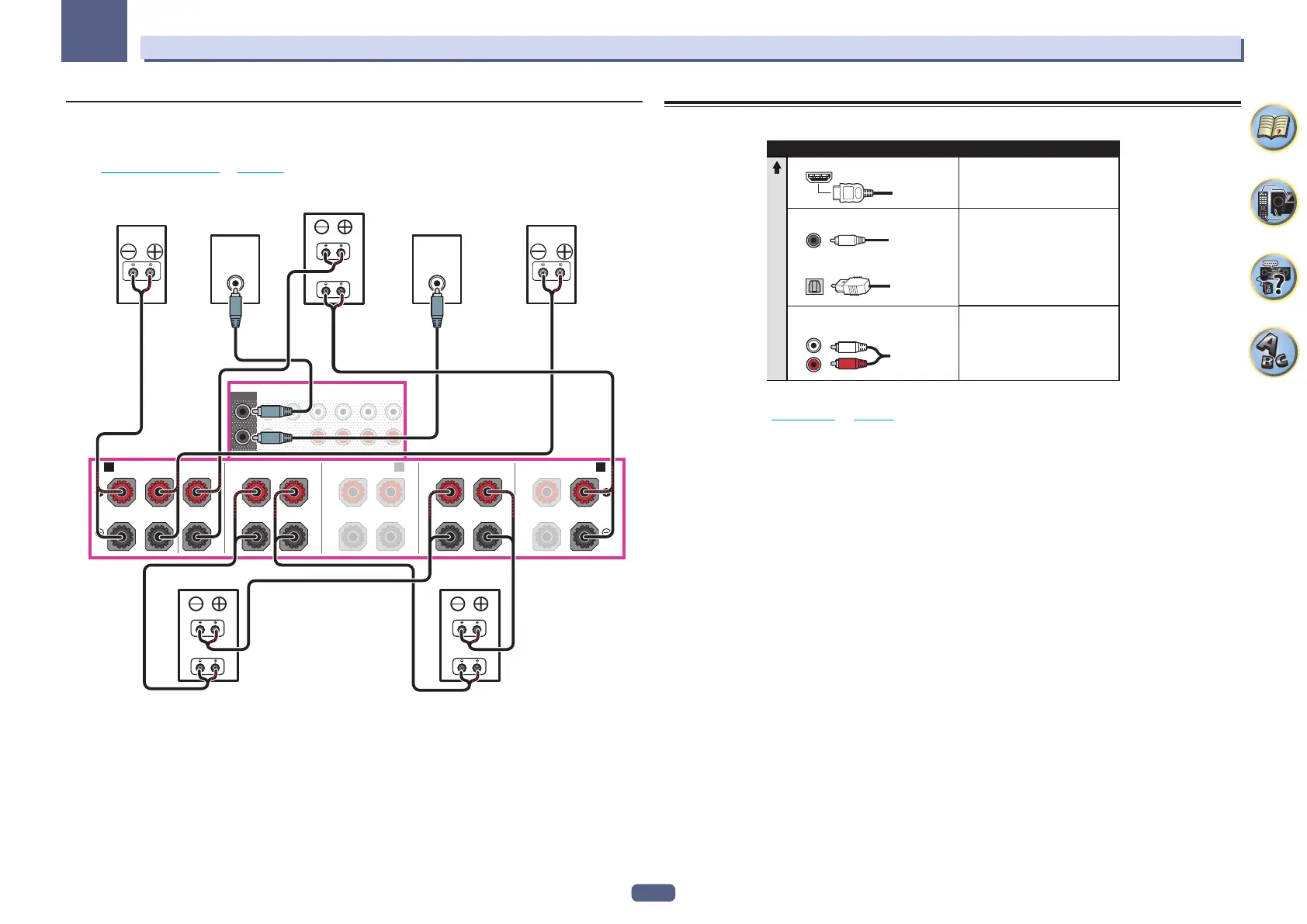

[L] 5.2 channel surround system & Center and Surround Bi-amping
connection (High quality surround)
! Select ‘5.2ch C+Surr Bi-Amp’ from the Speaker System menu.
See Speaker system setting on page 103 to do this.
PRE OUT
SURROUND SURR BACK
T.MIDDLE
(Single)
FRONTCENTER
SUBWOOFER
1
2
F WIDE
(Single)
FRONT CENTER
A AB
RL
SURROUND
RL
SURROUND BACK
R L
TOP MIDDLE
RL
FRONT WIDE /
RL
LINE LEVEL
INPUT
LINE LEVEL
INPUT
High
Low
High
Low
High
Low
Front left
Subwoofer 2Subwoofer 1
Bi-amp compatible speaker
Surround right
Bi-amp compatible speaker
Surround left
Front right
Bi-amp compatible speaker
Center
About the audio connection
Transferable audio signals
Sound signal priority
HDMI HD audio
Digital (Coaxial) Conventional digital audio
RCA (Analog)
(White/Red)
Conventional analog audio
Digital (Optical)
Types of cables and terminals
! With an HDMI cable, video and audio signals can be transferred in high quality over a single cable.
! For HD audio, see About HDMI on page 33 .
To Next Page
