SQF-3-3
Replacement
Adjustment
29 November 2006
3.1.3 INFEED COVER
[A]
Removal
1. Open Top cover
.
2. Remove nuts [A] (
x 4 ).
3. Remove nuts [B] and remove locking bracket (
x 2 ).
4. Tilt machine (
3.1.6 ).
5. Remove nuts [C] (
x 2 ).
Replacement
4. Reverse the removal procedure.
NOTE: Make sure that the springs to the Upper
Transport Belts are in correct
position.
[A]
[C]
COVERS
[B]

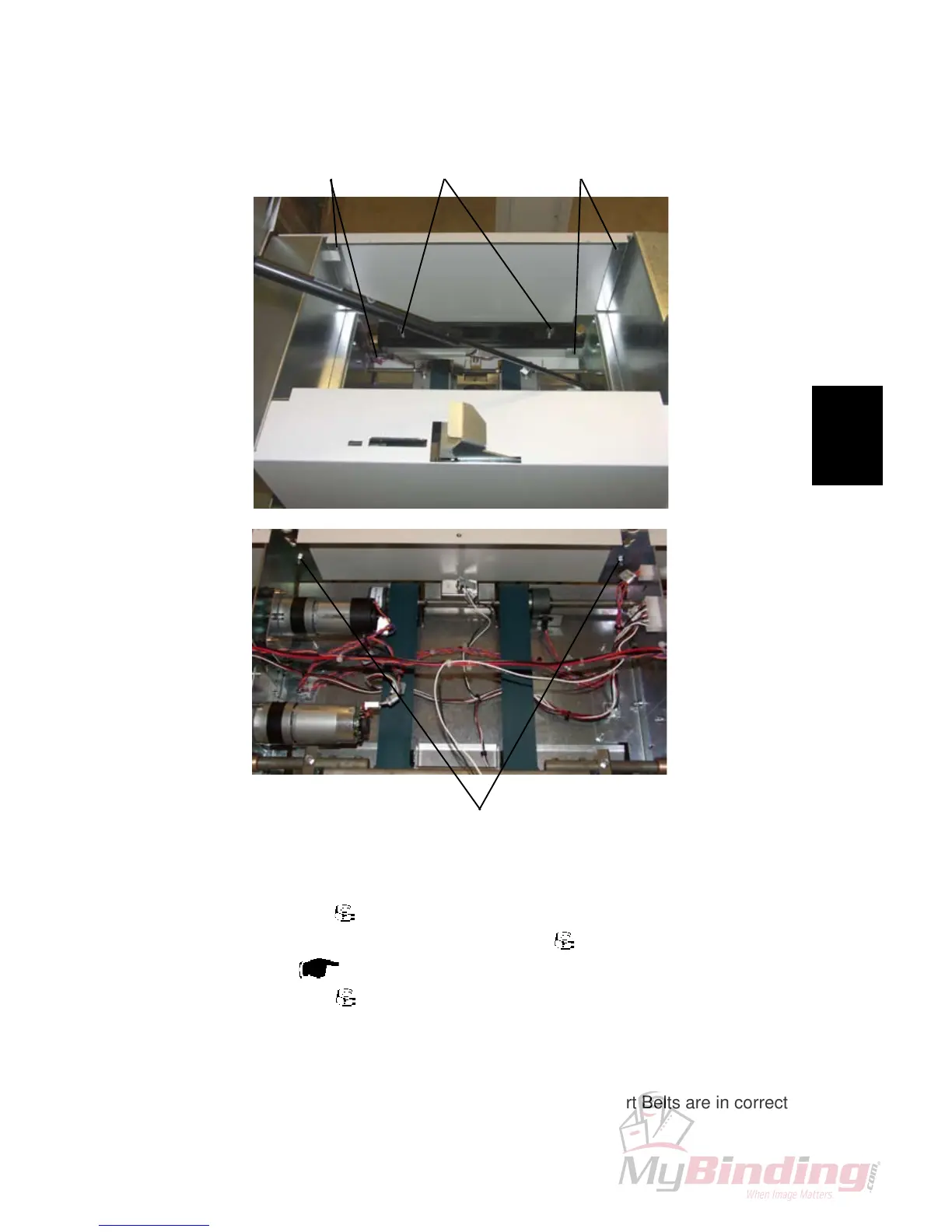

Bottom view
