Plockmatic SQF-200 SquareFolder User Manual

SQF-3-9
Replacement
Adjustment
29 November 2006
Removal

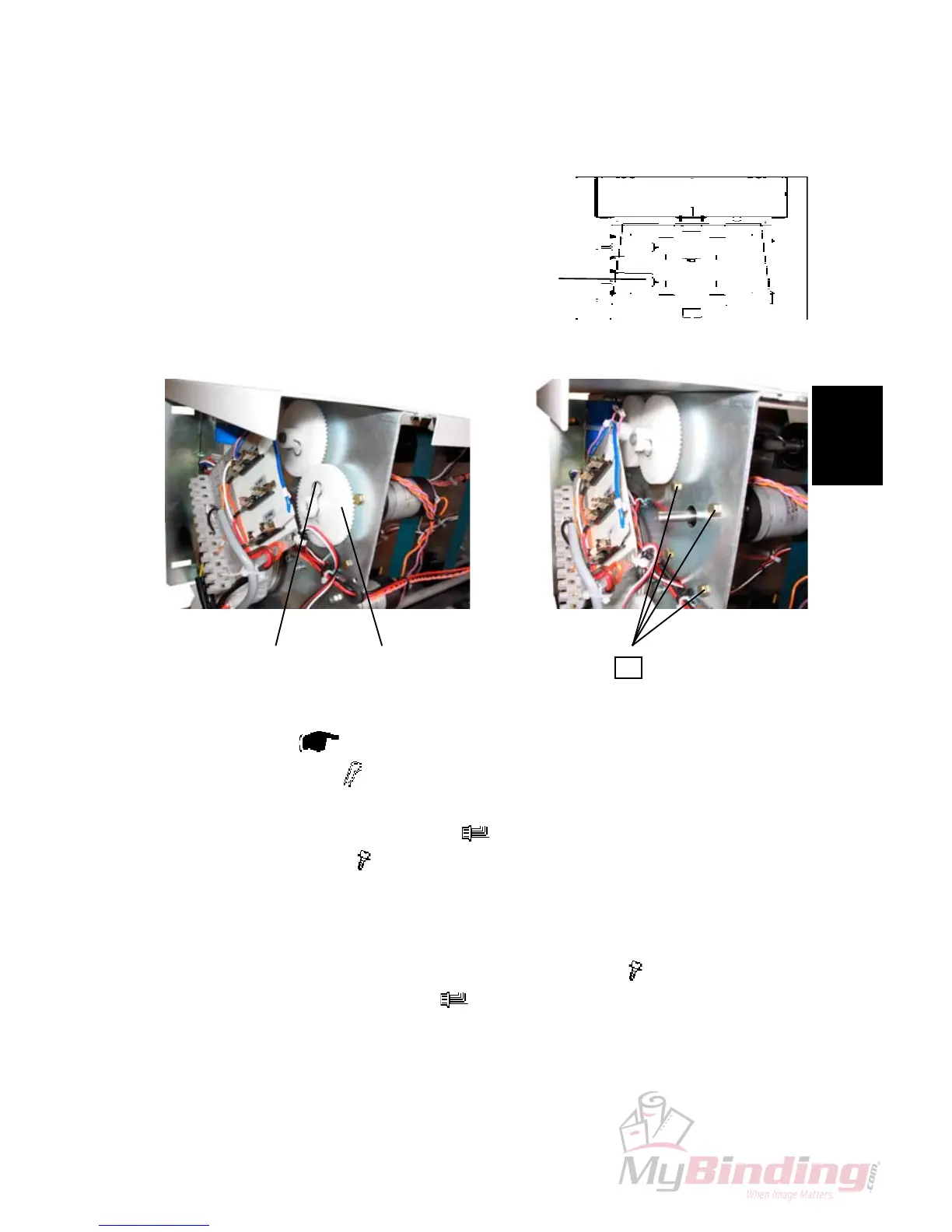

1. Tilt machine (
3.1.6).
2. Remove R-pin [A] ( x 1).
3. Remove sprocket [B].
4. Disconnect the motor connectors (
x 2) .
5. Remove screws [C] (
x 4).
6. Remove Motor.
Replacement
1.
Reinstall the motor
, and secure it by tighten screws [C] (
x 4).
2. Connect the motor connectors (
x 2) .
NOTE: The Orange wire on ”+”, and the Violet wire on ”-”.
3. Reverse the rest of the removal procedure.
3.2 MOTORS
3.2.1 TRANSPORT BELT MOTOR (M1)
MOTORS
M1
[C]
[A] [B]
