Plockmatic SQF-200 SquareFolder User Manual

SQF-3-31
Replacement
Adjustment
29 November 2006
MECHANICS
3.5 MECHANICS

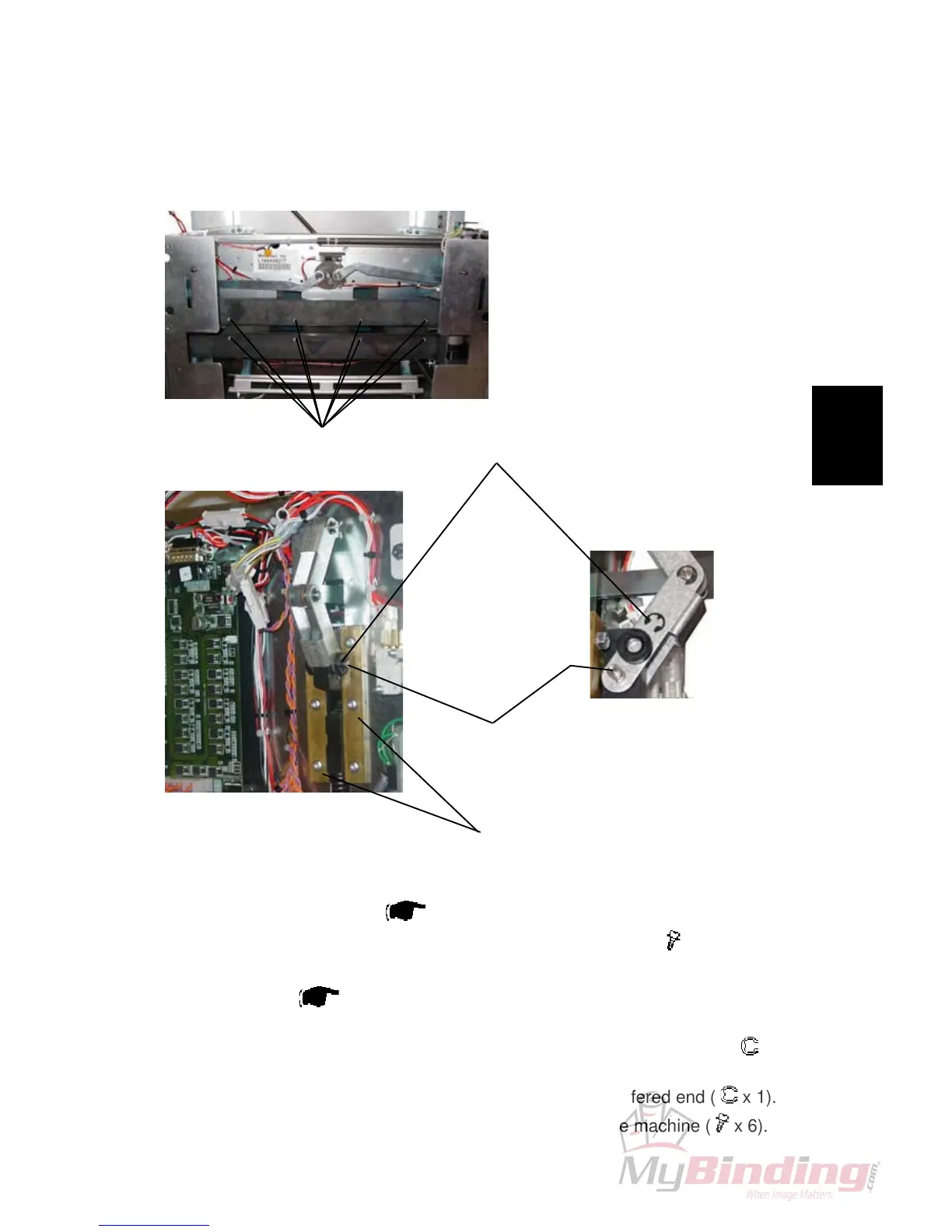

3.5.1 SET CLAMPS
[D]
[B]
Removal
1. Remove Outfeed cover (
3.1.4).
2. Remove allen screws [A] for upper and lower Paper Guides (
x 8).
3. Remove the upper and lower paper guide.
4. Tilt machine (
3.1.6).
5. Remove linkage shafts [B] holding the upper clamp on front side, by removing
E-clip [C] on the side of the linkage shafts which has a D-shaped end (
x 1).
6. Remove linkage shafts holding the upper clamp on rear side, by removing
E-clip on the side of the linkage shafts which has a chamfered end (
x 1).
7. Remove the two brass guides [D] on the PCB side of the machine (
x 6).
[C][A]
Outfeed view
Rear view
