Plockmatic SQF-200 SquareFolder User Manual

SQF-3-25
Replacement
Adjustment
29 November 2006
3.4 BELTS

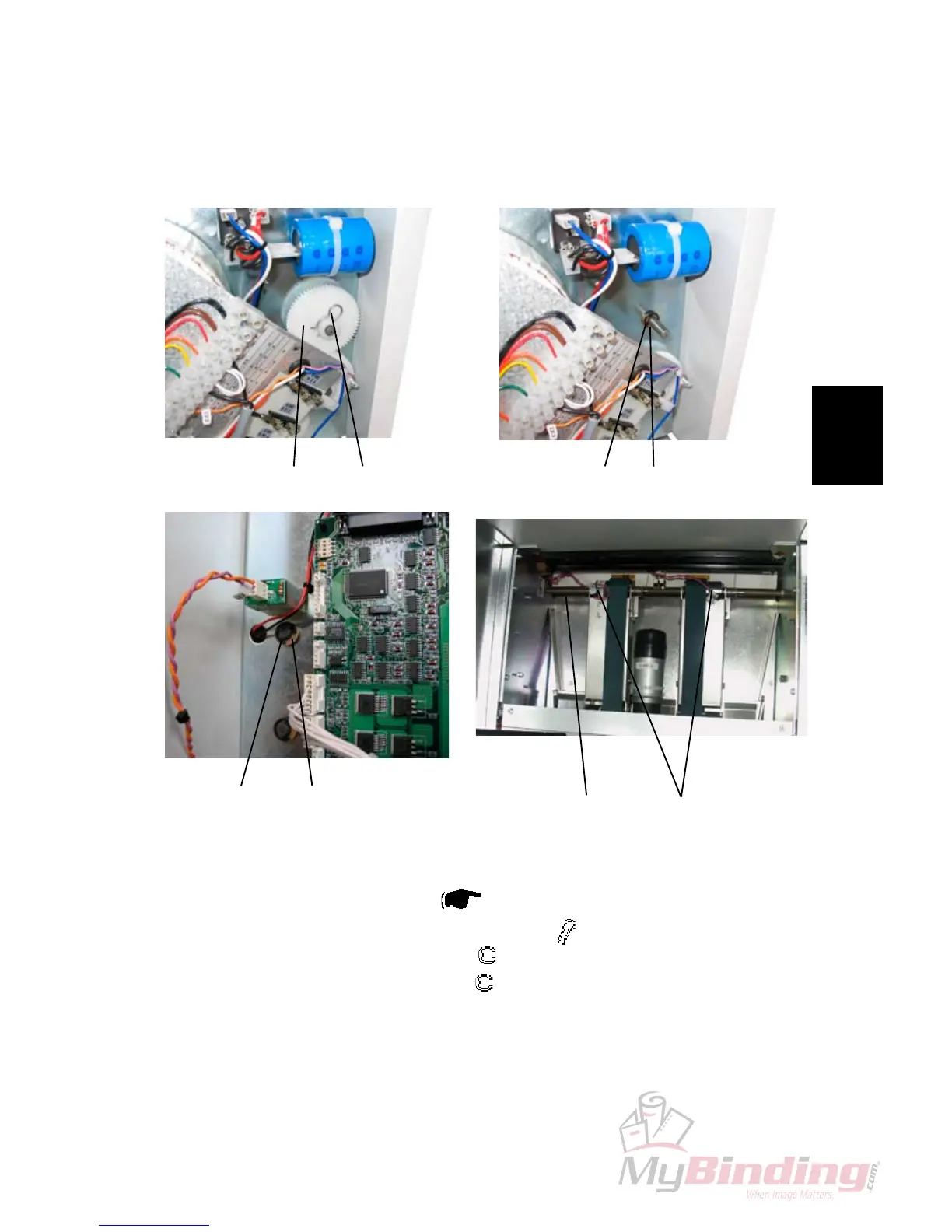

3.4.1 UPPER TRANSPORT BELT
Removal
1. Remove Front and Rear cover (
3.1.1, 3.1.2 ).
2. Remove R-pin [A] and remove upper gear [B] (
x 1).
3. Remove E-Clip [C] and bushing [D] (
x1).
4. Remove E-Clip [E] and bushing [F] (
x1).
5. Disconnect clutches [H].
6. Move the shaft towards the transformer. Lift up rear end of shaft [G] and
remove shaft.
BELTS
[A][B] [C] [D]
[E] [F]
[F] [G]
Rear view
Front view
Front view
Top view
[H]
