SQF-3-26

29 November 2006

BELTS

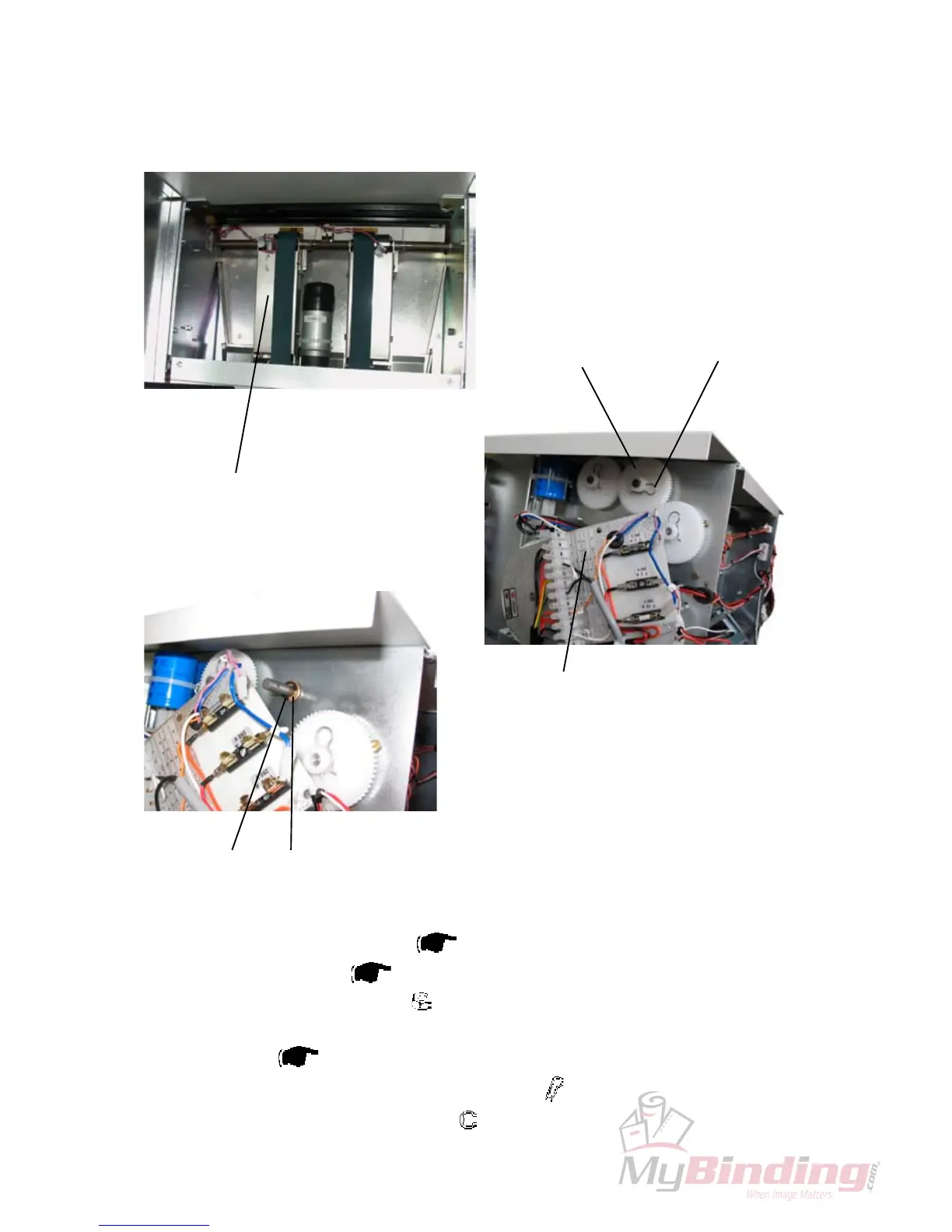

3.4.2 LOWER TRANSPORT BELT

Removal

1. Remove Upper Transport Belt (

3.4.1).

2. Remove Infeed cover (

3.1.3).

3. Loosen nut [A] to transformer (

x 1).

4. Rotate the Fuse plate CW [B].

5. Tilt machine (

3.1.6).

6. Remove R-pin [C] and remove middle gear [D] ( x 1).

7. Remove E-Clip [E], and bushing [F] (

x 1) .

[A]

[B]

[C] [D]

[C]

[D]

Front view

Top view
