SQF-3-15

Replacement

Adjustment

29 November 2006

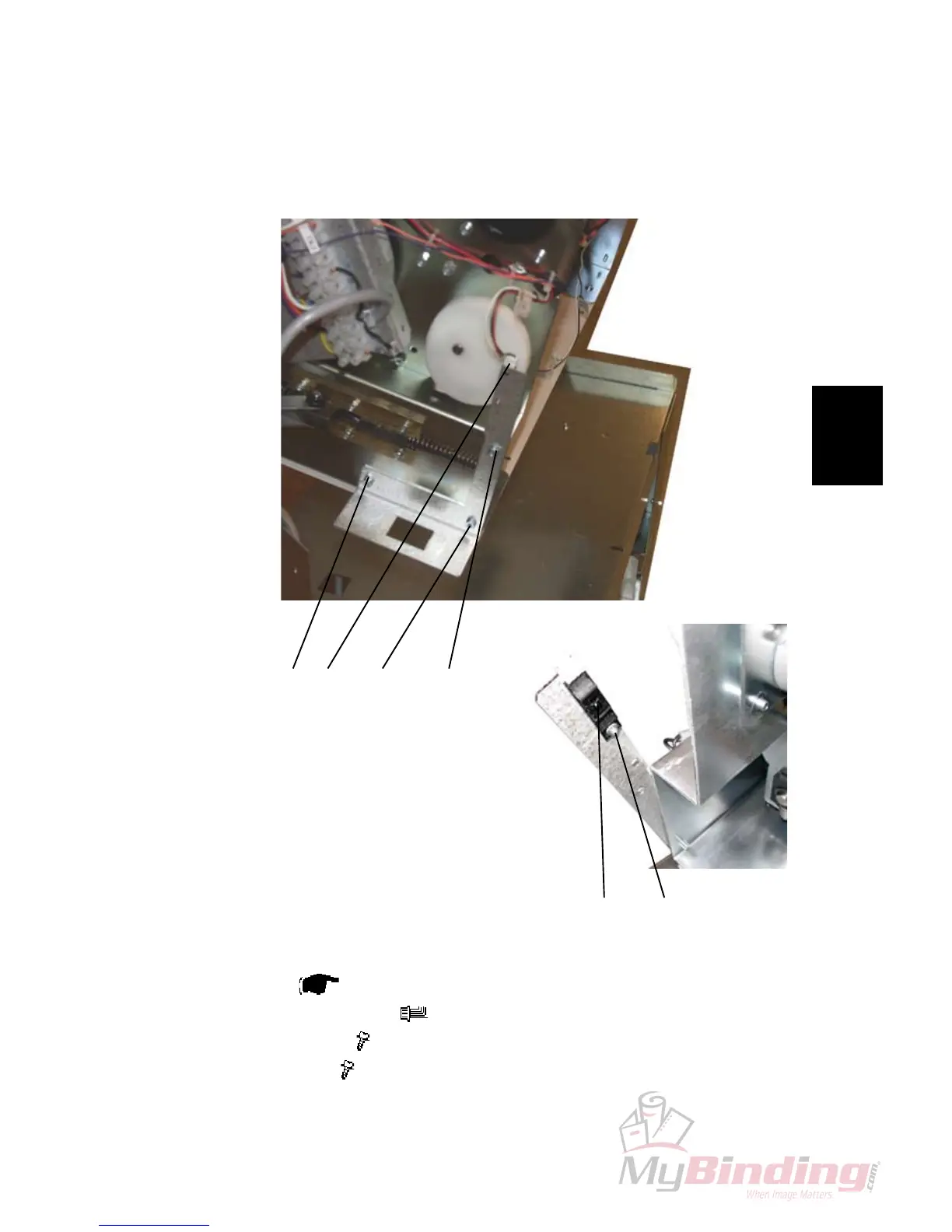

Removal

1. Tilt machine (

3.1.6).

2. Disconnect connector [A] (

x 1).

3. Remove screws [B] (

x 2).

3. Loosen screw [C] (

x 1).

4. Remove screw [D] and sensor [E].

SENSORS AND SWITCHES

3.3 SENSORS AND SWITCHES

3.3.1 STOP GATE SENSOR (Q1)

[C][A][B] [B]

[D][E]

Front view,

machine tilted
