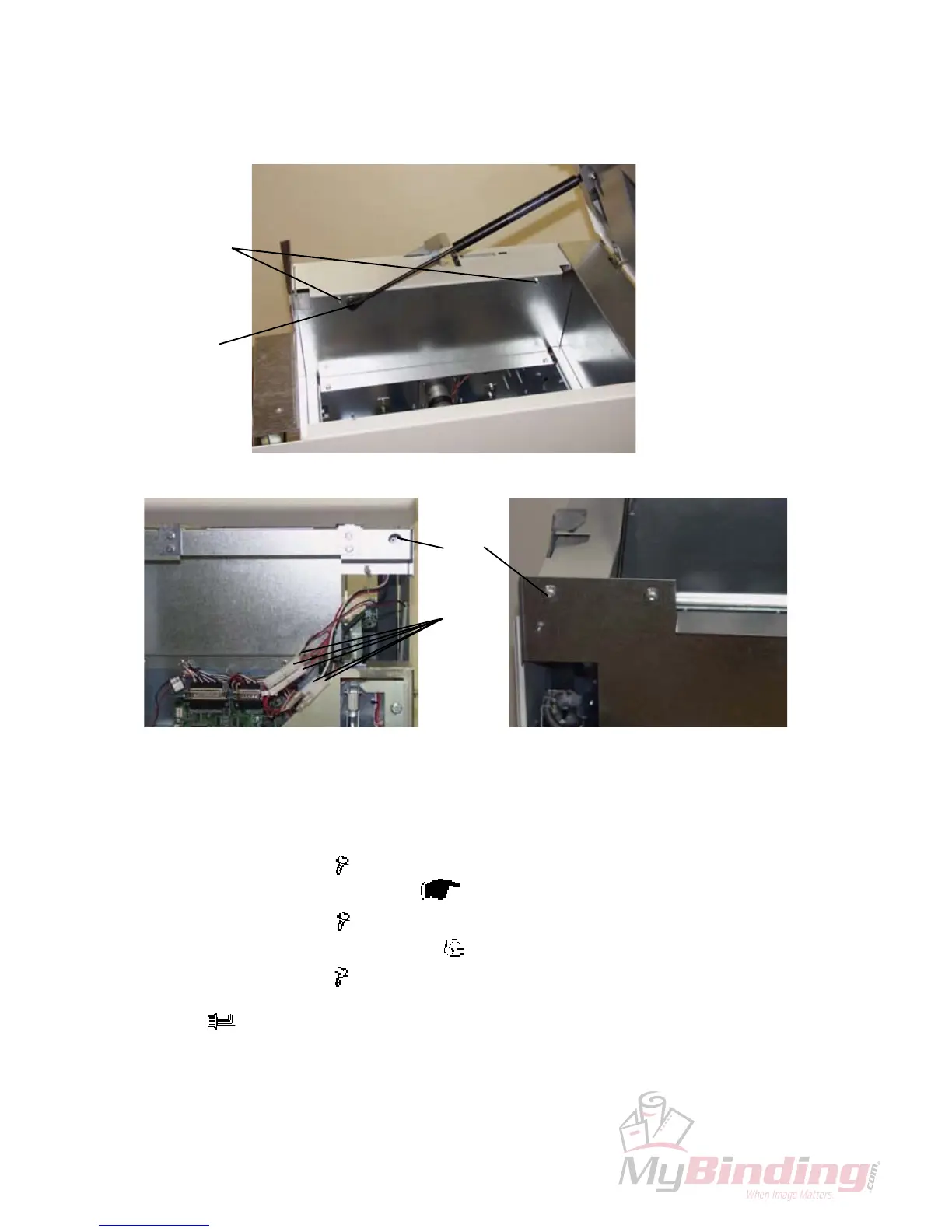

3.1.4 OUTFEED COVER

COVERS

[A]

Removal

1. Remove Top cover gas spring lower end from joint [A].

NOTE: Press plastic stud from pivot point.

Remove screws [B] (

x 2).

3. Remove Front and Rear cover (

3.1.1, 3.1.2 ).

4. Remove screws [C] (

x 2).

5. Remove Belt Stacker hangers [E] (

x 2).

6. Remove screws [F] (

x 4).

7. Lift Out feed cover carefully and disconnect wiring to sensor Q7 Phototransistor

[G] (

x 1).

[C]

[B]

Front view

Rear view

[D]
