Plockmatic SQF-200 SquareFolder User Manual

SQF-4-15
Trouble-
shooting
12 February 2007

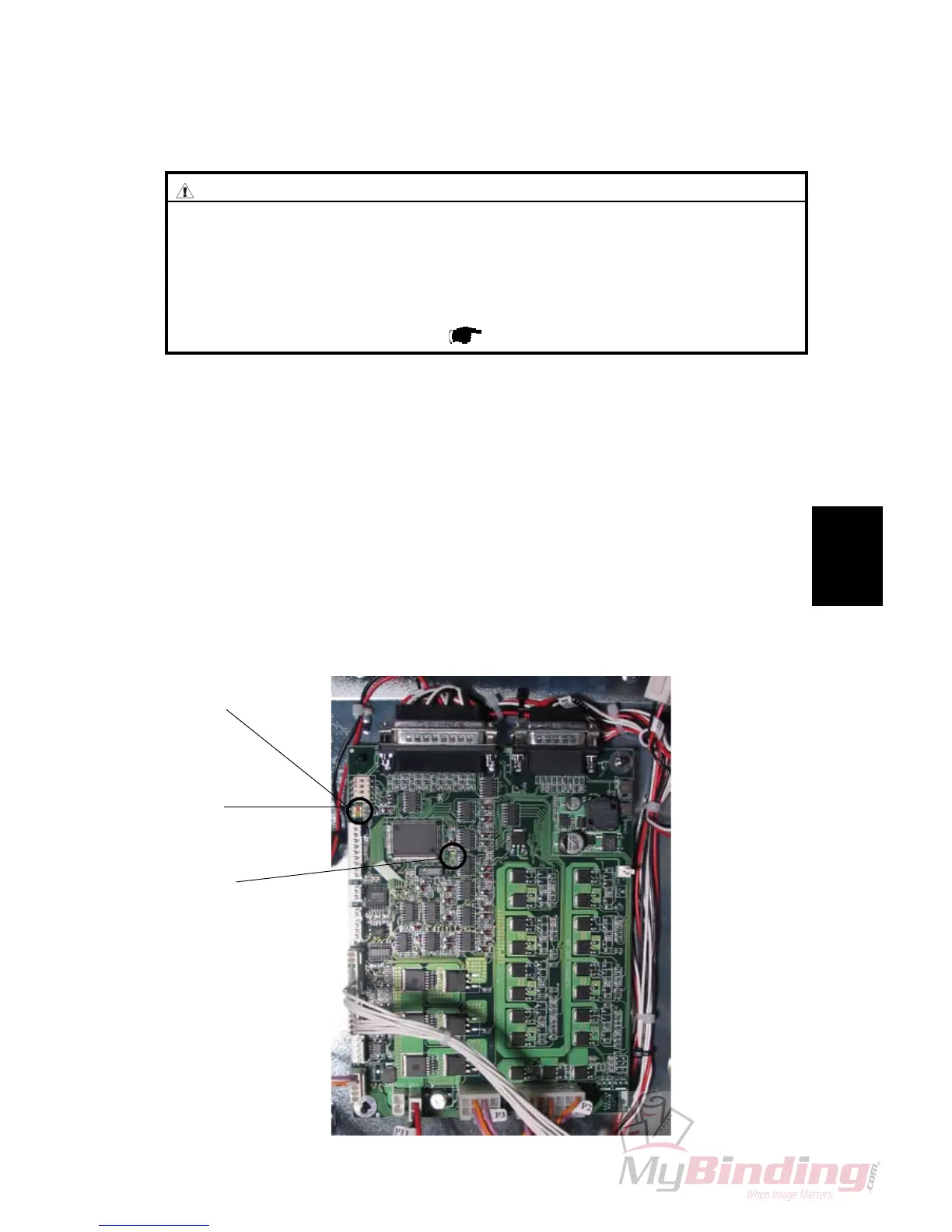

4.3 LED’S
D1:YellowLEDasheswhenpowerison.Theashingindicatesthataprogramis
present and functioning. Should a download fail or the 5V be missing, LED would
be OFF.
D2:RedLEDasheswheneverinformationissentorreceivedontheInternalCAN
(Central area network). If power is switched on but no operations are performed,
LED is OFF.
D15:GreenLEDpermanentlyOFF.Ithasnodirectfunctioninthisconguration.
LED’S
D1
D2
D15
CAUTION
ESD Hazard! ESD (Electrostatic Discharge) can cause software crashes,
data and/or communications problems. Failure to use proper ESD pro-
cedures will cause damage to electronic components (example: PCBs).
ESD problems can be minimized by maintaining all machine ground con-
nections, ensuring the proper handling of circuit boards and sensors. Use
ESD protection when working near PCBs. Failure to use ESD protection is
likely to result in a PCB failure ( Service Manual BM 200 3.1 ).
