5.12
BODY / STEERING / SUSPENSION
BODY COMPONENT REMOVAL

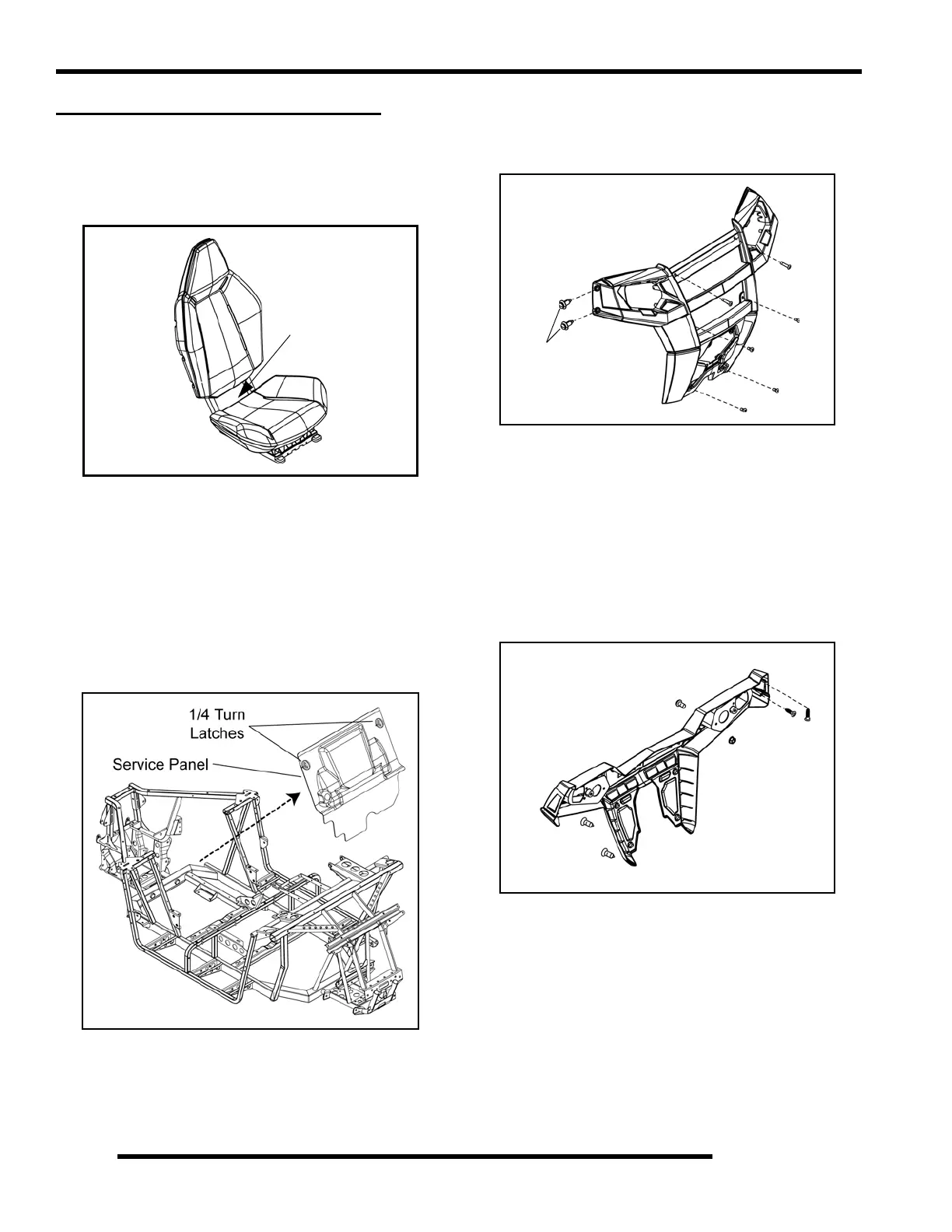

Seats
1. To remove the driver or passenger seat, lift upward on the
latch lever located behind the seat bottom.
2. Lift upward and forward on the seat while lifting up on the
latch lever and remove the seat from the vehicle.
Rear Service Panel
1. Remove driver and passenger seats.
2. To remove the service panel, turn both latches to disengage
the panel. Lift the panel upward and towards the front of
the vehicle to remove it.
Front Bumper
1. Remove the (4) push rivets from the sides of the front
bumper.
2. Remove the (6) Torx screws retaining the upper, middle
and lower portion of the bumper.
3. Disconnect the front head lamp connectors and remove the
front bumper from the vehicle.
Rear Bumper
1. Remove the (4) Torx screws retaining the upper portion of
the rear bumper to the cargo box.
2. Remove the (4) Torx screws retaining the lower portion of
the rear bumper to the frame.
3. Remove the (2) fasteners retaining the middle portion of the
rear bumper to the cargo box.
Latch
Lever
Push
Rivets
Torx
Screws
