Toe Adjustment
If toe alignment is incorrect, measure the distance between
vehicle center and each wheel. This will tell you which tie rod
needs adjusting.
NOTE: Be sure steering wheel is straight ahead
before determining which tie rod(s) need
adjustment.
To adjust toe alignment:
• Hold tie rod end to keep it from rotating.
• Loosen jam nuts at both ends of the tie rod.
• Shorten or lengthen the tie rod until alignment is as
required to achieve the proper toe setting as specified in
Toe Alignment Inspection.
• IMPORTANT: When tightening the tie rod end jam
nuts, the rod ends must be held parallel to prevent rod
end damage and premature wear. Damage may not be
immediately apparent if done incorrectly.
• After alignment is complete, torque jam nuts to
specification.
SUSPENSION (RZR)

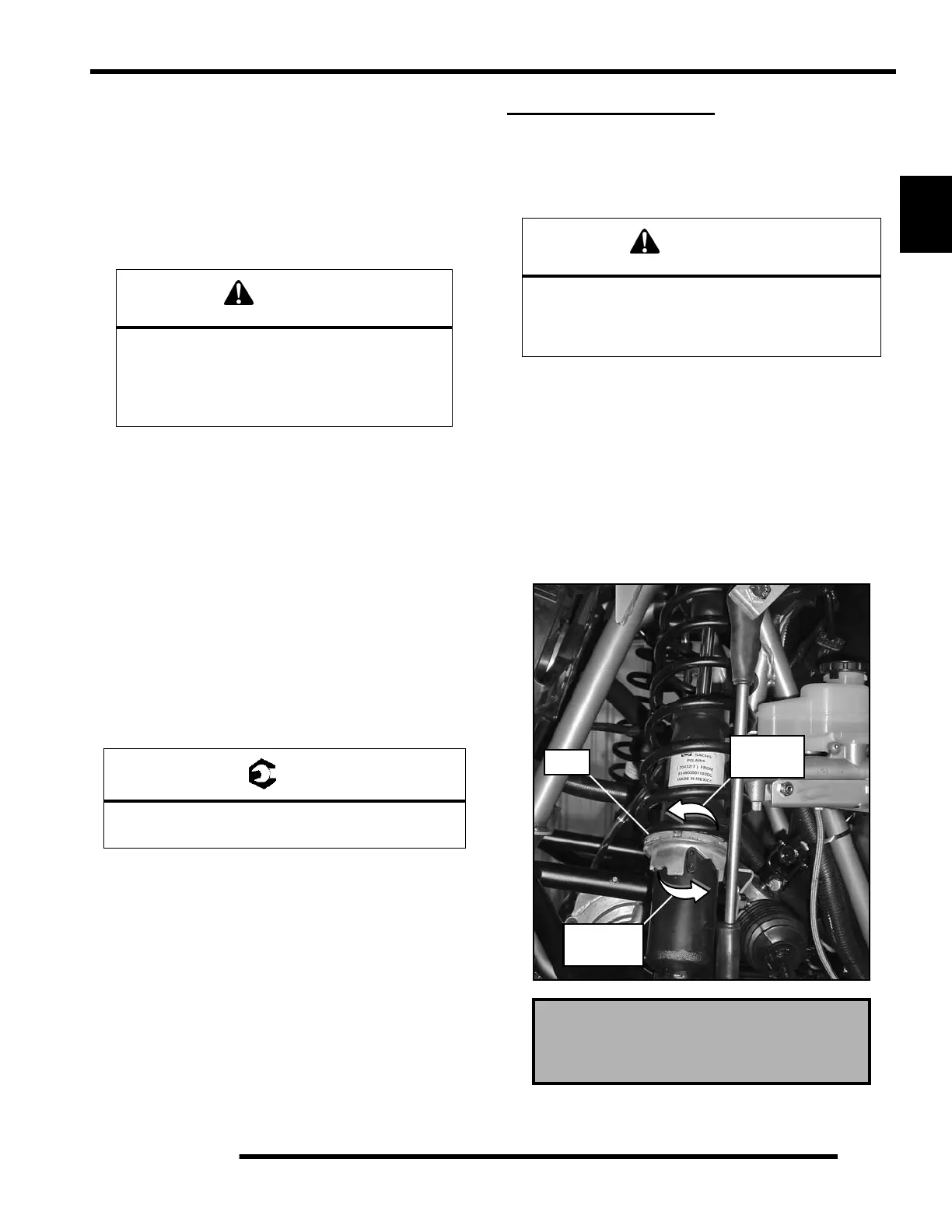

Spring Preload Adjustment
The front and rear shock absorber springs are adjustable by
rotating the adjustment cam to change spring tension preload.
Suspension Spring Adjustment
1. Position the vehicle on a level surface and stop the engine.
2. Raise and safely support the front or rear of the vehicle off
the ground to allow the suspension to fully extend.
NOTE: The tires should not be touching the ground.
3. To adjust the suspension, rotate the adjustment cam
clockwise to increase spring tension or counter-clockwise
to decrease spring tension.
4. Each notch of the adjustment will add 6% - 8% more
preload to the spring over the primary position.
CAUTION
During tie rod adjustment, it is very important that
the following precautions be taken when
tightening tie rod end jam nuts.
If the rod end is positioned incorrectly it will not
pivot, and may break.
= T
Tie Rod Jam Nut Torque:
12-14 ft. lbs. (16-19 Nm)
WARNING
Uneven adjustment may cause poor handling of the
vehicle, which could result in an accident and
serious injury or death. Always adjust both the left
and right spring preloads equally.
Shock Spanner Wrench
(PN 2870872)
Increase
Preload
Decrease
Preload
Cam
