ASSEMBLY NOTES
Fuel Pump Nut Torque: 36 -- 44 ft.lbs. (50 -- 61 Nm)
Fuel Filler Nut Torque: 10 -- 15 ft.lbs. (14 -- 20 Nm)
Large Worm Gear Clamp Torque: 35 in.lbs. (4 Nm)
Verify tank pad is installed.
Replace tank hold--down straps if worn or damaged.
FUEL PUMP LOCKING NUT
FUEL PUMP
ORING
HOLD--DOWN STRAPS
FUEL TANK PROTECTIVE PAD
FUEL CAP
CAP RETAINER
FUEL CAP LOCKNUT
FUEL INJECTION / IGNITION / EXHAUST SYSTEMS
5.6
2004 Four Stroke PWC Service Manual

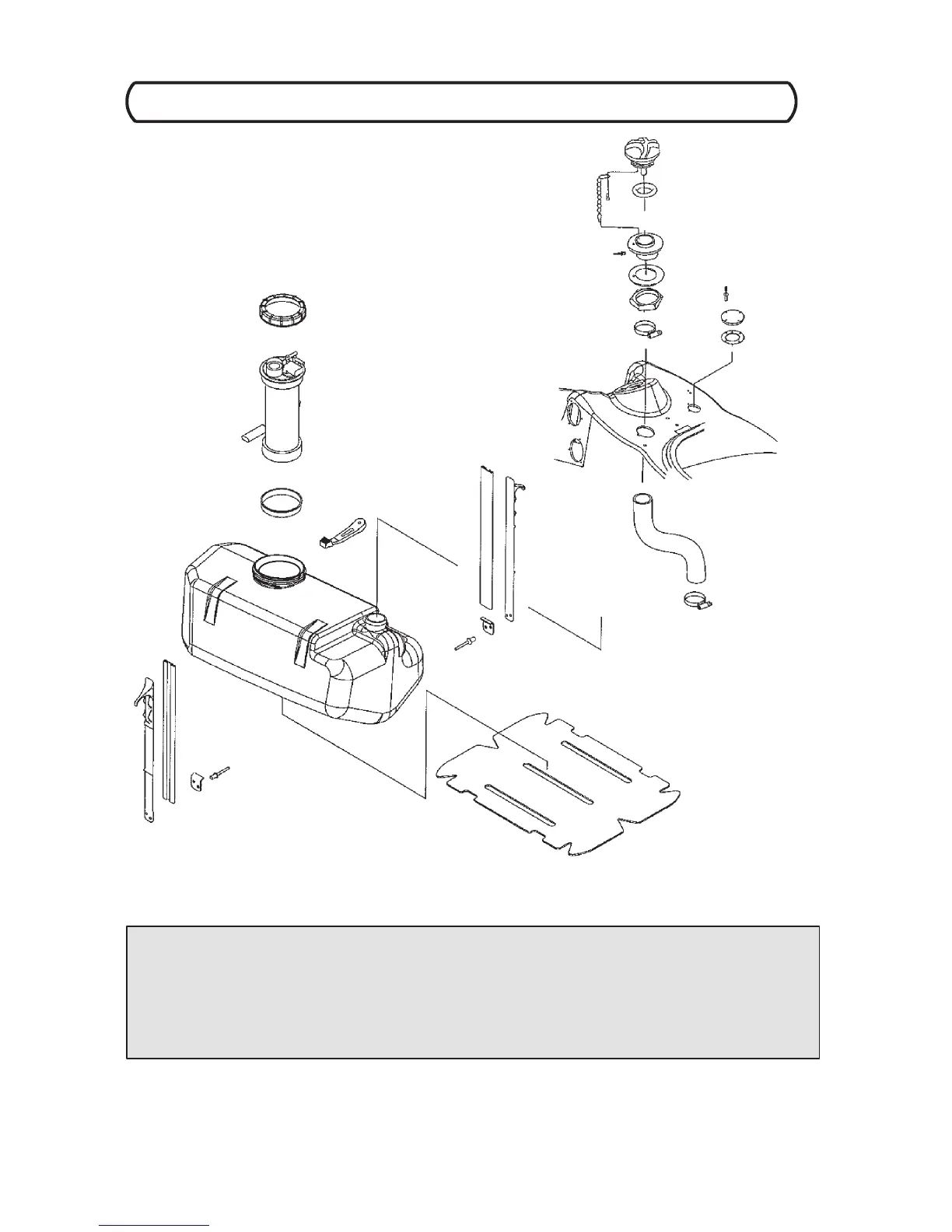

Fuel Tank Assembly
