Impeller Removal Tool
has 3 knurled sections
Impeller Tool Diameter:
.852″ (21.65mm)
PROPULSION
6.12
2004 Four Stroke PWC Service Manual

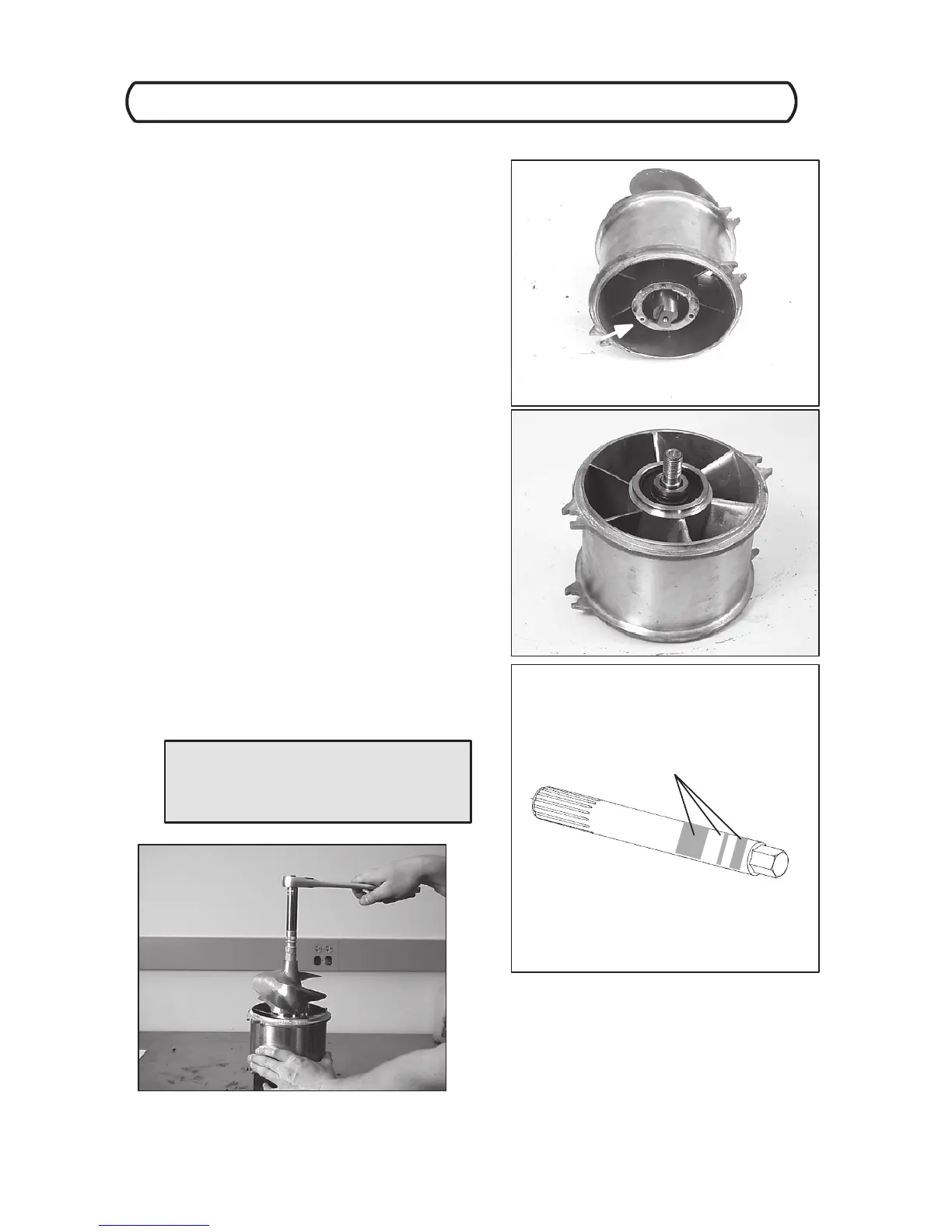

Stator Disassembly
1. Remove tail cone screws (3) and tail cone. Inspect
O--ring seal located behind tail cone. Replace seal if
damage is evident.
NOTE:
When removing tail cone, hold stator with cone pointed
down. Twist cone off. This will allow any water from enter-
ing the impeller assembly. It is normal for a small amount
of water to be inside the cone during operation.
2. Mount stub shaft flat surfaces in a vise to prevent the
impeller and stator from rotating.
3. Install impeller removal tool and turn counterclockwise
to remove. The impeller removal tool can be identified
by (3) knurled sections on the shaft.
Impeller Removal Tool
PN 2871036
