9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
2.23

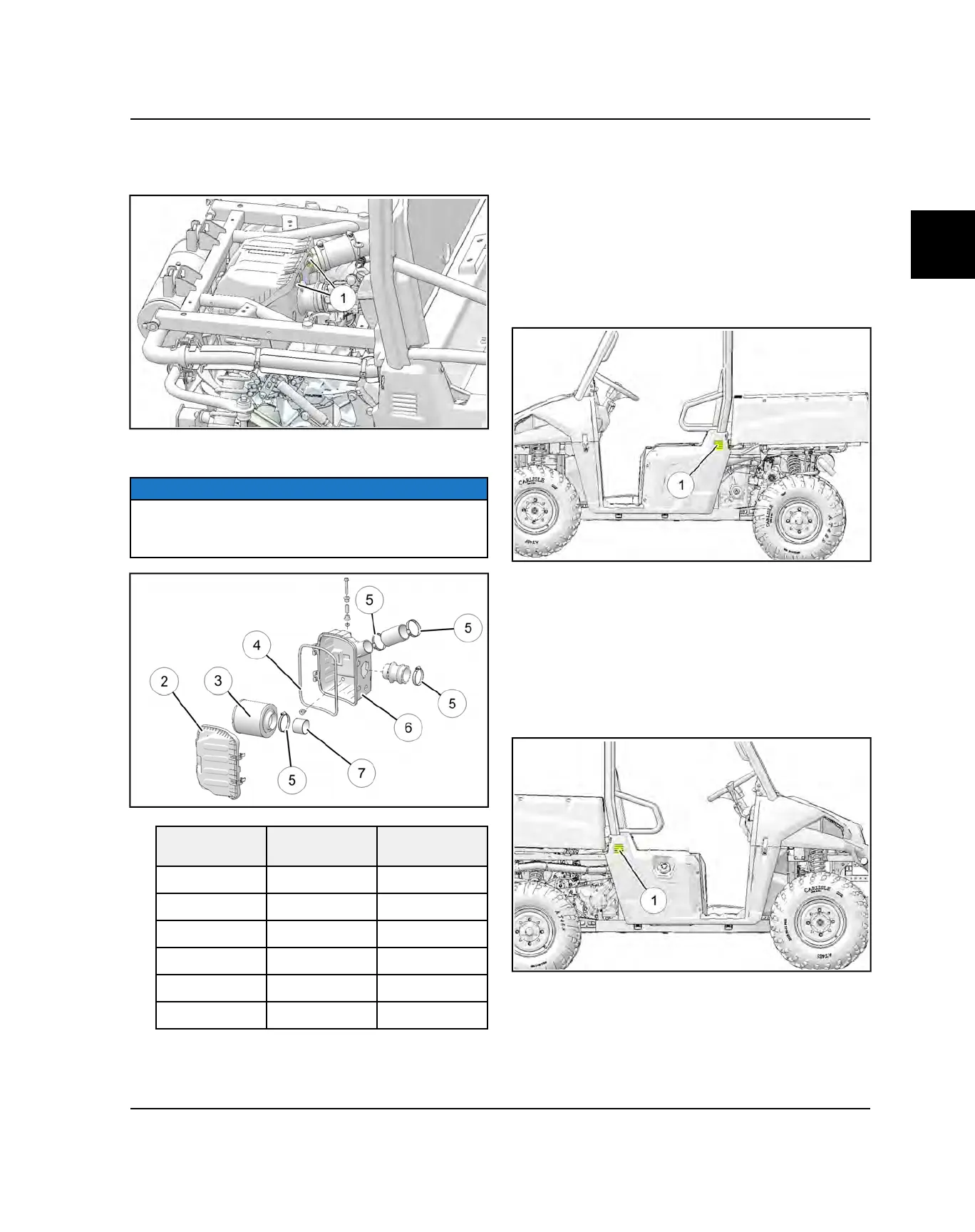

2. Unhook the two clips
q
from airbox cover and
remove cover. Inspect the cover seal. It should
adhere tightly to the cover.
3. Remove the air filter assembly. Inspect the air filter
and replace if necessary.
NOTICE
If the filter has been soaked with fuel or oil it must be
replaced. Do not attempt to wash the air filter. If
cleaning is required, replace the filter.
REF.
DESCRIP-
TION
NOTES
w
Cover
e
Filter
r
Seal
t
Clamp
y
Airbox
u
Boot
Installation
4. Clean airbox of any oil or water deposits and apply a
small amount of grease to the sealing surfaces of the
filter.
5. Reinstall the air filter into the airbox container. Be
sure the filter fits tightly in the air box and engage the
(2) clips.
ENGINE AIR INTAKE INSPECTION
1. Remove the cover from the outer side of the seat
base
q
and remove the pre-filter element.
2. If the pre-filter element is dirty, clean it with hot,
soapy water. Rinse and dry the filter element
thoroughly. Inspect element for tears or damage.
Replace if necessary.
3. Reinstall the pre-filter element into the seat frame
and install the cover.
PVT AIR INTAKE INSPECTION
1. Remove the PVT intake cover
q
.
2. Verify there is no debris obstructing the airway.
3. Reinstall the cover.
MAINTENANCE
