TAIL LIGHT / BRAKE LIGHT
LED LAMP REPLACEMENT

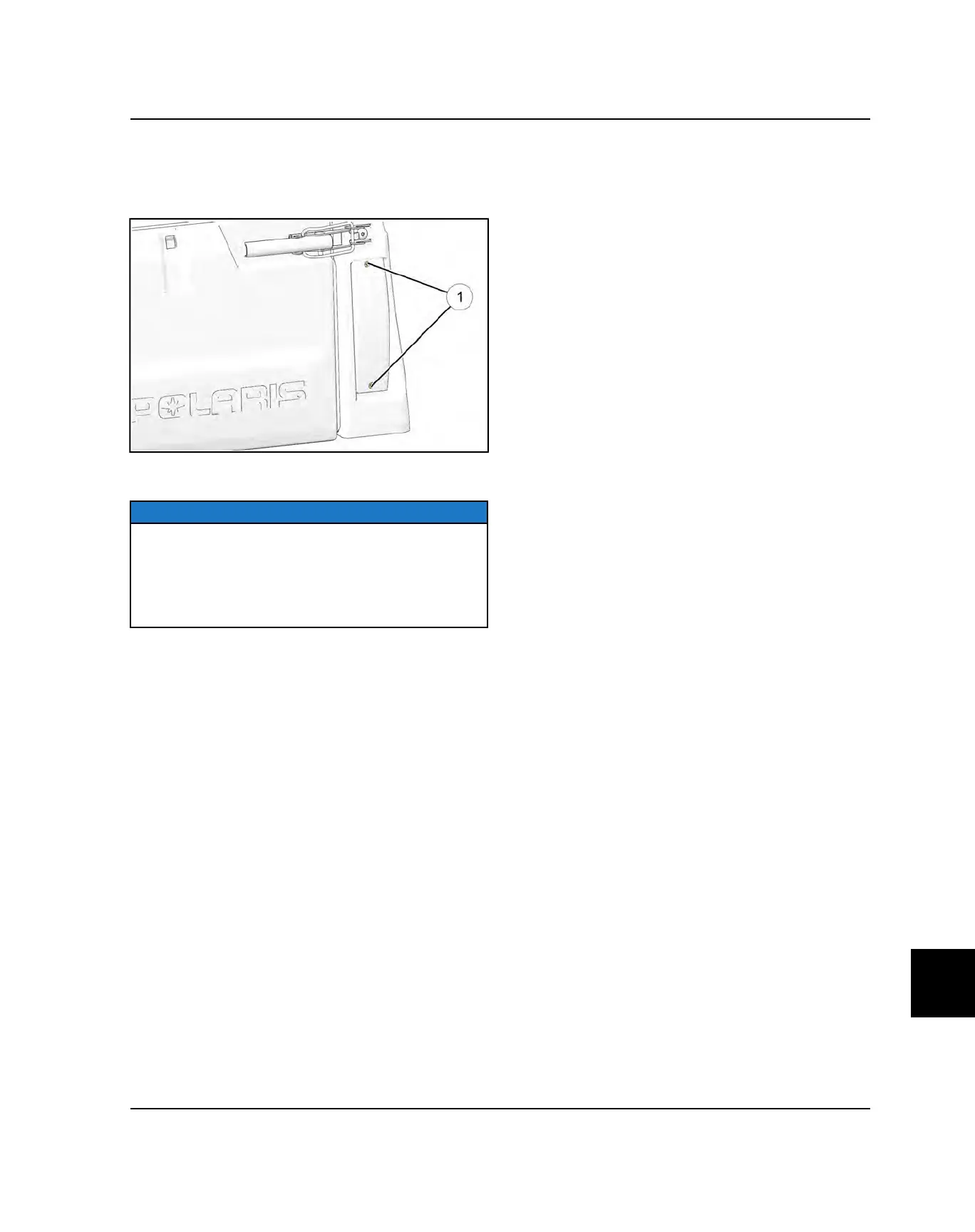

1. From the rear of the LED lamp, remove the (2) T20
Torx-head screws
q
retaining the lamp assembly.
2. Remove the lamp from the cargo box and disconnect
the tail light / brake light wire harness.
NOTICE
Before replacing the LED lamp assembly, use a digital
multi-meter to test the harness to ensure the lamp is
receiving 12-14 DC volts and that a ground path is
present. Lamps can be bench tested by applying 12-14
volts directly, as the LED tail/brake lamp units are
internally regulated.
3. If the LED lamp does not function with power and
ground applied to the lamp directly, replace the lamp
assembly. Apply dielectric grease (PN 2871329) to
the new lamp connector terminals.
4. Reinstall the assembly by reversing this procedure.
5. Test after installation to verify proper function of tail,
brake, and turn signal lamps.
