11
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
11.17
HOOD / DASH
1. Hood Removal - Unlatch the hood and disconnect
the head lamp harnesses. Remove the two clips and
pivot pins retaining the hood and remove the hood
from the bumper.

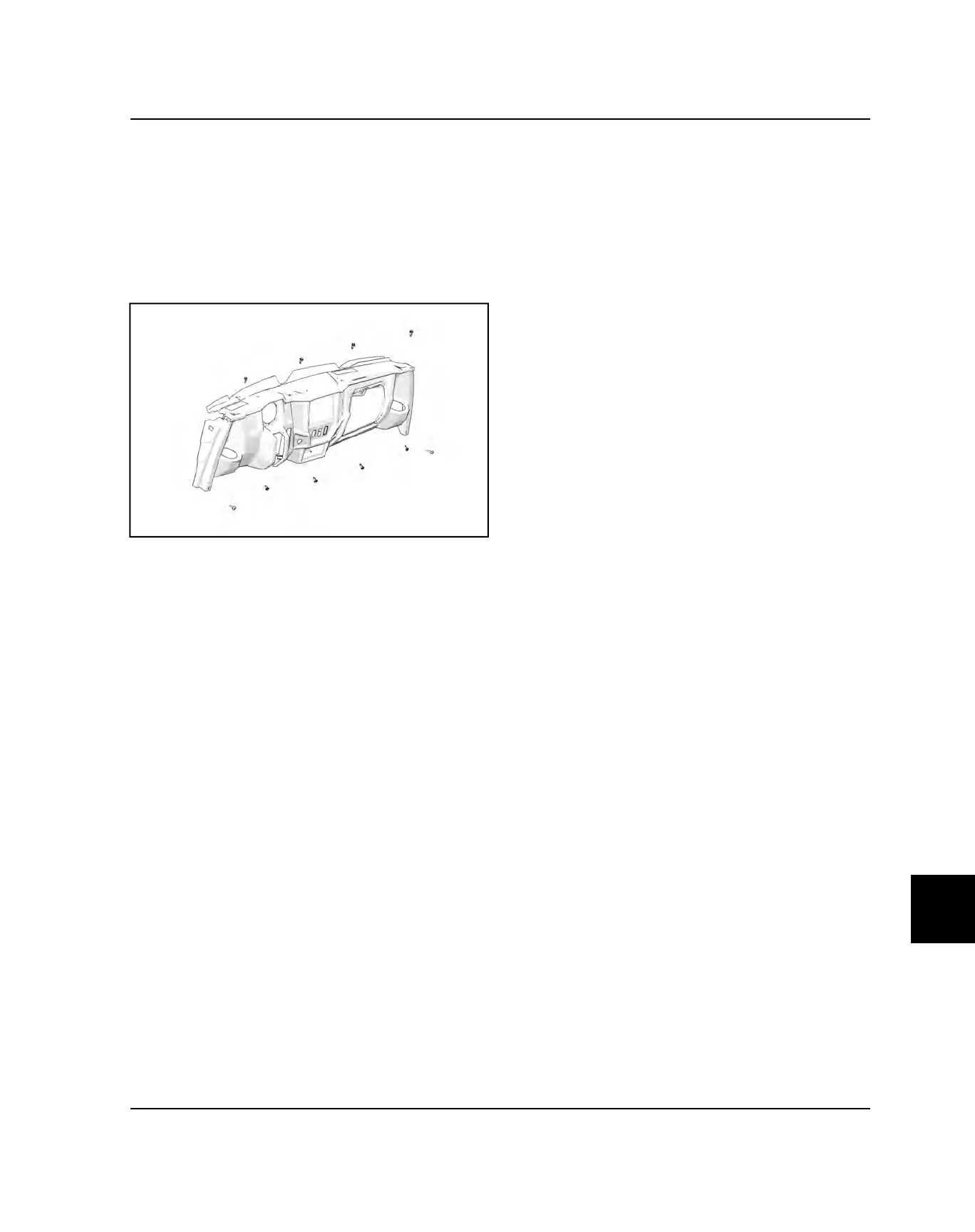

2. Dash Removal - Remove the three Torx-head
screws retaining the front of the dash to the frame.
3. Open the glove box and remove the Torx-head screw
from the dash.
4. Remove the Torx-head screw retaining the left
portion of the dash.
5. Remove the eight fasteners from each side of the
dash where it attaches to the front and rear fenders.
6. Remove the rubber boot from around shift lever.
7. Remove the five push rivets from under the dash
panel. Unhook all electrical components to allow the
panel to be completely removed.
8. Carefully remove the dash assembly from the
vehicle.
BODY / FRAME
