9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
2.27

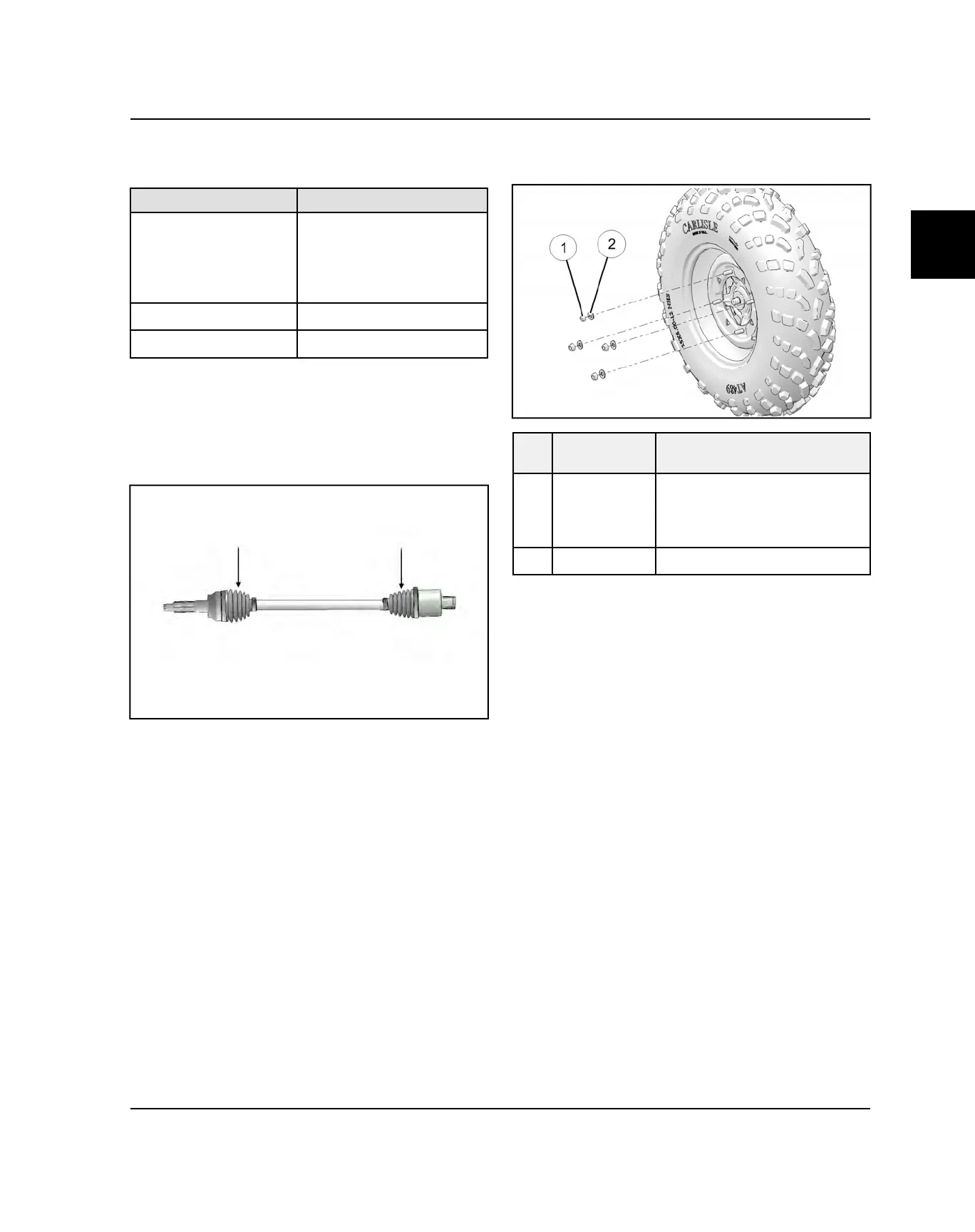

FINAL DRIVE / WHEEL / TIRE
WHEEL AND HUB TORQUE TABLE
ITEM SPECIFICATION
Wheels Nuts
Torque: Steel Wheels:
36 ft-lbs (49 Nm)
Aluminum Wheels:
30 ft-lbs + 90º (41 Nm +
90º)
Front Hub Nut
90 ft-lbs (122 Nm)
Rear Hub Nut
110 ft-lbs (150 Nm)
CV SHAFT BOOT INSPECTION
Inspect the CV shaft boots in the front and rear for
damage, tears, wear, or leaking grease. If the rubber
boot exhibits any of these symptoms, replace the boot.
Refer to Final Drive for CV boot replacement.
WHEEL REMOVAL
RE-
F.
DESCRIP-
TION
NOTES
q
Wheel Nuts
Torque: Steel Wheels:
36 ft-lbs (49 Nm)
Aluminum Wheels:
30 ft-lbs + 90º (41 Nm + 90º)
w
Washers
1. Stop the engine, place the transmission in gear and
chock wheels.
2. Loosen the wheel nuts slightly.
3. Elevate the side of the vehicle by placing a suitable
stand under the footrest frame.
4. Remove the wheel nuts and washers and remove
the wheel.
MAINTENANCE
