9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
1.75

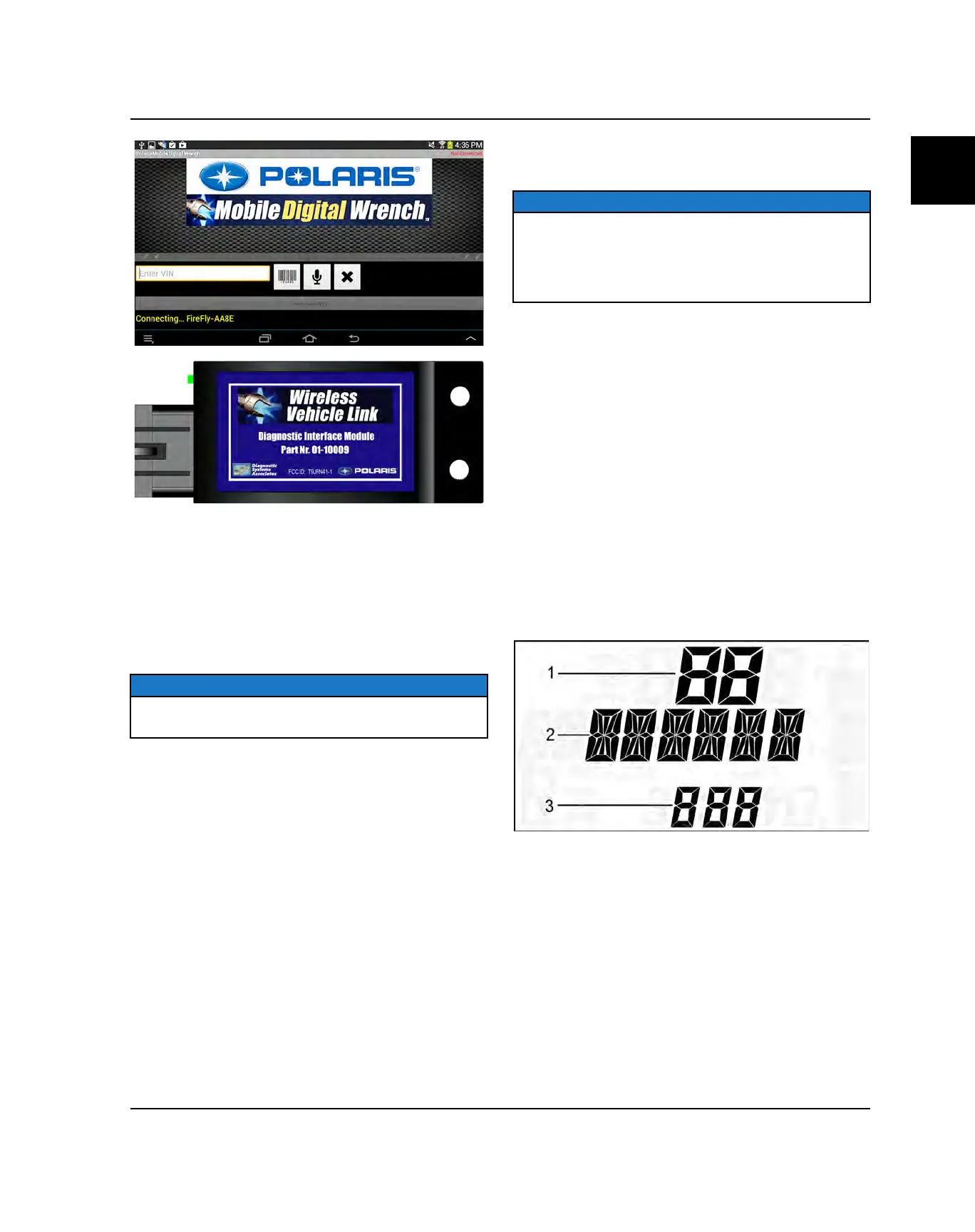

You can download the PMDW app on your Android
device from the Polaris dealer website. From the Service
and Warranty drop-down, select Digital Wrench, and
then click Mobile Digital Wrench App Download.
MINIMUM SPECIFICATIONS FOR ANDROID
DEVICES
• Minimum operating system: Android 3.1 “Honeycomb”
or higher (Android 4.0 or higher preferred)
NOTICE
The PMDW app will not work on Microsoft Windows 8™
or Apple IOS™ products.
• Dual core processor / 2 GB internal memory / external
micro SD (32 or 64 GB) slot / 500 MB RAM
• Rear facing camera with minimum 3.0 mega pixel
resolution with auto / continuous focus
• Video, microphone, and voice-to-text capable
• Internet and Bluetooth wireless technology capable
• Device must be set to allow the installation of non-
market applications
ADDITIONAL INFORMATION
• An electronic user’s guide is provided within the
PMDW app. To access the user’s guide, launch the
app, and then click “Help” under the Settings /
Preferences menu.
• Only CAN-based vehicles are compatible with the
PMDW app and the WVL. See the user’s guide for a
complete list of compatible vehicles.
ENGINE ELECTRICAL DIAGNOSTICS
DIAGNOSTIC TROUBLE CODES OVERVIEW
NOTICE
The diagnostic mode is accessible only when the check
engine MIL has been activated.
If there is a diagnostic problem with the power steering
system, the power steering MIL will illuminate and blink
in place of the check engine MIL.
Use the following procedure to display diagnostic trouble
codes that were activated during current ignition cycle
causing the MIL to illuminate. Error codes are not stored.
When the key is turned OFF, the code and message is
lost, but will reappear if the fault reoccurs after restarting
the engine.
If the CHECK ENGINE lamp or the EPAS lamp
illuminates, retrieve the active error codes from the
display.
1. Press and hold the MODE button to enter the settings
menu.
2. Press either toggle button to cycle to the
“DIAGCODE” option. Press MODE to select.
3. More than one diagnostic code may be present.
Press the toggle UP button to see if more codes are
present. Press MODE to select a code.
4. Record the three numbers displayed.
• The first number (located top) can be 1 to 2 digits in
length. This number equates to the fault mode
(FMI).
• The second number (located middle) can be 2 to 6
digits in length. This number equates to the
suspected area of fault (SPN).
• The third number (located bottom) can range from
0 to 9. This number represents the total number of
trouble code present (example: 2 means there are
3 codes present).
5. Press MODE to exit to the settings menu.
GENERAL INFORMATION
1
