FUSES / CIRCUIT BREAKER
OPERATION

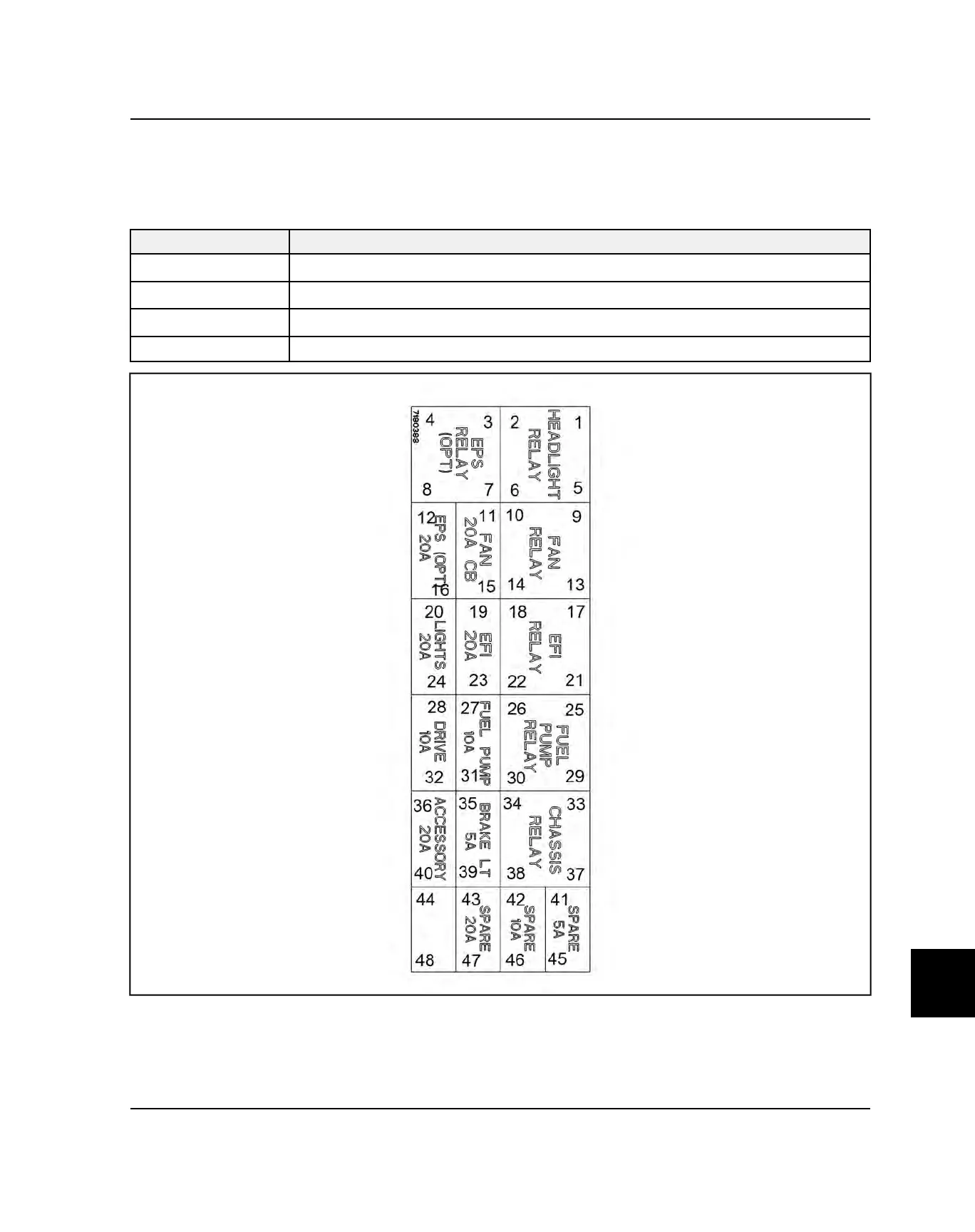

The fuses, located in the relay/fuse box under driver’s seat base, provide current protection for components such as
the EFI system, main harness, lights and accessories.
FUSE SIZE FEATURE SUPPORTED
5 A Brake Light
10 A
Drive System, Fuel Pump
20 A EFI, Power Steering (if equipped), Lights, Accessories
20 A Circuit Breaker
Fan
ELECTRICAL
