PISTON / CONNECTING ROD ASSEMBLY
1. Lubricate connecting rod small end, piston pin bore
and piston pin with engine oil.
CAUTION
Do not re-use circlips. Circlips become deformed during
the removal process.
Do not compress the new clip more than necessary to
prevent loss of radial tension. Severe engine damage
may result if circlips are re-used or deformed during
installation.
2. Install a new circlip on one side of piston with gap at
the top (12:00 position) or bottom (6:00 position).
NOTICE
Never re-use a piston pin circlip.
3. When installing the piston, be sure the piston
marking “EX” is positioned towards the exhaust side
of the engine.

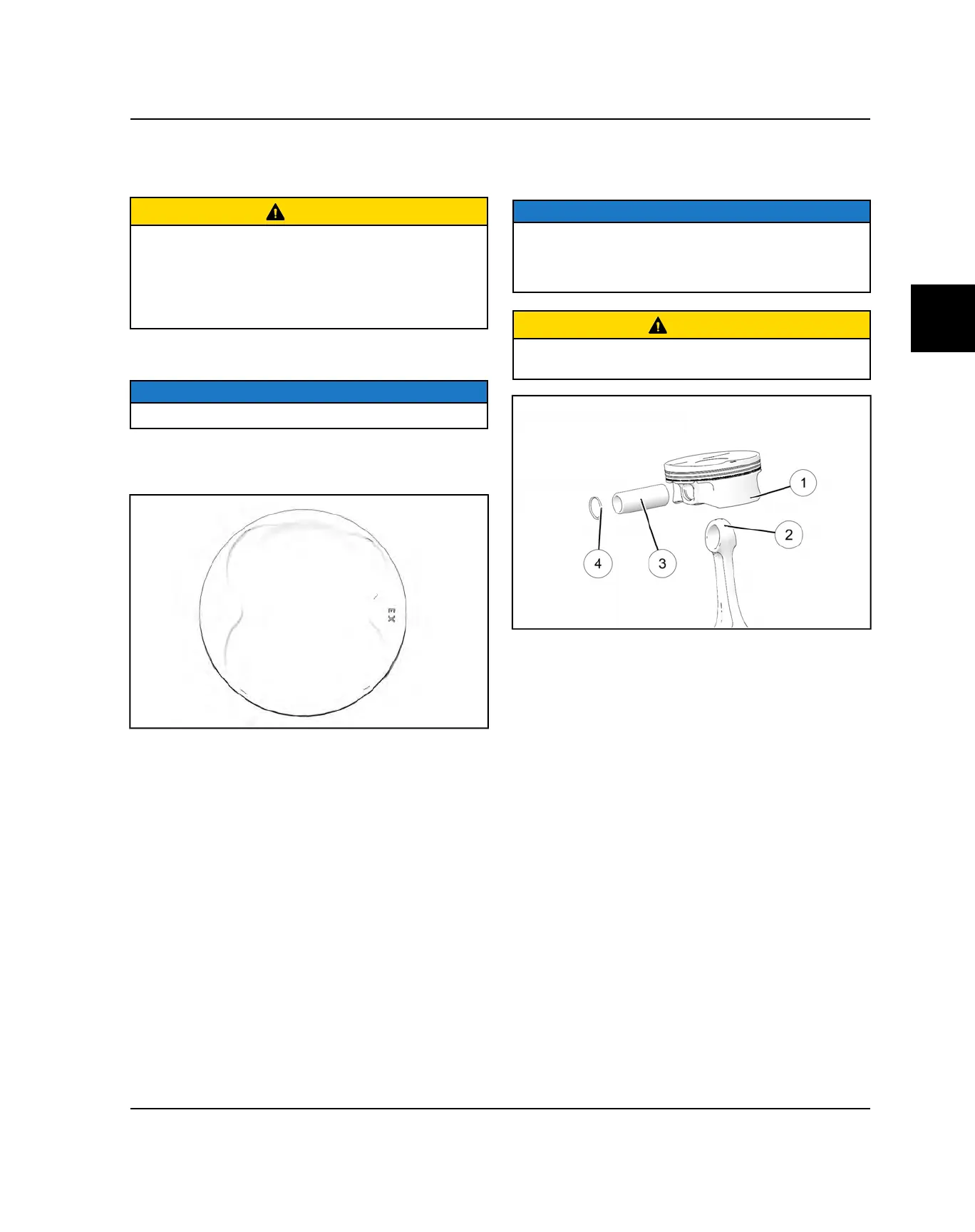

4. Place piston
q
on connecting rod
w
. Push piston pin
e
through rod and piston until it seats against the
installed circlip.
NOTICE
Do not tap on pin or cause any sideways force to
connecting rod. Warm piston crown with a heat gun if
pin cannot be installed by hand, or use a piston pin
installation tool.
CAUTION
DO NOT apply heat to piston rings or a loss of
radial tension could result.
5. Install the remaining circlip
r
with gap at the top
(12:00 position) or bottom (6:00 position). Push the
piston pin in both directions to make sure the clips
are properly seated in the groove.
