7.10
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.

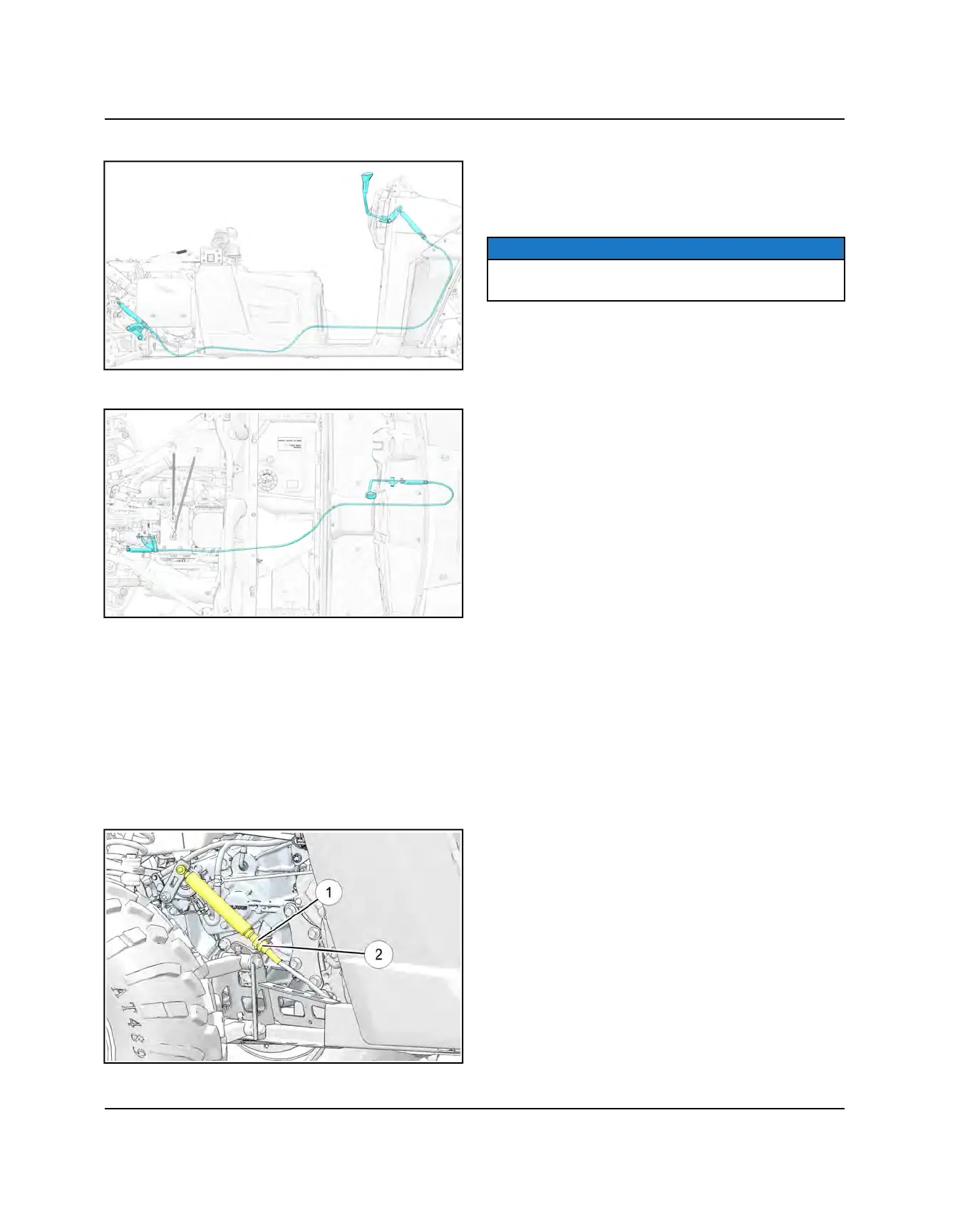

ROUTING
Image shown from right side of vehicle
Image shown from top view
ADJUSTMENT
1. Locate the shift cable attached to the transmission
case in the right rear wheel well area.
2. Inspect shift cable, clevis pin, pivot bushings, and
dust boot. Replace if worn or damaged.
3. If adjustment is required, loosen the lower jam nut
q
and pull the cable out of the mount to move the
upper jam nut
w
.
4. Adjust the shift cable so there is the same amount of
cable travel when shifting slightly past HIGH gear
and PARK.
5. Thread the upper or lower jam nut as required to
obtain proper cable adjustment.
NOTICE
This procedure may require a few attempts to obtain
the proper adjustment.
6. Once the proper adjustment is obtained, place the
shift cable and upper jam nut into the mount. Tighten
the lower jam nut against the mount.
7. Start engine and shift through all gears to ensure the
shift cable is properly adjusted. If transmission still
ratchets after cable adjustment, the transmission will
require service.
TRANSMISSION
