10
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
10.21

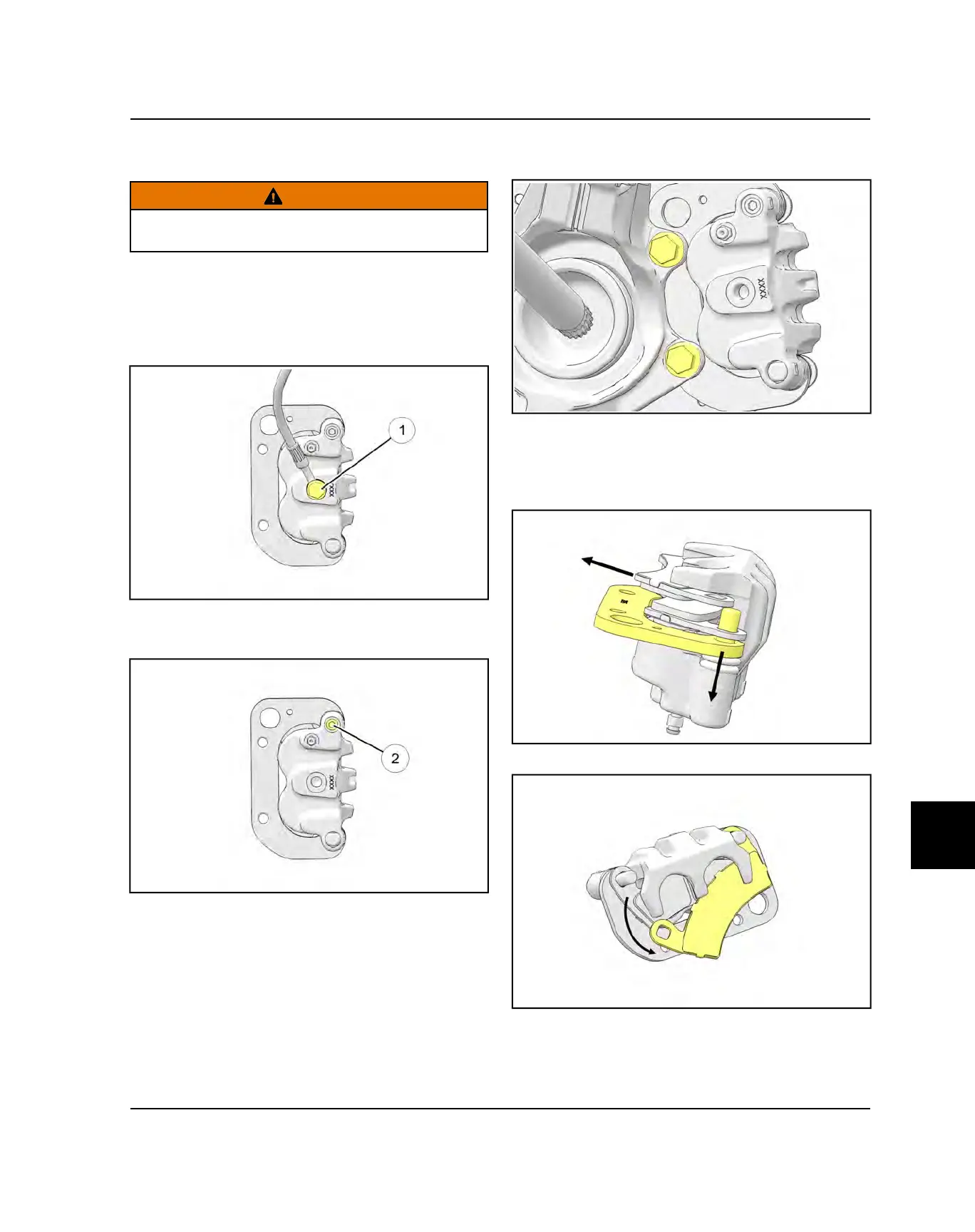

FRONT CALIPER REMOVAL- CREW
1. Elevate and safely support the front of the vehicle.
WARNING
Use care when supporting vehicle so that it does not tip
or fall. Severe injury may occur.
2. Remove the four wheel nuts and the front wheel.
3. Clean caliper area before removal.
4. Place a container below the caliper to catch brake
fluid when removing the line. Remove brake line
(Item 1) from caliper.
5. Loosen brake pad adjustment set screw (Item 2) 2-3
turns to allow brake pad removal after the caliper is
removed.
6. Remove the two caliper mounting bolts and remove
the caliper assembly from the front strut.
FRONT CALIPER DISASSEMBLY - CREW
1. Push brake pad retainer pin inward and slip brake
pads past the edge.
2. Remove both brake pads from the caliper.
BRAKE SYSTEM
