5. If more than one code exists, press the MODE button
to advance to the next trouble code.
6. To exit the diagnostic mode, press and hold the
MODE button or turn the ignition key OFF once the
codes are recorded.
NOTICE
If there is a diagnostic problem with the power steering
system, the power steering MIL will illuminate and blink
in place of the check engine MIL.

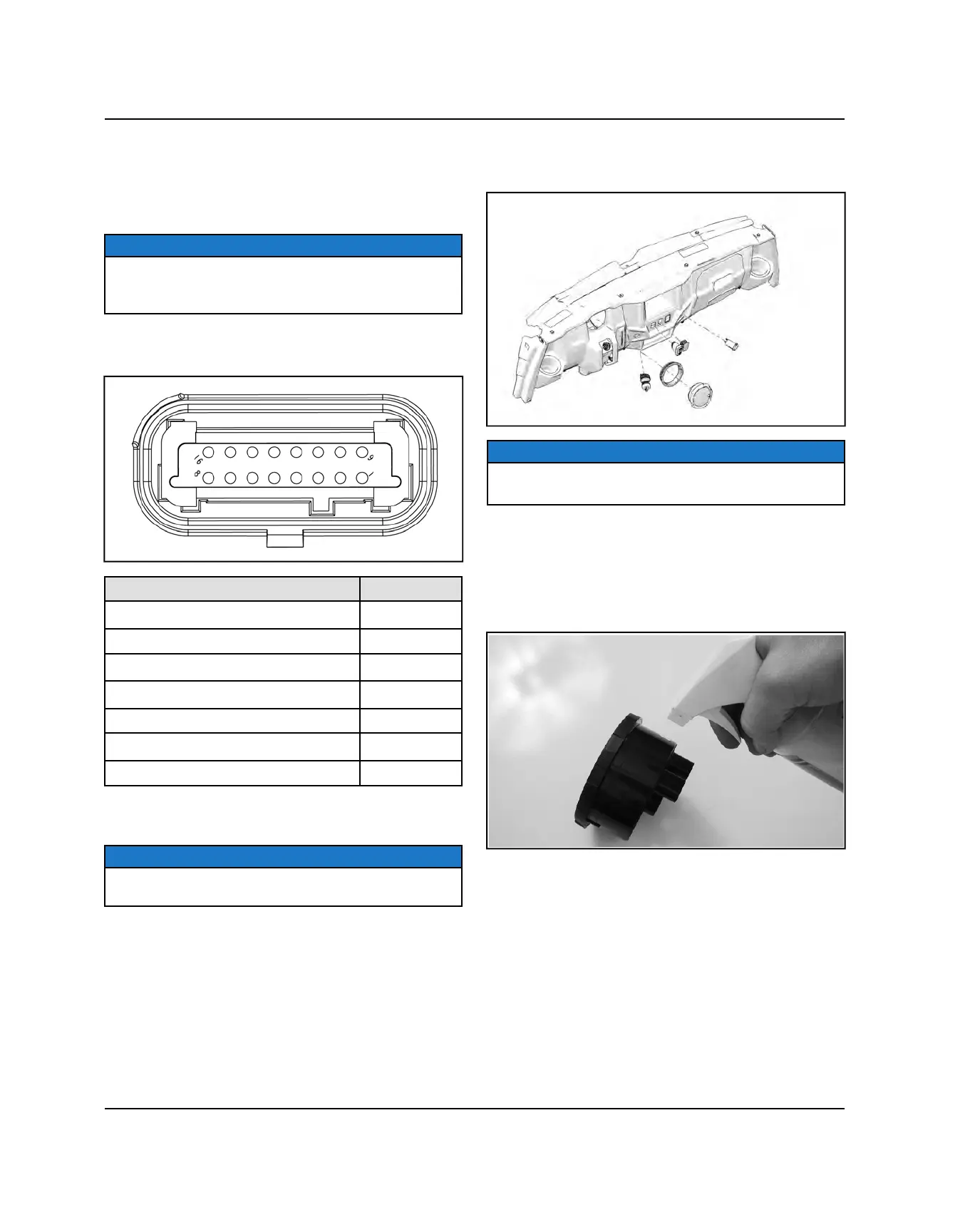

INSTRUMENT CLUSTER PINOUTS
FUNCTION PIN
CAN High
1
CAN Low 2
Switched Power (Vdc)
3
Constant Power (Vdc)
4
Ground
5
High Beam
8
Fuel Level Sensor 11
INSTRUMENT CLUSTER REMOVAL
NOTICE
Do not allow alcohol or petroleum products to come in
contact with the instrument cluster lens.
1. Remove seat, disconnect battery and open hood to
gain access to back of instrument cluster.
2. Disconnect the wire connectors from the back side of
the instrument cluster.
3. Push the instrument cluster out from the back side of
the dash panel, while securely holding the panel and
rubber mount.
NOTICE
Do not remove the rubber mount from the dash panel.
Only remove the rubber mount if necessary.
INSTRUMENT CLUSTER INSTALLATION
1. Spray a soap and water mixture onto the outer
surface area of the instrument cluster. This will help
the instrument cluster slide into the rubber mount
more easily.
2. Be sure the rubber mount inside the dash panel is
fully installed and that the indexing key on the rubber
mount is lined up with the keyway in the dash panel.
3. Hold the dash panel securely and insert the
instrument cluster into the dash panel. Twist the
instrument cluster gently in a clockwise motion to
properly seat the instrument cluster. Apply pressure
on the bezel while pressing down on the instrument
cluster.
ELECTRICAL
