3.48
ENGINE
9923983 - 2012-2013 RZR 170 Service Manual
© Copyright 2012 Polaris Sales Inc.

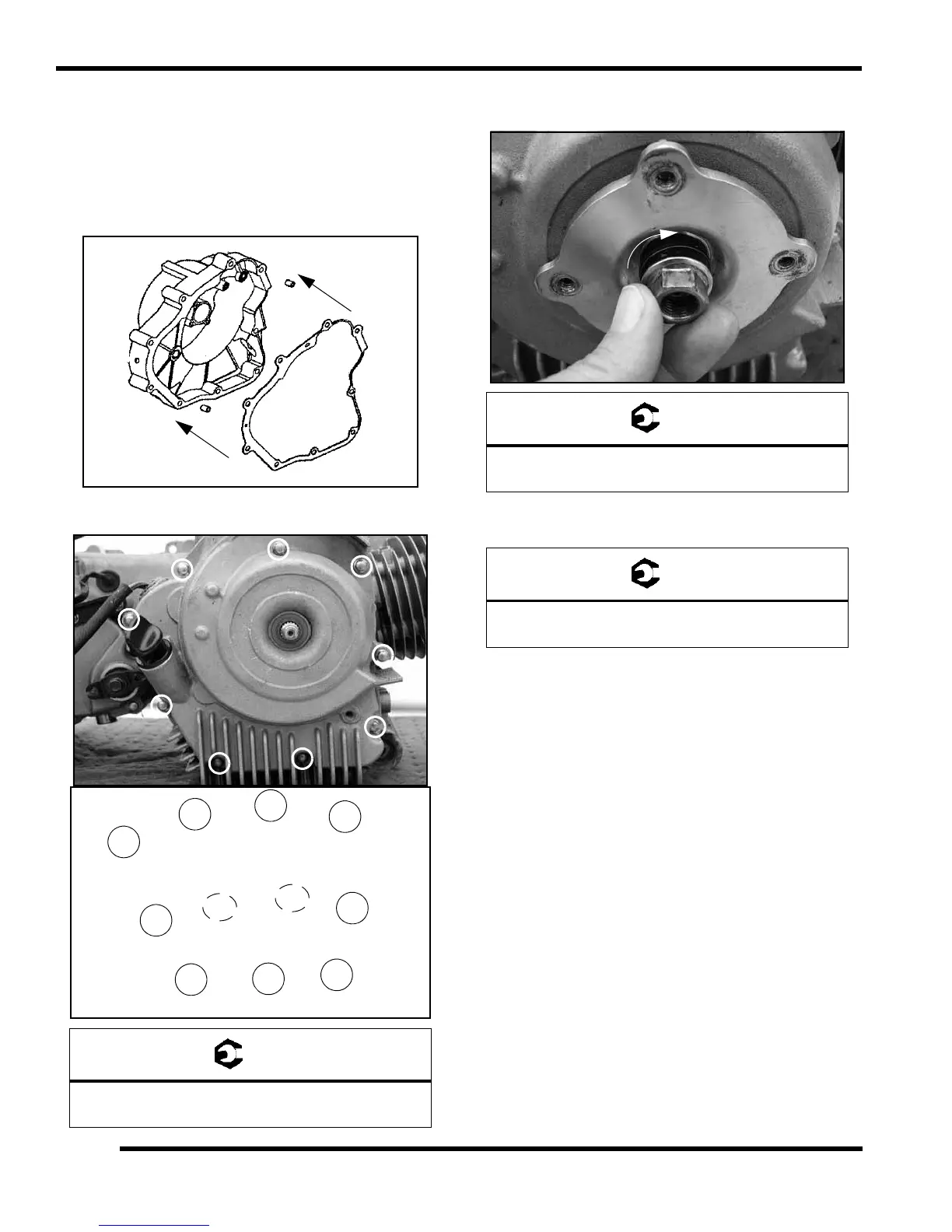

Stator Housing Installation
NOTE: The stator, flywheel, starter drive, and stator
can be serviced with the engine in the frame.
1. Apply a small amount of Crankcase Sealant (PN
2871557) to the mounting surface and install a new
gasket. Install the dowel pins if removed.
2. Install the housing. Torque bolts in sequence to
specification.
3. Install the fan hub, washer, and flywheel nut. Torque
the flywheel nut to specification.
4. Install the fan and fan bolts. Tighten bolts evenly to
specification.
5. Install the cooling shroud and tighten the fasteners
sufficiently. Use care not to over-tighten.
= T
Stator Housing Bolt:
7-8 ft-lbs (9-11 Nm)
3
4
5
6
7
8
9
10
11
RH Crankcase - Stator Cover
(#1, #2 RH case bolts)
= T
Flywheel Nut:
43 ft-lbs (58 Nm)
= T
Fan Bolt:
4-5 ft-lbs (5-7 Nm)
