Polaris RANGER RZR 170 Service Manual

5.29
BODY / SUSPENSION / STEERING
5
9923983 - 2012-2013 RZR 170 Service Manual
© Copyright 2012 Polaris Sales Inc.

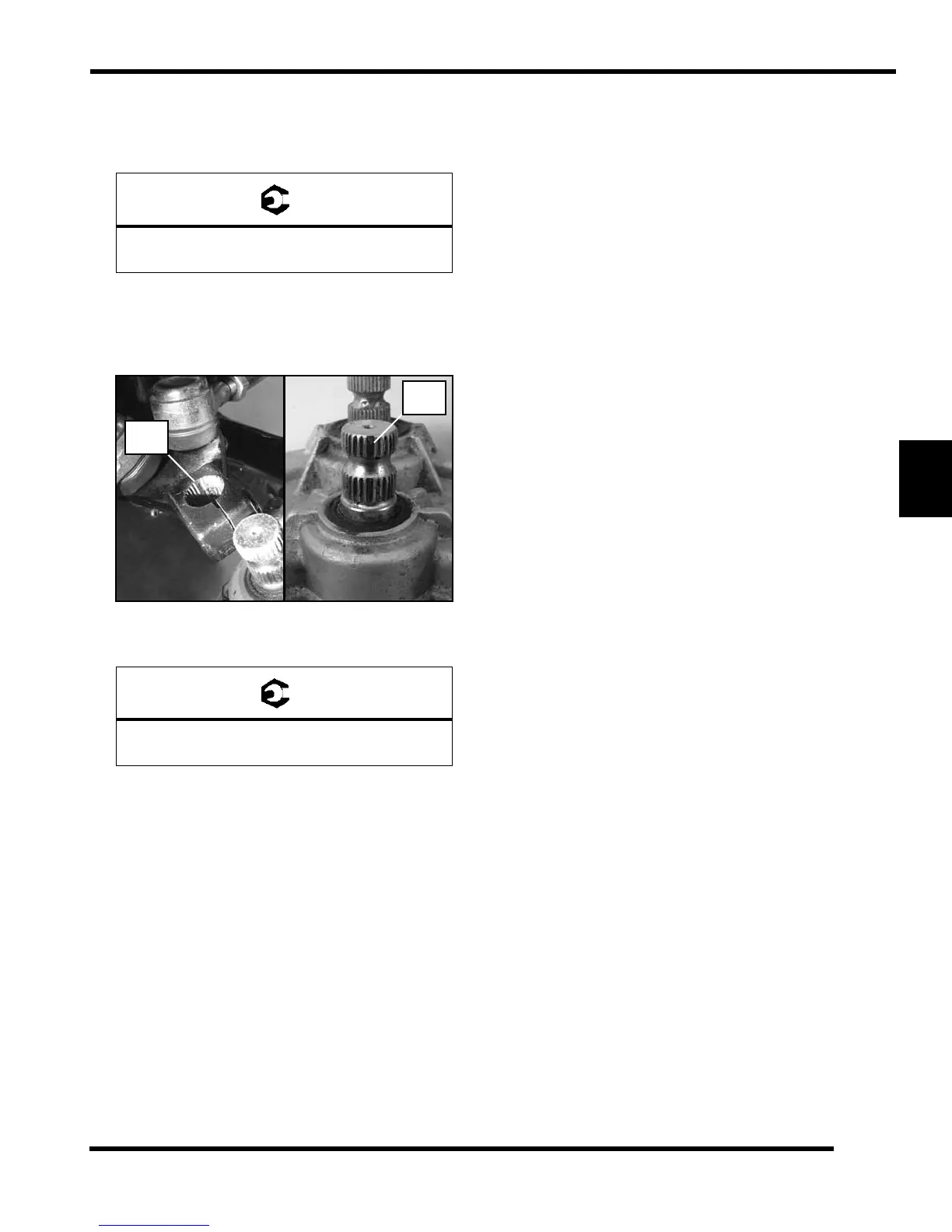

Steering Gearbox Installation
1. Install the steering gearbox and torque the (3)
mounting bolts to specification.
2. Install the brake line under the retainer and securely
tighten the retaining bolt.
3. Align the boss splines on the gearbox stub shaft and
the tie rod plate.
4. Install the tie rod plate. Torque pinch bolt to
specification.
5. Install the front bumper if previously removed (see
“Front Bumper Removal / Installation”).
6. Install the steering shaft (see “Steering Shaft
Installation”).
= T
Steering Gearbox Mounting Bolts:
21 ft-lbs (28 Nm)
= T
Tie Rod Plate Pinch Bolt:
17 ft-lbs (23 Nm)
Boss
Spline
Boss
Spline
