6.18
BRAKES
9923983 - 2012-2013 RZR 170 Service Manual
© Copyright 2012 Polaris Sales Inc.

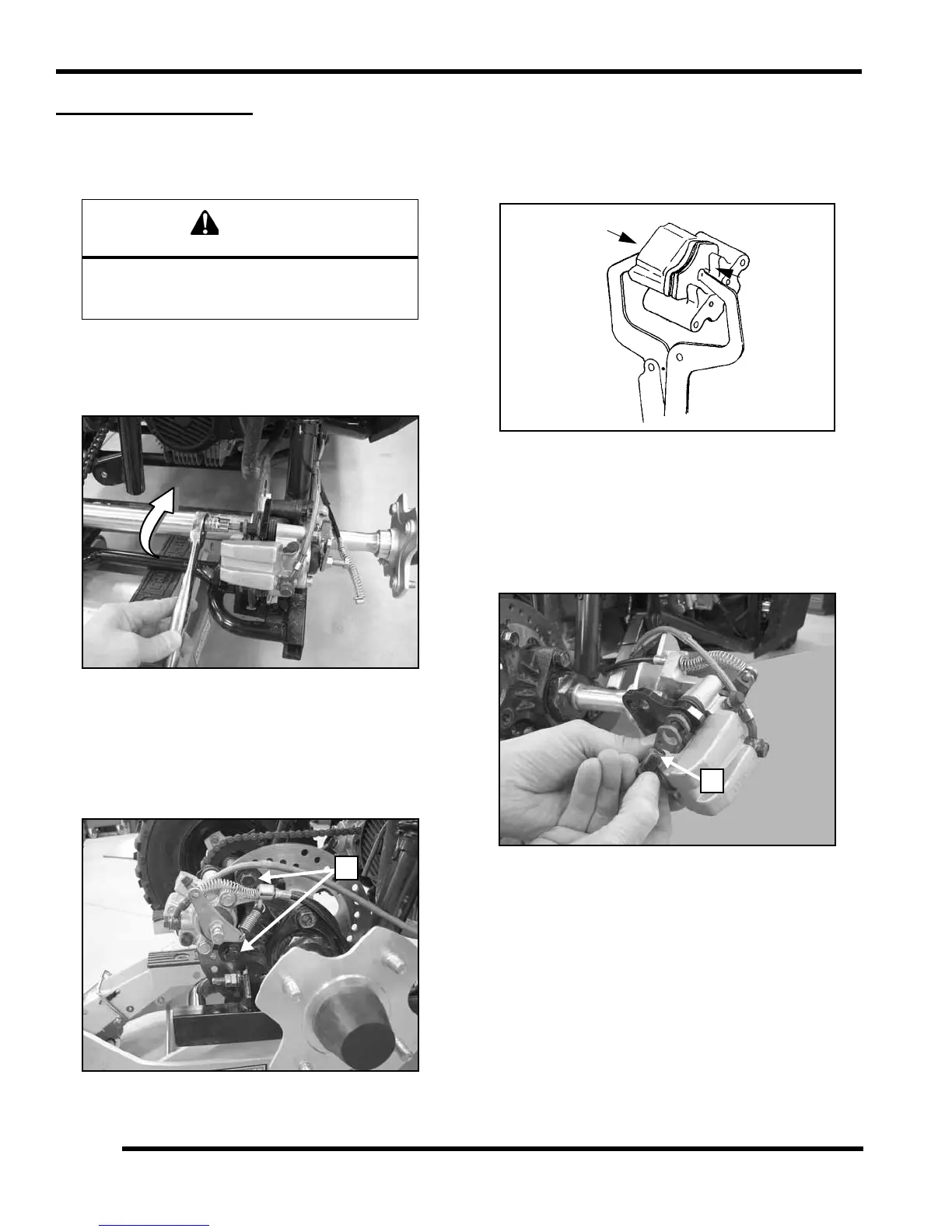

REAR BRAKE PAD
Rear Brake Pad Removal
1. Elevate and support rear of vehicle.
2. Remove rear wheel.
3. Loosen the upper brake pad guide pin about 1 turn
before removing caliper.
4. Remove caliper mounting bolts (A) and lift caliper off
disc.
NOTE: When removing caliper, be careful not to
damage brake line. Support caliper so as not to kink
or bend brake line.
5. Push caliper piston into the caliper bore slowly using
a C-clamp or locking pliers with pads installed.
NOTE: It may be necessary to back the parking
brake adjuster screw out a few turns.
ï€
NOTE: Brake fluid will be forced through
compensating port into master cylinder fluid
reservoir when piston is pushed back into caliper.
Remove excess fluid from reservoir as required.
6. Remove the brake pad guide pin (B) loosened in Step
3.
Use care when supporting vehicle so that it
does not tip or fall.
Severe injury may occur if machine tips or falls.
