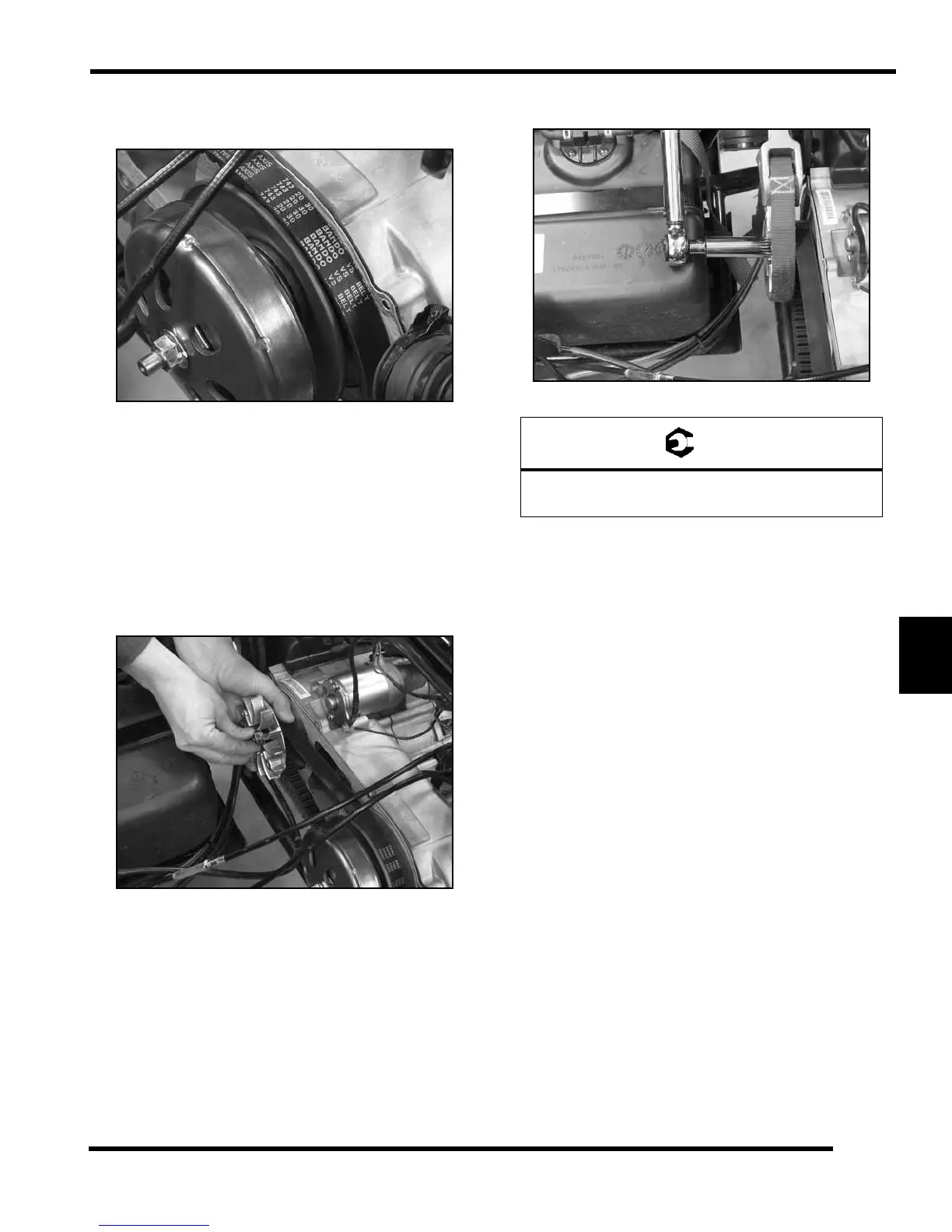

3. Loop belt around driven clutch. Install belt so numbers
can be read from front of vehicle looking rearward.
4. Compress moveable sheave of driven clutch and
force belt as far down as possible. Hold belt down in
driven sheaves and loop front of belt over drive clutch
shaft.
5. Hold belt as high as possible on sheaves. Install
stationary sheave over shaft splines. Start nut and
tighten finger tight while moving belt and sheave to
ensure FULL engagement of stationary sheave
splines with shaft splines.
6. Hold stationary sheave with a strap wrench.
7. Tighten nut to specification.
Drive Clutch Nut:
29 ft-lbs (39 Nm)
