9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.

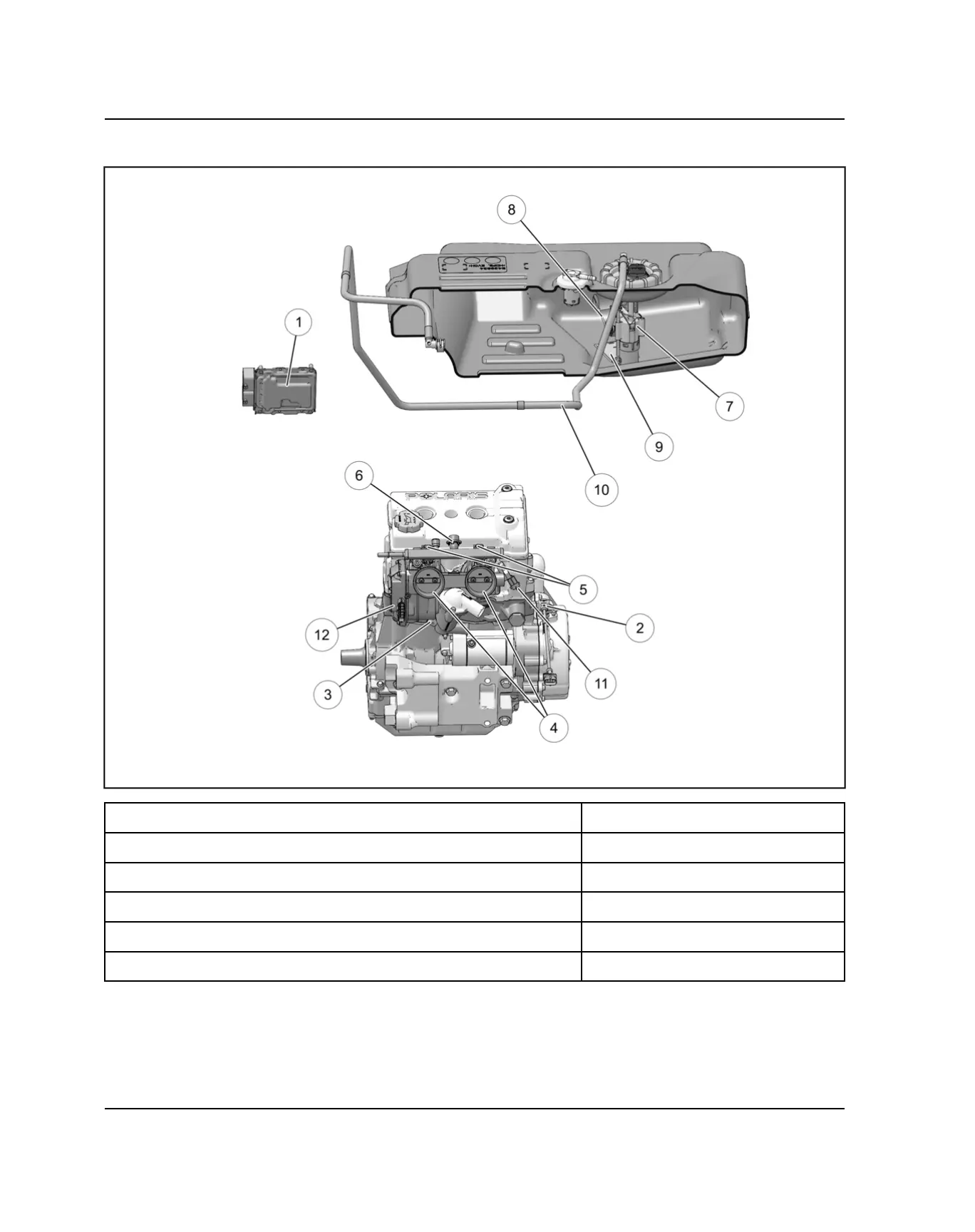

EFI SYSTEM ASSEMBLY VIEW
q
Electronic Control Unit (ECU)
u
Fuel Pump / Regulator
w
Crankshaft Position Sensor (CPS)
i
Fuel Level Sender
e
Engine Coolant Temperature Sensor (ECT)
o
Fuel Filter
r
Dual Throttle Body Assembly
a
Fuel Supply Line
t
Fuel Injectors
s
T-MAP Sensor
y
Fuel Rail / Regulator
d
Electronic Throttle Control
