FOX SHOCK SERVICE

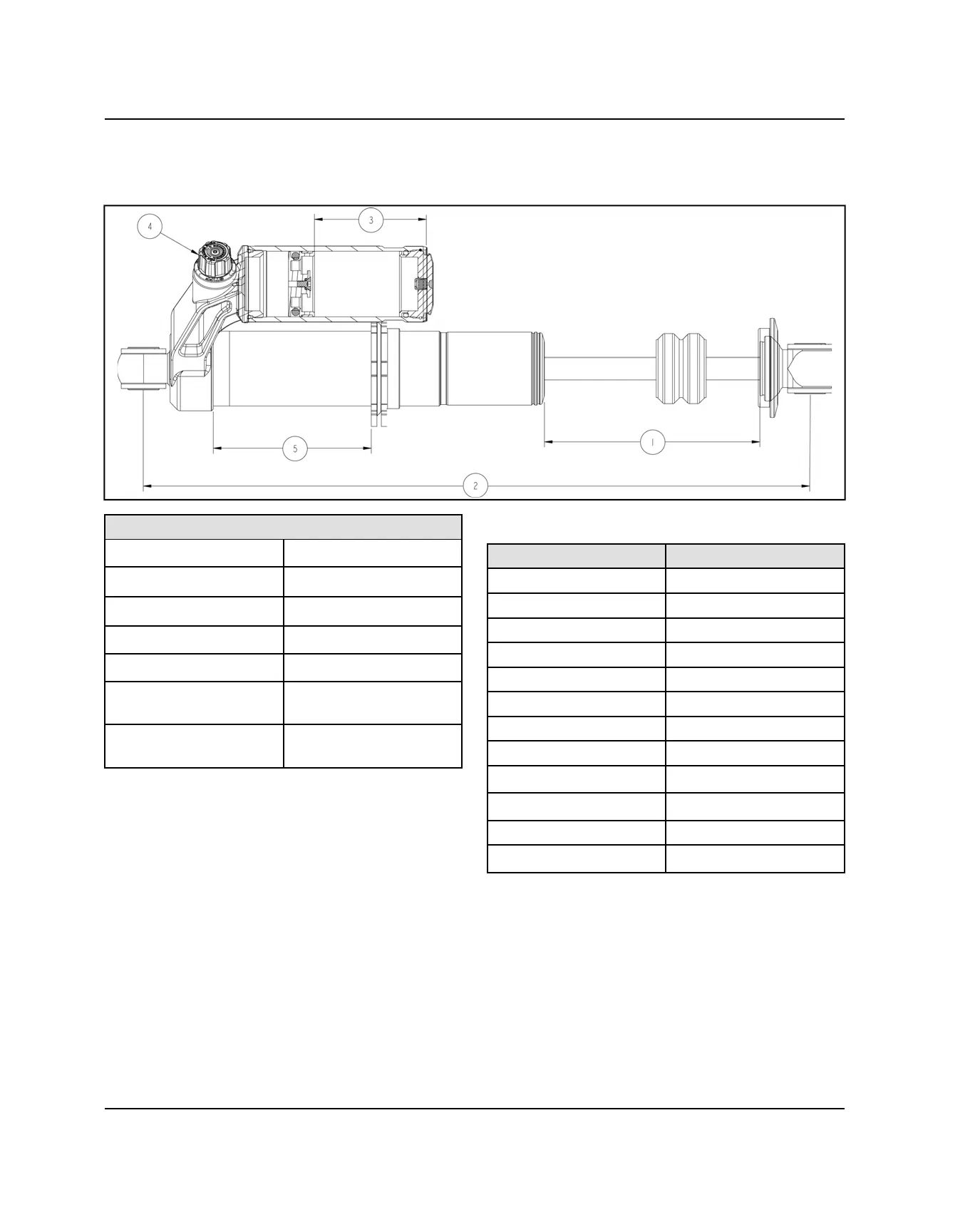

FOX 2.5″ FRONT SHOCK INFORMATION
FRONT SHOCK SPECIFICATIONS
Shock Travel
q
8.64″ (21.95 cm)
Extended Length
w
25.14″ (63.86 cm)
IFP Depth
e
5.70″ (14.48 cm)
Nitrogen Pressure 75 psi (517 kPa) +/- 5%
Gas Shock Oil
2874124 (qt.)
Compression
Adjustment (factory)
r
12 clicks CCW from full
firm setting/full clockwise
Spring Adjustment
Setting
t
2.18″ (5.54 cm)
2015 Front FOX Shock Valving
COMPRESSION REBOUND
1.600 x 0.006 SB 1.425 x 0.008
1.600 x 0.015 1.425 x 0.008
1.600 x 0.015 1.425 x 0.008
1.600 x 0.015 0.700 x 0.006
1.600 x 0.015 1.425 x 0.012
0.950 x 0.010 1.350 x 0.012
1.600 x 0.015 1.250 x 0.012
1.425 x 0.015 1.100 x 0.012
1.350 x 0.015
1.230 x 0.082 (Top Out)
1.250 x 0.015
0.875 x 0.100 (Back Up)
1.100 x 0.015
1.570 x 0.128 (Top Out)
