9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
5.9

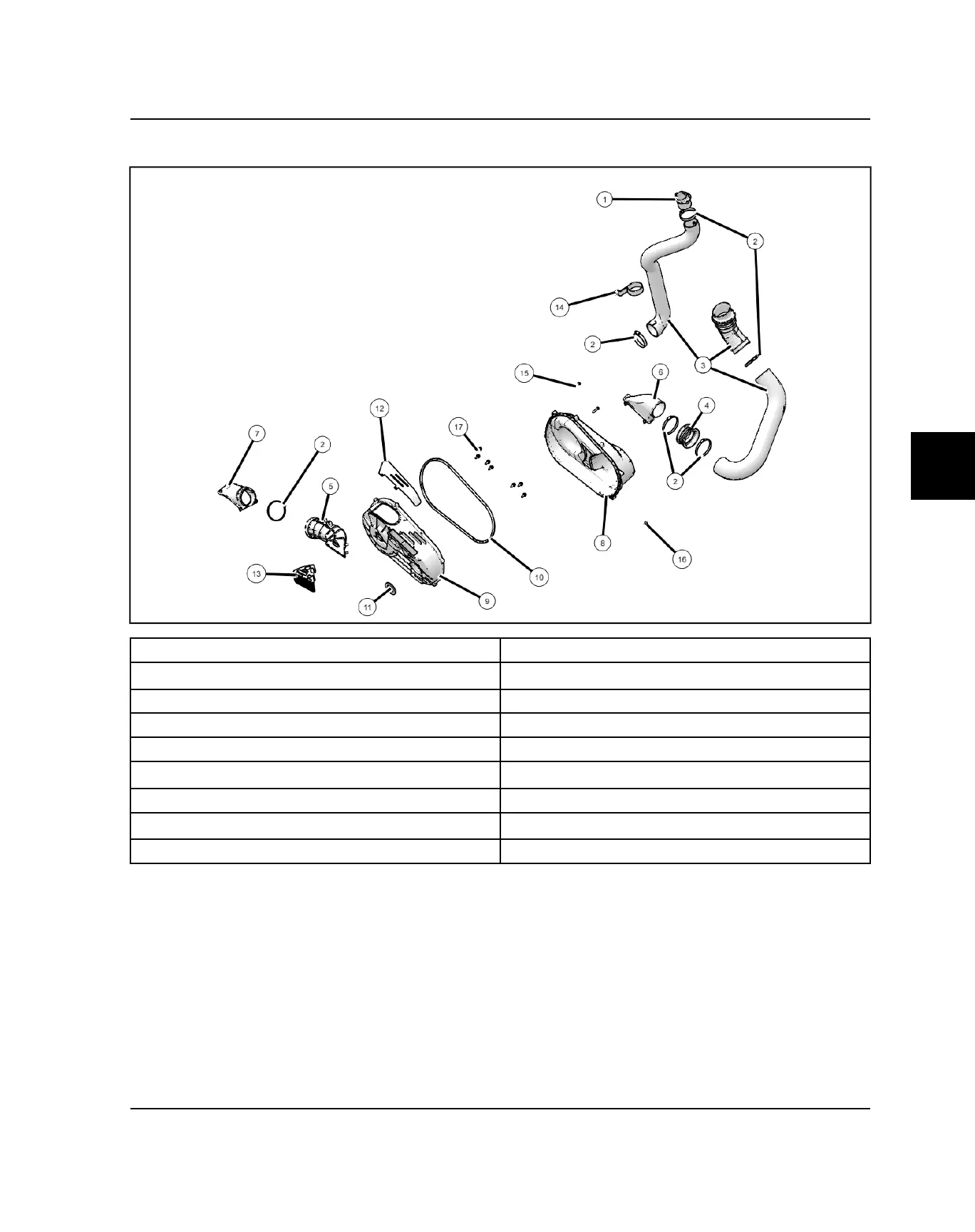

2015 XP / XP4 PVT COVERS AND DUCTING COMPONENTS
q
Inlet Duct
a
Outer Cover Seal
w
Band Clamp
s
Inner Cover Seal
e
Intake Hose
d
Guard Plate
r
Boot
f
Outlet Duct Screen
t
Clutch Outlet Duct
g
Intake Hose Bracket
y
Inlet Duct
h
Outer Cover Screws (8 ft-lbs, 11 Nm)
u
Outlet Duct
j
Clutch Cover Drain Screw
i
Outer Clutch Cover
k
Inner Cover Screws (8 ft-lbs, 11 Nm)
o
Inner Clutch Cover
