Polaris RZR XP 1000 2014 Service Manual

6.10
9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
PU-50658–A

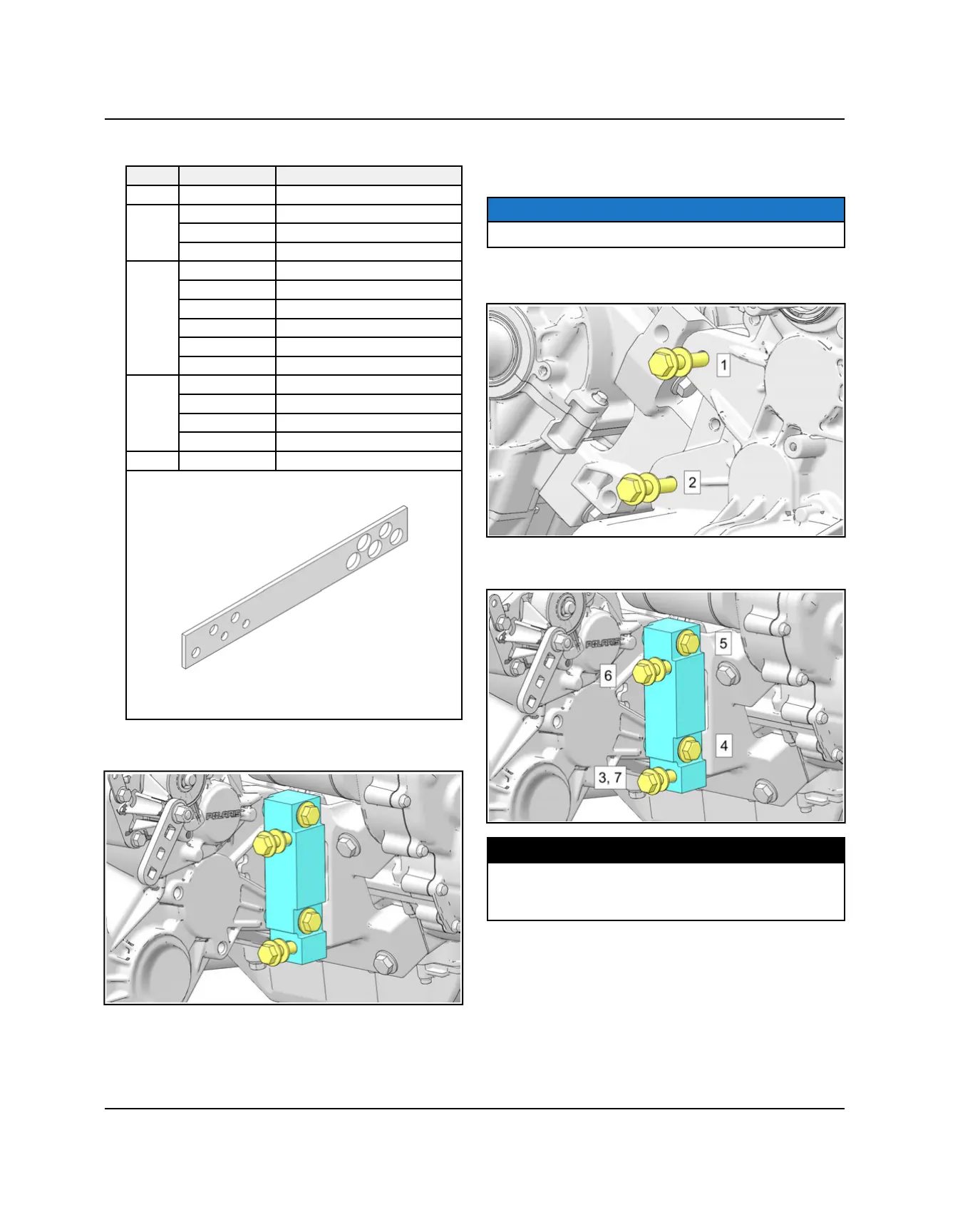

HOLE
YEAR
VEHICLE DESCRIPTION
1 2012 RZR 570
2
2011-14 RZR 900
2014-15 RZR XP 1000
2013
RANGER 900
3
2014-16 ACE
2015-16
ACE 570
2015-16 RGR ETX
2013–16 RZR 570
2014–16
RANGER 570
2015-16 RANGER 570 Full-Size
4
2014-16
RANGER 900
2015-16 RZR 900
2016 RZR 1000
2016
ACE 900
5 2015-16 RANGER Diesel
i.e. 2015 RZR 900 uses the holes marked with a 4
7. Loosen the two bolts retaining the transmission
coupler bracket to the engine on the right side.
8. Align front transmission mounting holes with
transmission joint bracket mounting holes on engine.
9. Loosely install the two longer bolts into left side
mounting holes and two shorter bolts with washers
into right side mounting holes.
NOTE
DO NOT torque fasteners at this time.
10.Torque left side mounting bolts to specification in
sequence.
11. Torque right side mounting bolts to specification using
the numbered sequence shown.
TORQUE
Engine / Transmission Mounting Bolts:
Step 1-2: 64 ft-lb (87 Nm) Step 3: 5 ft-lb (7 Nm) Step
4-7: 44 ft-lb (60 Nm)
12.Remove the clutch center distance tool.
13.Remove the spacer or support between the vehicle
frame and engine.
TRANSMISSION
