28
• Finally, Remove the Wheel sub-assembly by removing the E-Ring and teflon
washer (Poly-Slider) on its pivot pin.
• Reassemble in the reverse order. Note the following:
- Place the center coil of the Release Lever Spring over the Pressure
center post (plain end to the left, resting against the underside of the
Release Lever pivot post, loop end to the right, hooked over the Pressure
Lever.
- When replacing the Release Lever, be sure the pin on its underside
engages the elongated slot in the Pressure Lever.

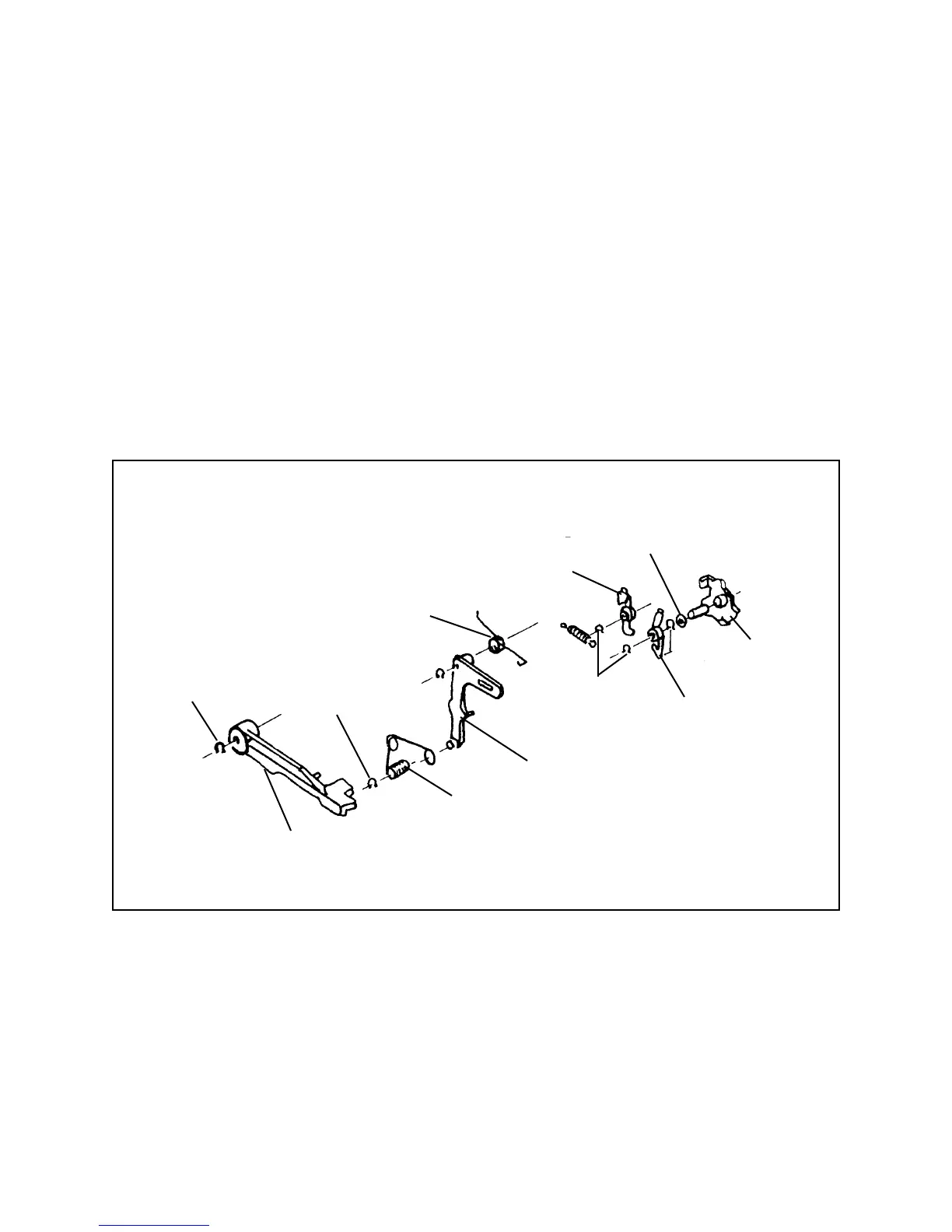

Figure 3-17. Shutter drive: release lever, pressure lever and wheel assembly
Release Lever
Spring
E-ring
E-ring
Wheel Spring
Pressure Lever
Release Lever
E-rings
Left Hook
Poly-Slider
(Washer)
Right Hook
Wheel
