Polycom VSX Series User Manual

Setting Up Your System Hardware
2 - 5

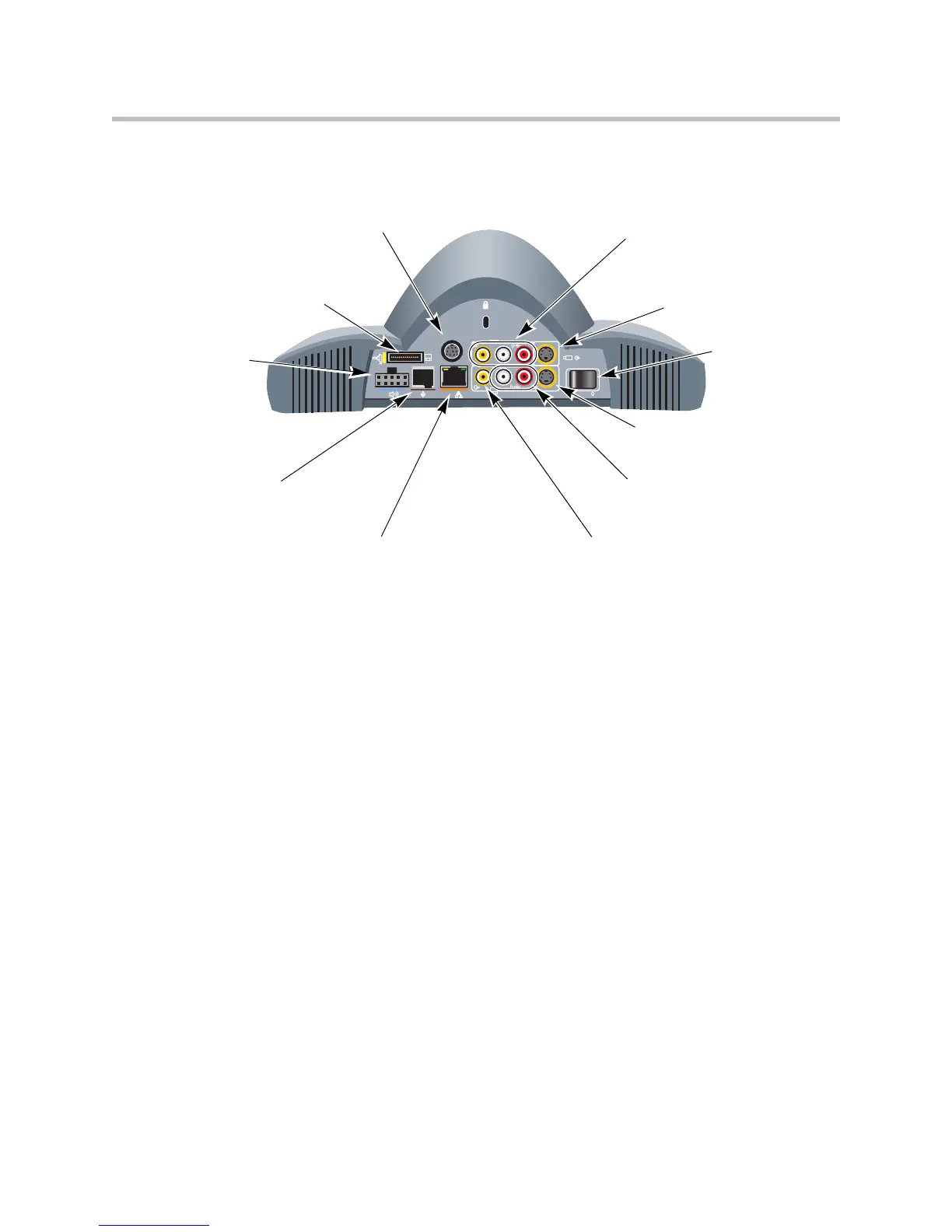

VSX 7000 Back Panel
0101
2
VGA
LAN
2
1
3
Power connector
For subwoofer
(houses power
supply and optional
network interface
module)
LAN port
For IP or SIP calls,
People+Content IP,
and VSX Web
Conference link
For Polycom microphone,
SoundStation VTX 1000, or
Visual Concert VSX
Additional display connector
For additional display adapter to
connect a monitor or projector
VCR/DVD input to system
For VCR/DVD to play content
into calls
Power switch
S-Video output from system
For main monitor
Audio output from system
For VCR/DVD to record call
audio, or for external speaker
system
Composite video output from system
For VCR/DVD to record call video, or for
composite monitor
RS-232 serial port
For touch panel, second camera
control, or other RS-232 device
S-Video input to system
For additional camera
