Polycom VSX Series User Manual

Setting Up Your System Hardware
2 - 31

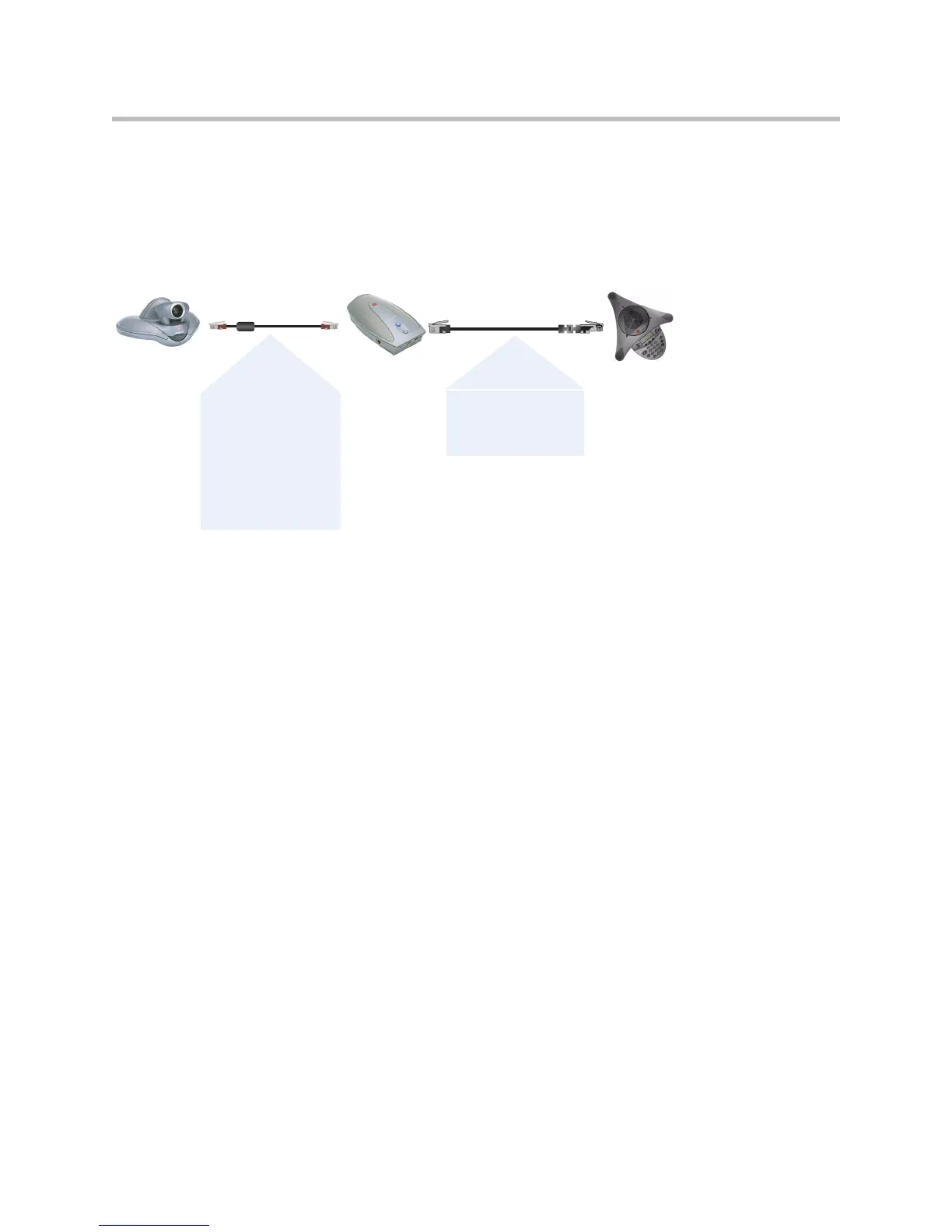

The following diagram shows supported cable configurations for connecting
a Visual Concert VSX with a SoundStation VTX 1000 conference phone.
Connecting an ImageShare II to Component Systems
To show material from your computer, you may connect an ImageShare II unit
to any component system in the VSX series. The ImageShare II gives you
control over whether others can see what is displayed on your computer.
Refer to your system’s setup sheet for connection details.
Connecting Computers to Component Systems
You can connect your computer directly to a VSX 7000e or VSX 8000 system.
When you do this, other call participants see everything that you see on your
computer.
Refer to your system’s setup sheet for connection details.
50 ft (15 m)
2457-20910-050
or 30 ft (9 m)
2457-20910-001
The ferrite bead
must be at the end
connected to the
system.
VSX 5000
VSX 6000
VSX 6000A
VSX 7000
VSX 7000s
10 ft (9 m)
2457-21624-001
or 3 ft (0.9 m)
2457-21625-001
The Visual Concert VSX and
the SoundStation VTX 1000
must be connected in this
order.
