Page 10
Location
All electronic products are susceptible to electrostatic
shock, so follow proper grounding procedures during
installation.

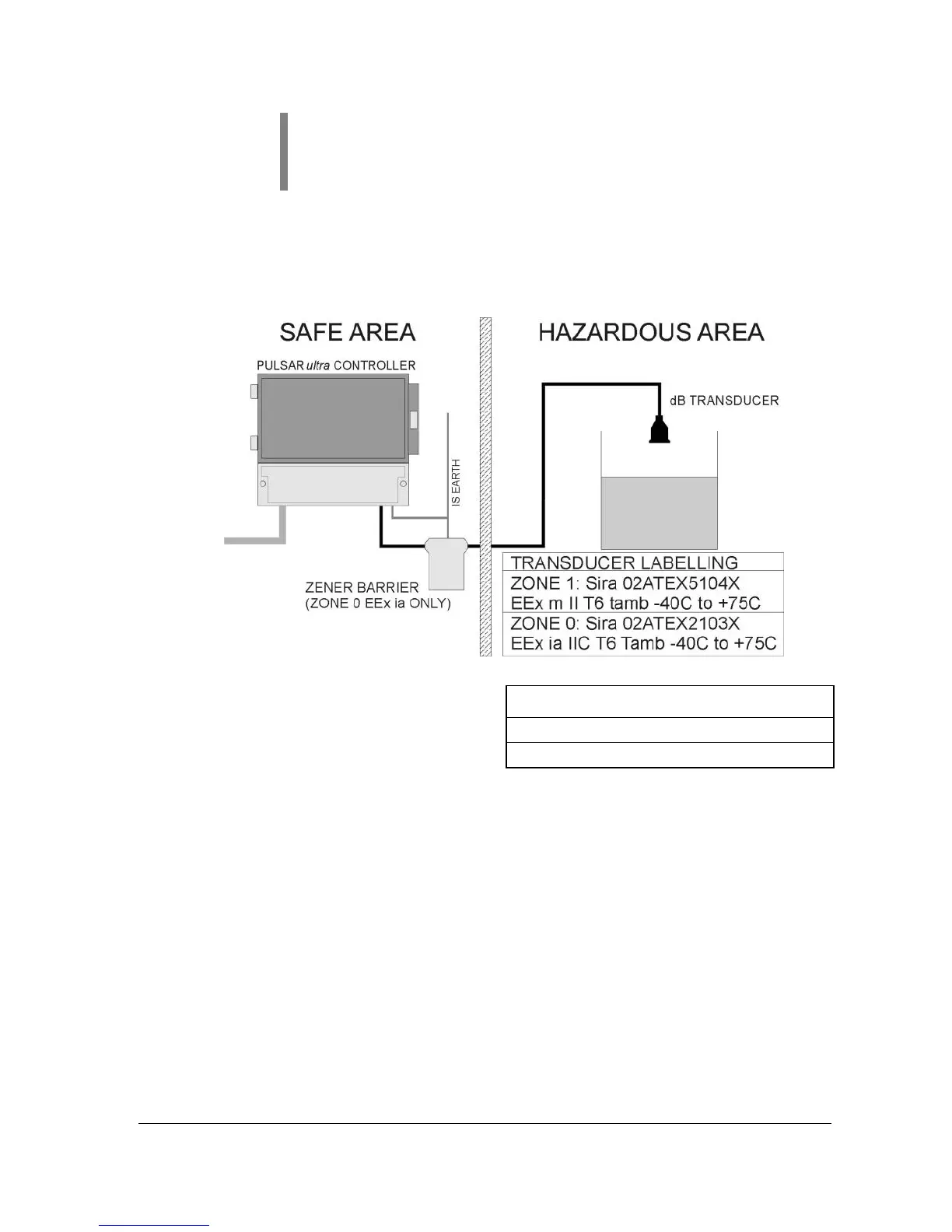

Ultra 3 must be mounted in a non-hazardous (safe) area, and the transducer
fitted in the hazardous area.
When choosing a location to mount the enclosure, bear in mind the following:
• Ensure that the Ultra 3 is installed in a “Safe”, non-hazardous, area.
• For a clear view of the LCD display it is recommended that it is
mounted at eye level.
• The mounting surface is vibration-free.
• The ambient temperature is between -4
o
F and 140
o
F (-20ºC and
50ºC).
• There should be no high voltage cables or inverters close by.
Class I, Div. 1, Group A, B, C & D
Class II, Div. 1, Group E, F & G
