Qlogic QConvergeConsole 2400 Series User Manual

A–Troubleshooting
How to Change the Default Port Reference Using the QConvergeConsole Shortcut
SN0054669-00 C A-3
How to Change the Default Port Reference Using the
QConvergeConsole Shortcut
The QConvergeConsole installer installs a shortcut named QCC GUI (localhost)
in the Program Files menu. If the Tomcat port number is changed from 8080, the
port number in the shortcut will also need to be changed from the default value of
8080.
Follow these steps to change the port number for the QCC GUI shortcut:
1. Select the QCC GUI shortcut by selecting Start > All Programs >
QLogic Corporation > QConvergeConsole > QCC GUI (localhost).
2. Right-click on the QCC GUI shortcut to display the context menu.
3. Select Properties. The following dialog appears:

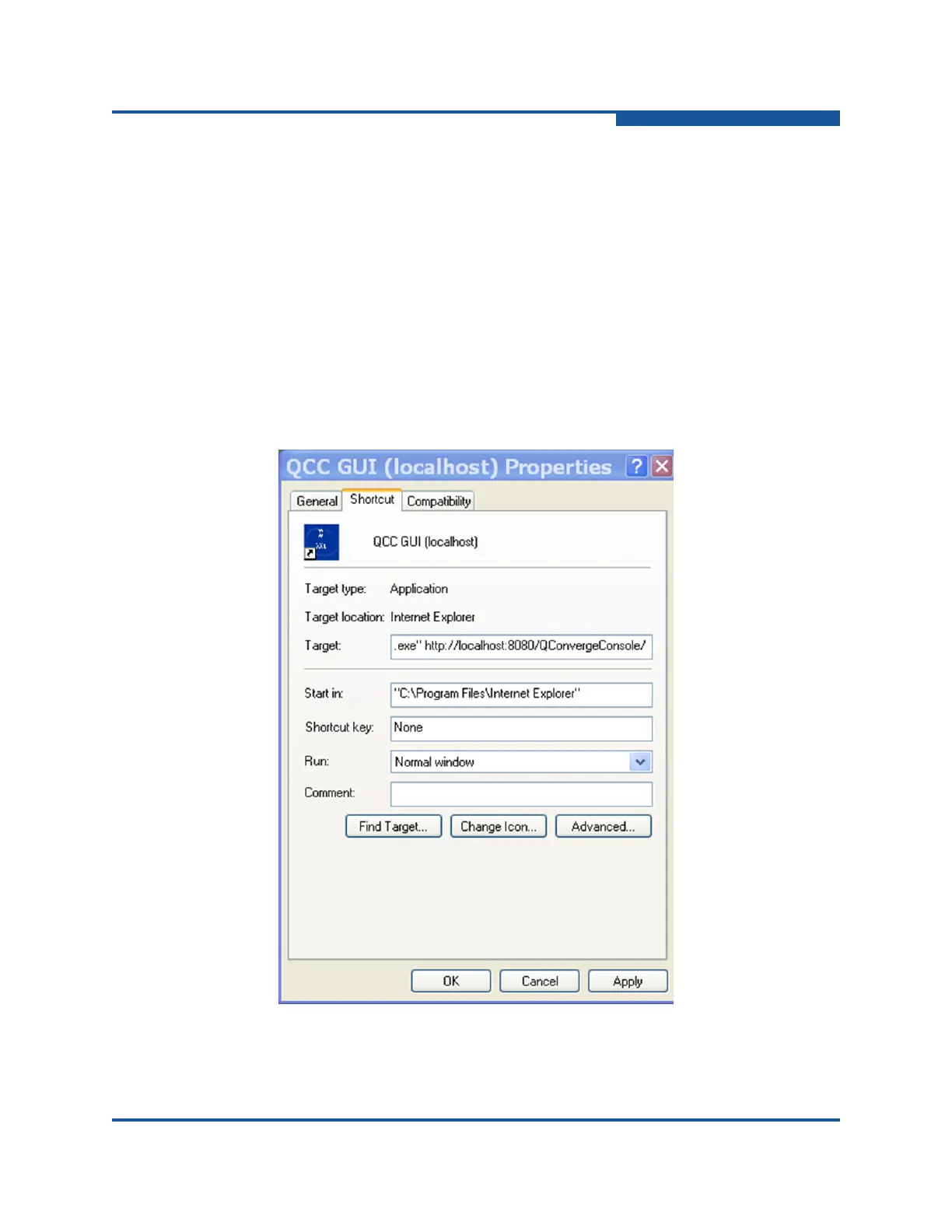

Figure A-1. QCC GUI Shortcut Properties with Default Port Number
