Qlogic QConvergeConsole 2400 Series User Manual

A–Troubleshooting
Procedure on Windows-based Systems
A-6 SN0054669-00 C
2. If the Tomcat server is running, the Stop button will be enabled. Click Stop
to stop the server. The following screen appears:

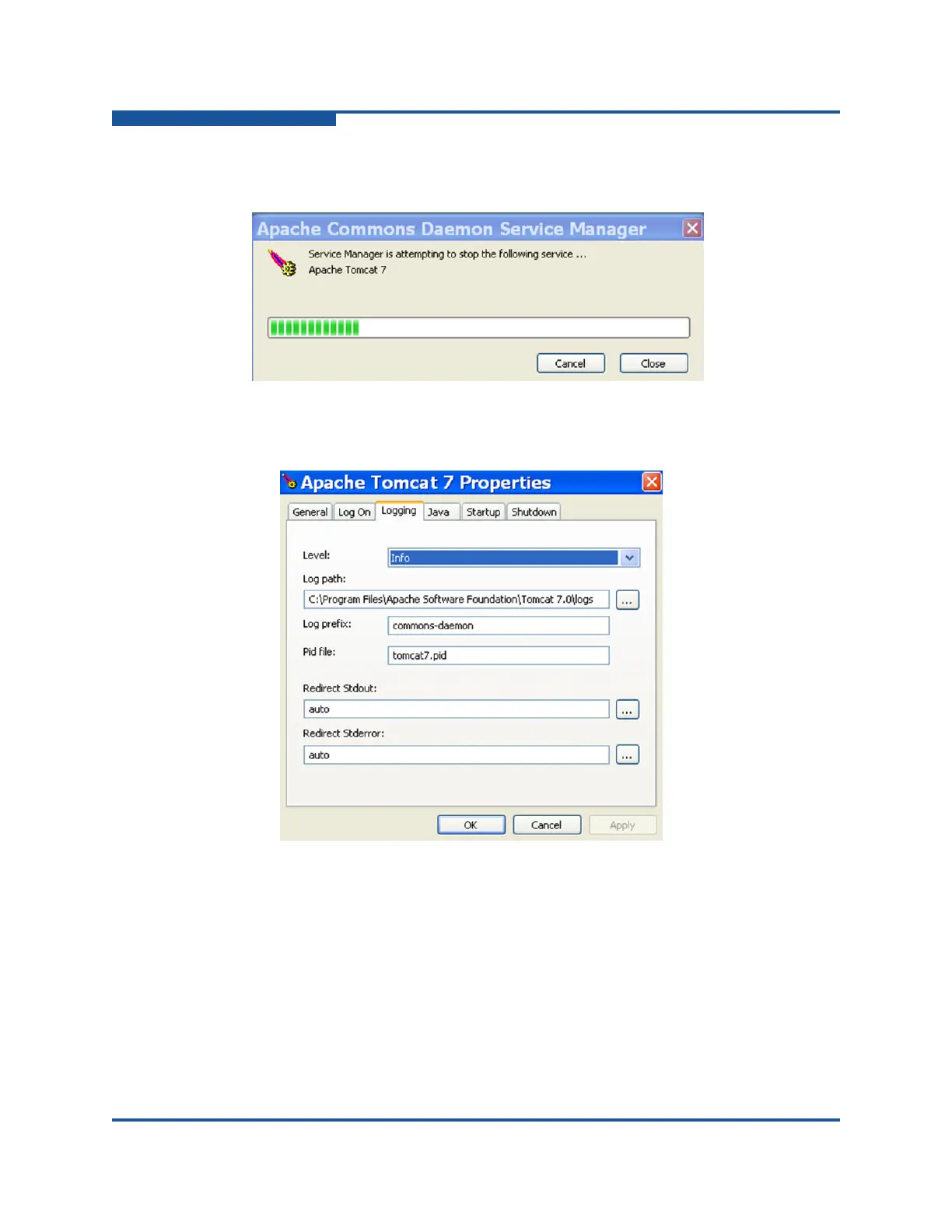

Figure A-5. Stopping Server Progress
3. Select the Logging tab.
Figure A-6. Logging Tab on Configure Tomcat Dialog
4. Click the box to the right of Redirect Stdout to enter the file location for
output from Stdout from QCC.
Click the box to the right of Redirect Stderror to enter the file location for
output from Stderror from QCC.
In Figure A-7, “C:\Temp\stdout form QCC.txt“ and
“C:\Temp\stderr from QCC.txt” are used as examples.
