2 – Using SANsurfer Switch Manager
Using the Topology Display
2-26 59226-00 B
S
2.12
Using the Topology Display
The topology display shown in Figure 2-10 receives information from the selected
fabric and displays its topology. Switches and inter-switch links (ISLs) appear in
the graphic window and use color to indicate status. Consider the following
topology display features:
Switch and Link Status
Working with Switches and Links
Topology Data Windows

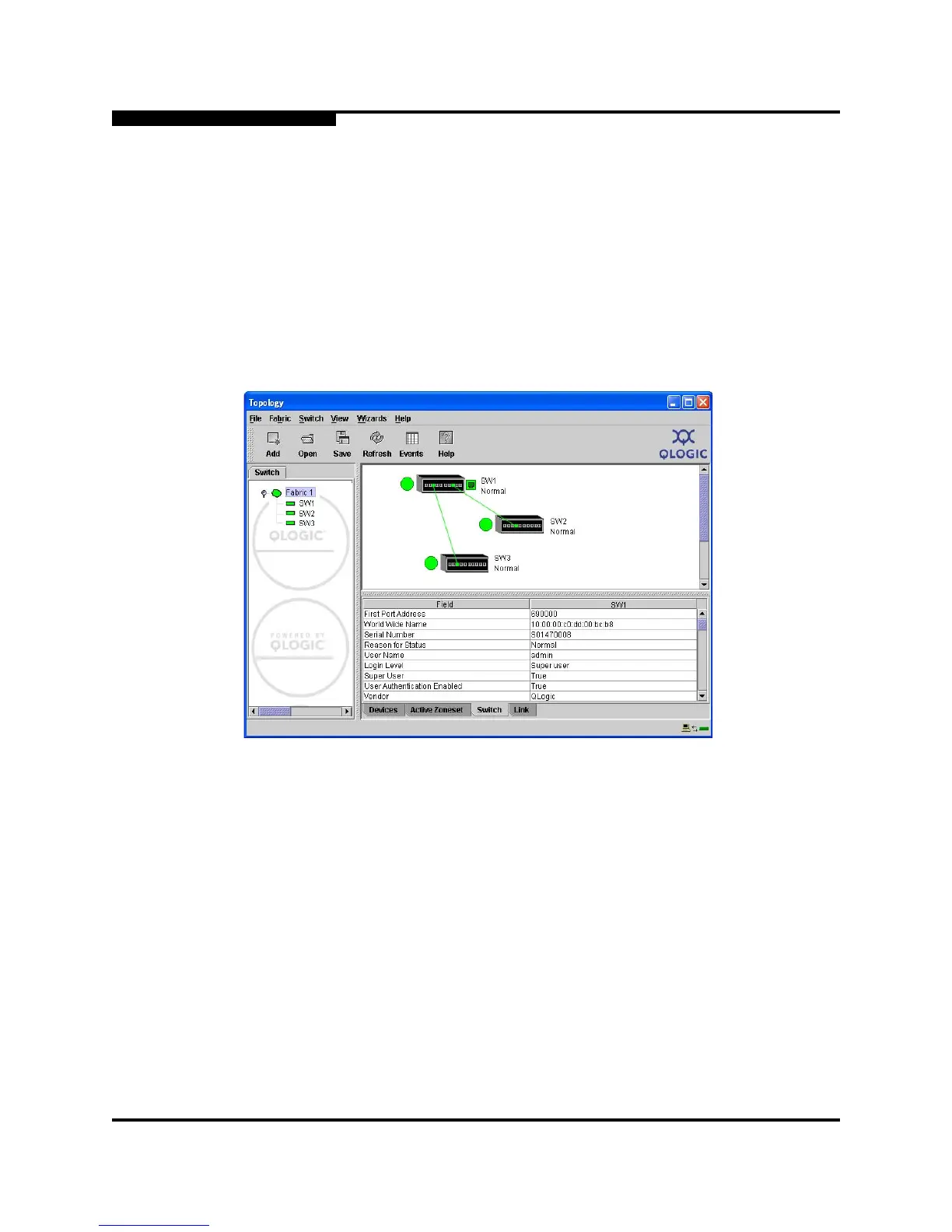

Figure 2-10. Topology Display
