3 – Managing Fabrics
Displaying Fabric Information
3-16 59226-00 B
S
3.4.4
Active Zone Set Data Window
The Active Zoneset data window displays the zone membership for the active
zone set that resides on the fabric management switch. The active zone set is the
same on all switches in the fabric – you can confirm this by adding a fabric
through another switch and comparing Active Zone Set displays.
To open the Active Zoneset data window, click the Active Zoneset tab below the
data window in the topology display. Refer to “Configured Zonesets Data Window”
on page 4-12 for information about the zone set definitions on a particular switch.
Refer to “Zoning a Fabric” on page 3-20 for more information about zone sets and
zones.
The Active Zoneset data window, shown in Figure 3-5, uses display conventions
for expanding and contracting entries that are similar to the fabric tree. An entry
handle located to the left of an entry in the tree indicates that the entry can be
expanded. Click this handle or double-click the following entries:
A zone set entry expands to show its member zones.
A zone entry expands to show its member ports/devices.
Ports/devices that are zoned by WWN or FC address, but no longer part of
the fabric, are grayed-out.

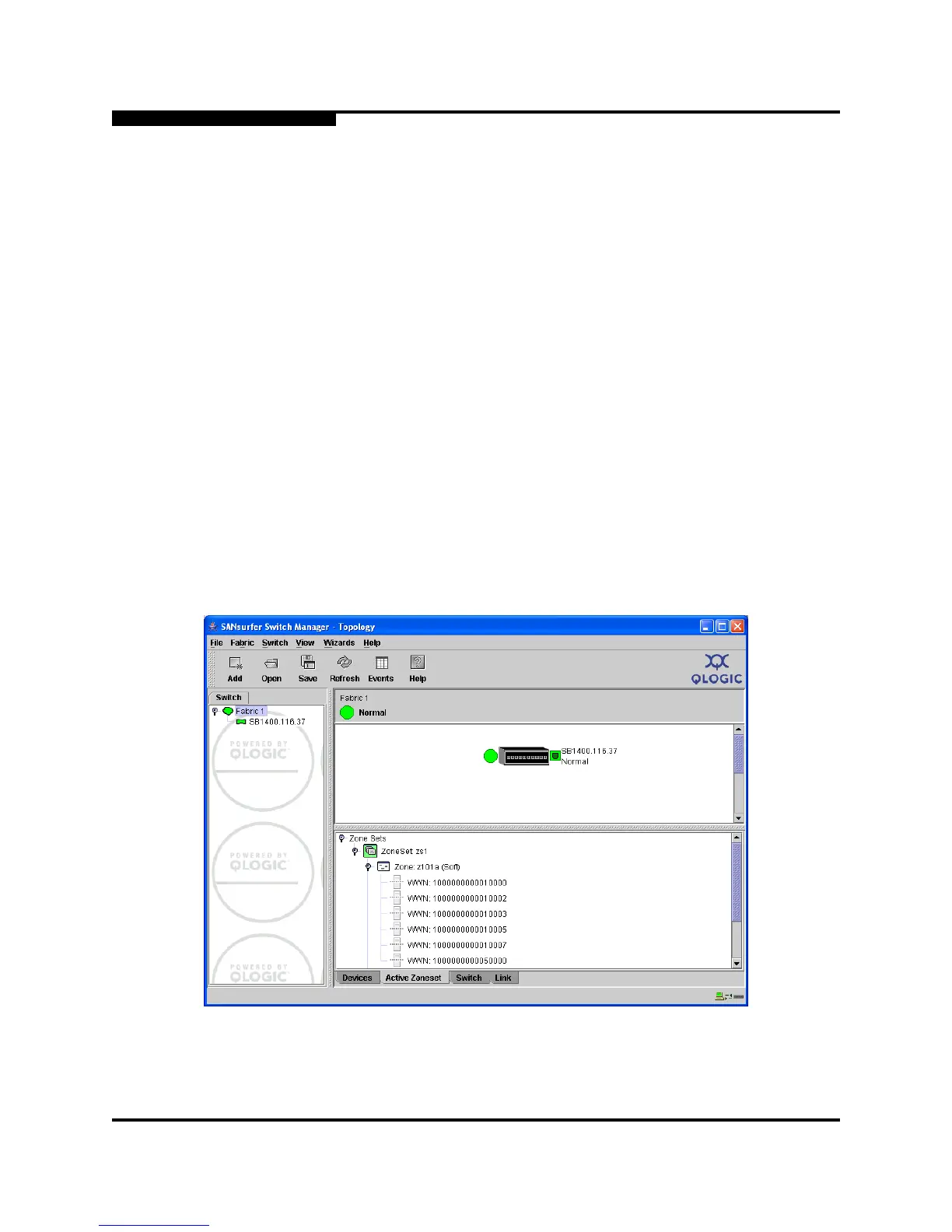

Figure 3-5. Active Zone Set Data Window
Active Zoneset
Data Window
