4 – Managing Switches
Displaying Switch Information
59226-00 B 4-7
A
4.2
Displaying Switch Information
The faceplate display and data windows provide the following switch information:
Device and HBA information
Switch specifications and addresses
Configuration parameters
Port performance statistics
Port information
Configured zone sets

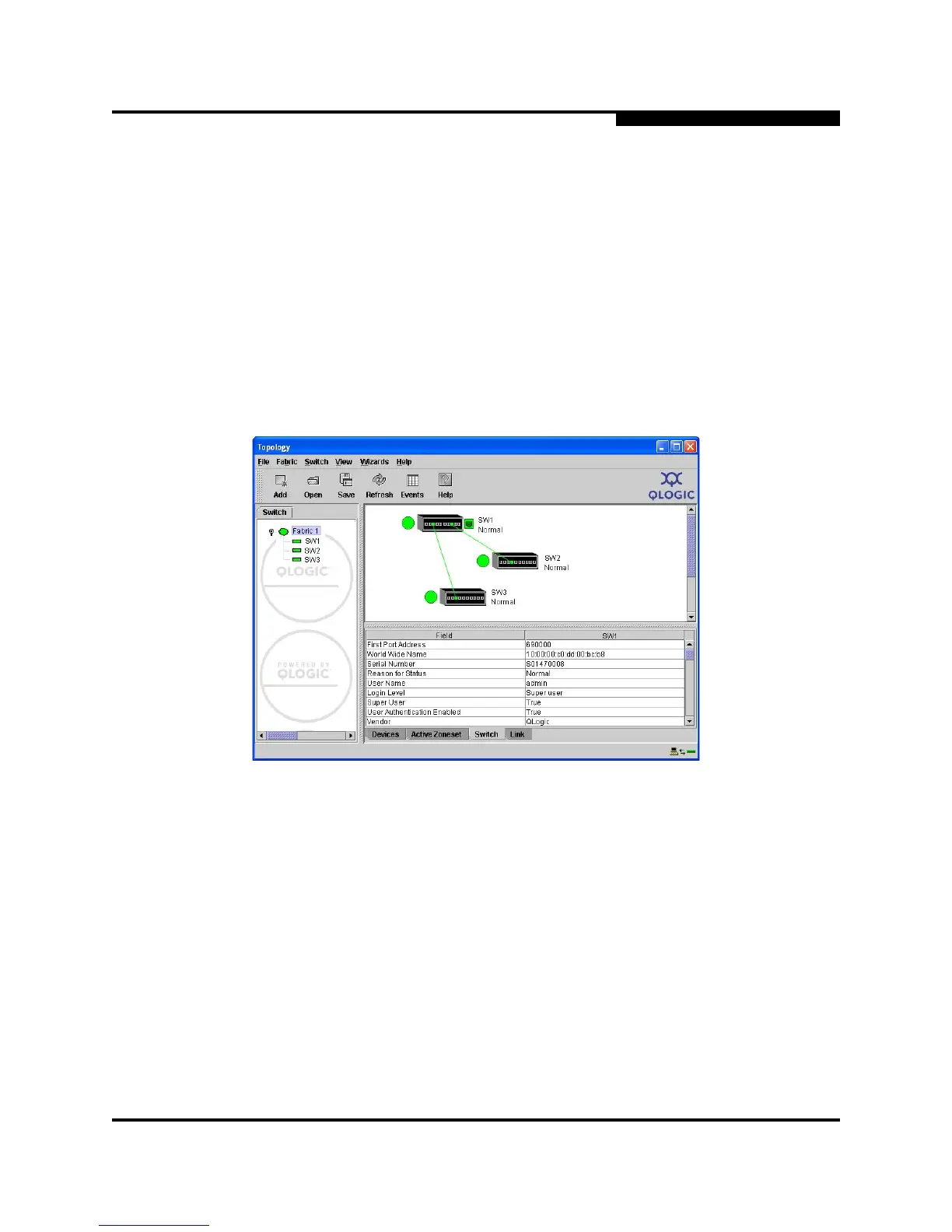

Figure 4-5 shows the faceplate display for the SANbox 1400 Series switch.
Figure 4-5. Faceplate Display - Switch Information
The fabric updates the topology and faceplate displays by forwarding changes in
status to the management workstation as they occur. You can allow the fabric to
update the switch status, or you can refresh the display at any time. To refresh
switch status in the display, do one of the following:
Click the Refresh button.
Open the View menu and select Refresh.
Press the F5 key.
Right-click a switch in the topology display and select Refresh Switch from
the popup menu.
Right-click in the graphic window of the faceplate display, and select
Refresh Switch from the popup menu.
