Active Zone Set Data Window
The Active Zoneset data window, shown in Figure 3-5, displays the zone
membership for the active zone set that resides on the fabric management switch.
The active zone set is the same on all switches in the fabric. To open the Active
Zoneset data window, click the Active Zoneset tab below the data window.
The Active Zoneset data window uses display conventions for expanding and
contracting entries that are similar to the fabric tree. An entry handle located to the
left of an entry in the tree indicates that the entry can be expanded. Click this
handle or double-click the following entries:
A zone set entry expands to show its member zones.
A zone entry expands to show its member ports/devices.
Ports/devices that are zoned by WWN or FC address, but no longer part of
the fabric, are grayed-out.

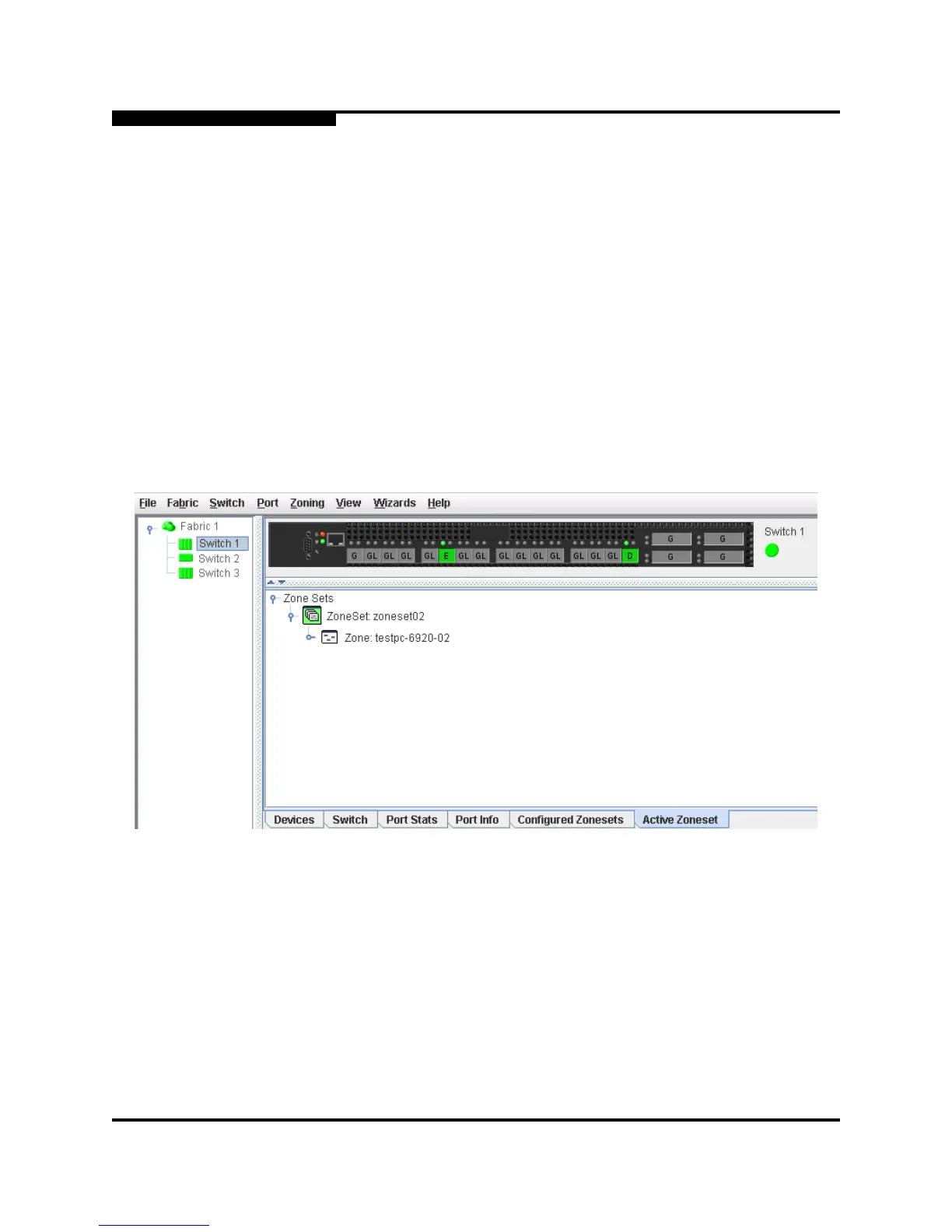

Figure 3-5. Active Zone Set Data Window
Active Zoneset
Data Window
To Next Page
