QSW-4700 Series Switches Hardware Installation and Reference Guide
INSTALLING THE SWITCH
57

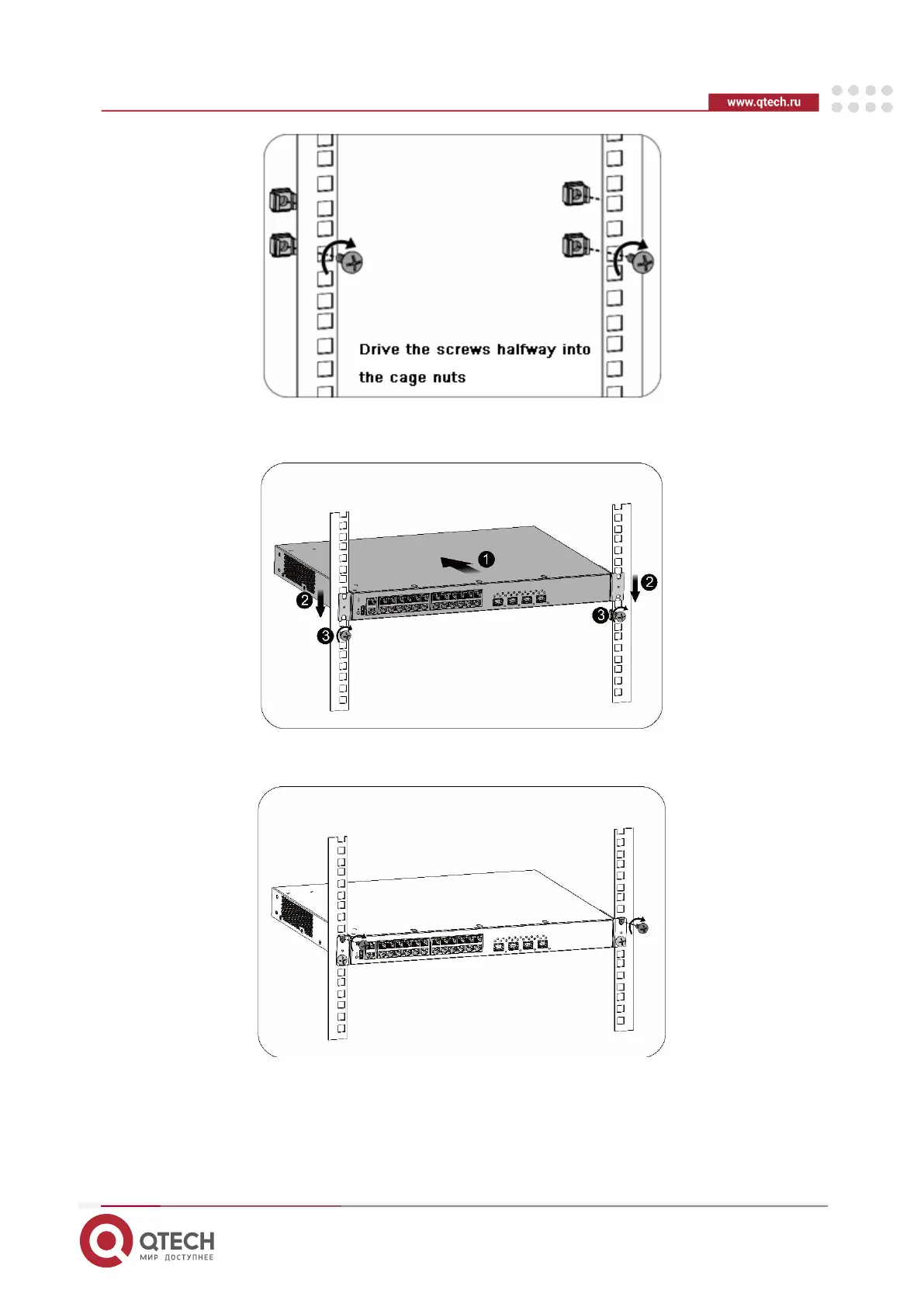

Figure 3-2 Installing Cage Nuts and Screws
3. Secure the switch on the rack rails by tightening the screws.
Figure 3-3 Tightening Screws
4. Insert screws into the other two cage nuts and tighten them.
Figure 3-4 Tightening Other Screws
3.3.2. Mounting the Switch on the Wall
All models of the QTECH QSW-4700 series switches can be installed on the wall. All models of
the QTECH QSW-4700 series switches cannot be installed on the wall.
