INSTALLING THE SWITCH
60
3. Connect the other end of the power cord to the DC terminal block of the rack. Connect
the blue power cord to -48 V DC, and the red power cord to the -48 V GND.

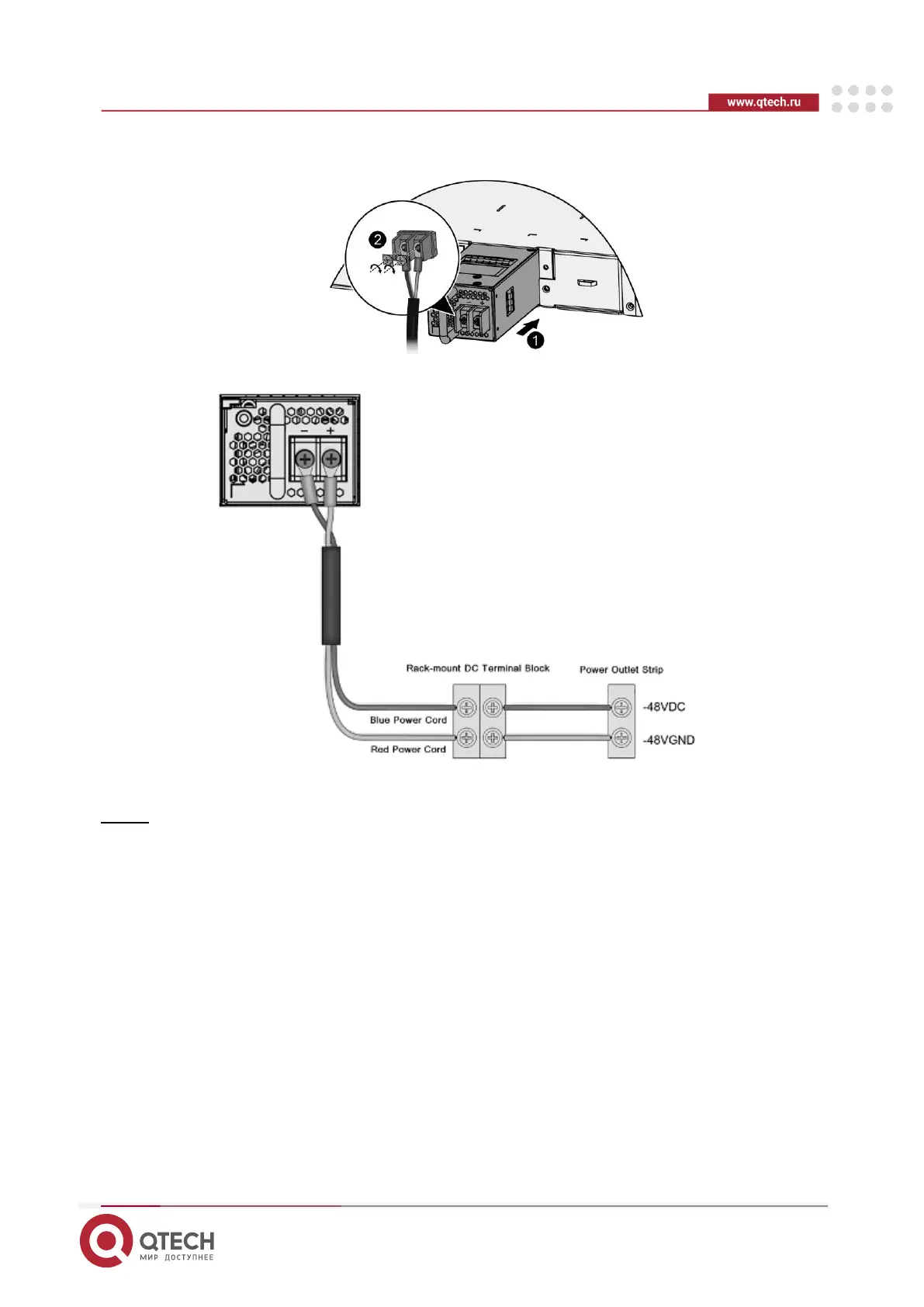

Figure 3-9 Installing the Module
Figure 3-10 DC Terminal Block
Note:
• Slide the module into the slot. Verify that the power supply module is in the correct
orientation.
• If you find it difficult to fully insert the module, pull the module out, align it to the guide
rails and slide it into the slot again.
3.4.4. Removing the DC Power Supply Module
1. Press the latch on the module and grasp the handle with one hand. Place your other
hand under the module to support its weight. Pull the module fully out of the slot.
2. Install the filler panel in the empty slot. Put the removed module back into its packing
materials.
