Quectel BG95 Series User Manual

LPWA Module Series
BG95 Hardware Design
BG95_Hardware_Design 69 / 80
7 Mechanical Dimensions
This chapter describes the mechanical dimensions of the module. All dimensions are measured in mm,
and the tolerances for dimensions without tolerance values are ±0.05mm.
7.1. Mechanical Dimensions of the Module
19.90±0.15
23.60±0.15
2.2±0.2

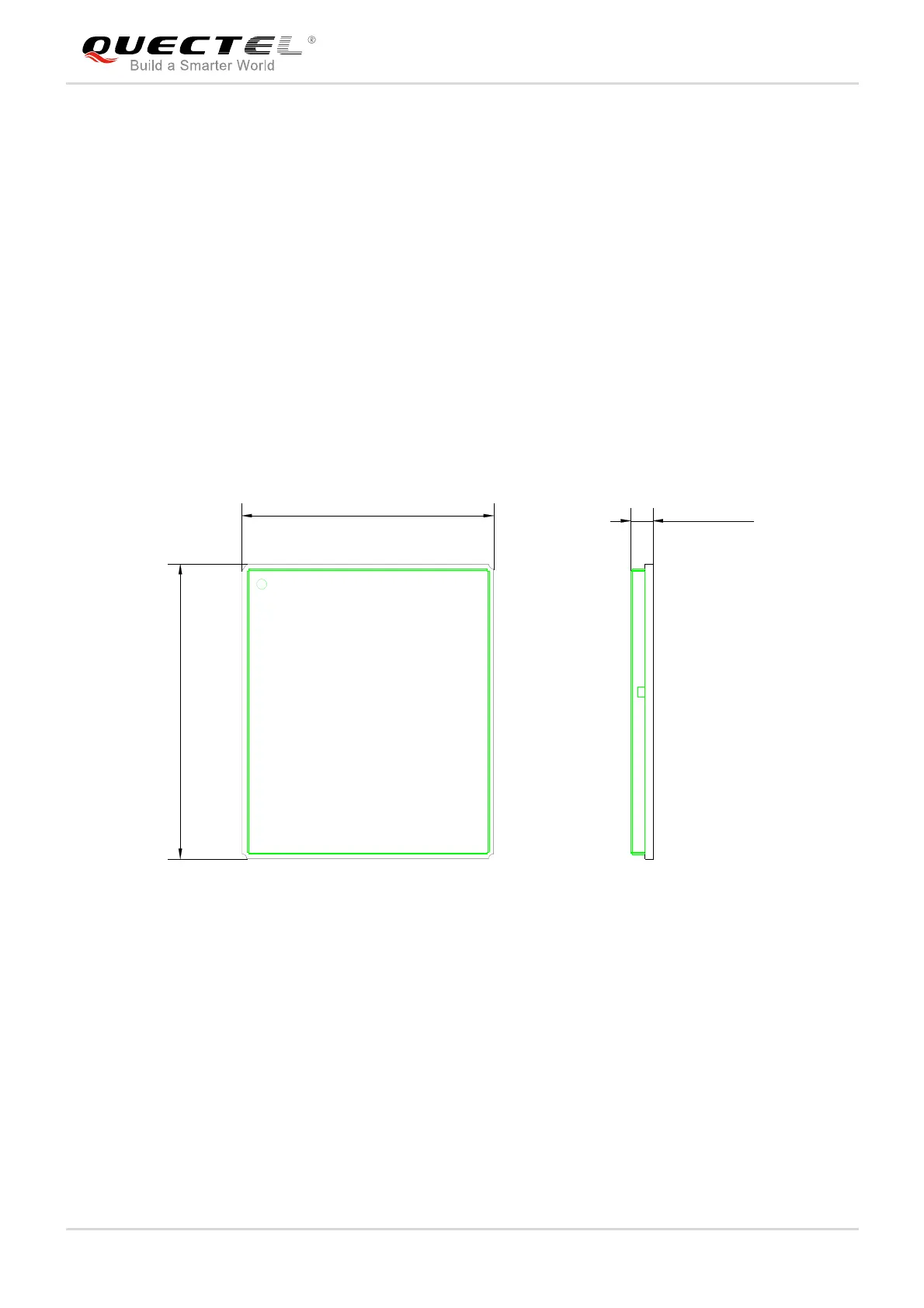

Figure 31: Module Top and Side Dimensions
Pin 1

Quectel BG95 Series Specifications

General

Form Factor	LGA
Dimensions	23.6 mm × 19.9 mm × 2.2 mm
Operating Temperature	-40°C to +85°C
Storage Temperature	-45°C to +90°C
GNSS	GPS/GLONASS/BeiDou/Galileo/QZSS
SIM Interface	1.8V/3.0V
LTE-FDD Bands	B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28
LTE-TDD Bands	B39
Data rates LTE Cat NB2	Uplink: 127 kbps, Downlink: 158.5 kbps
Data rates EGPRS	Up to 296 kbps DL / 236.8 kbps UL
Protocols	TCP/UDP/HTTP/HTTPS/MQTT/LWM2M/CoAP
Interfaces	UART
Certifications	CE/FCC/PTCRB/IC/NCC/RCM/CCC
