7.3. Design Effect Drawings of the Module

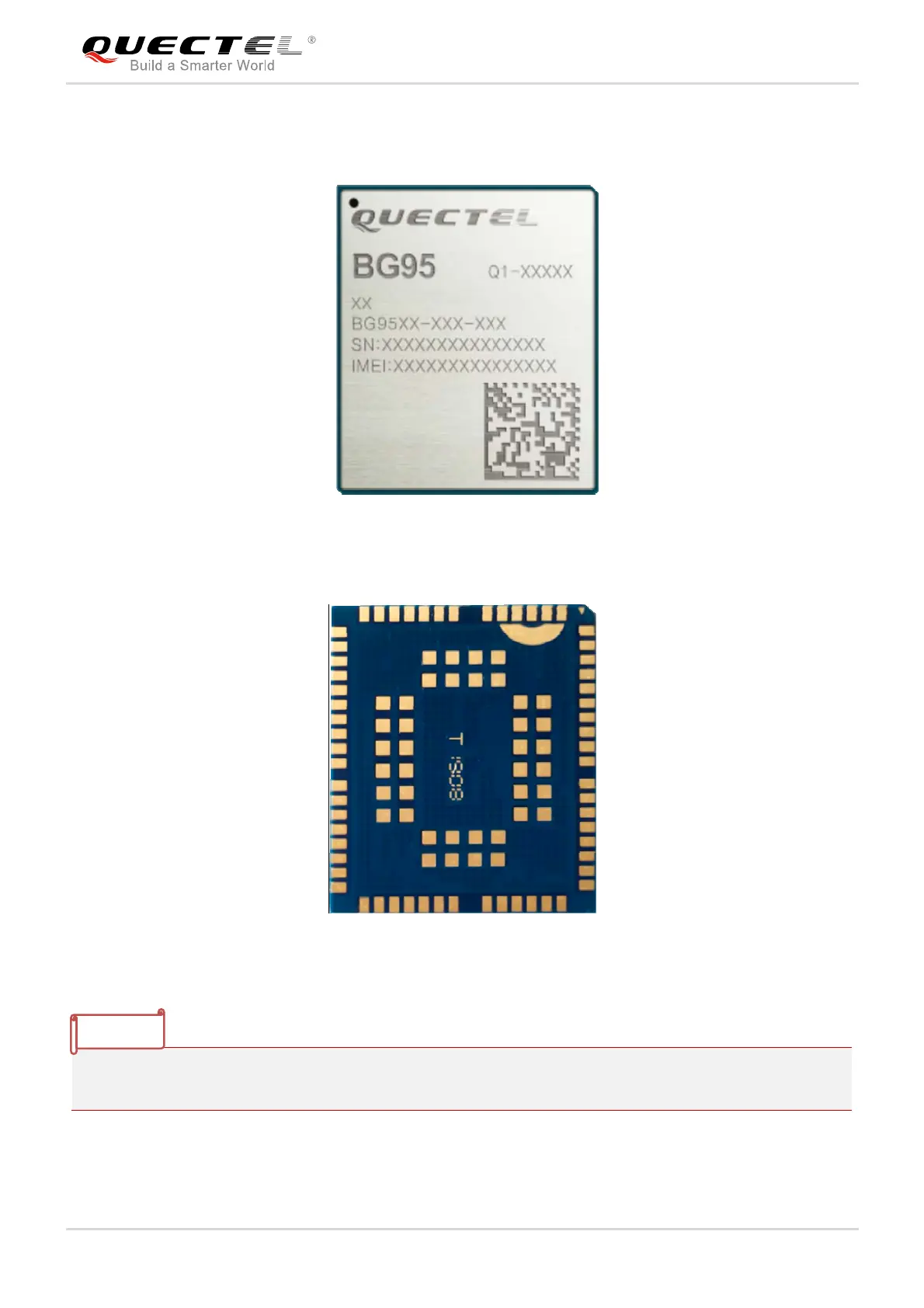

Figure 34: Top View of the Module
Figure 35: Bottom View of the Module
These are renderings of BG95 module. For authentic appearance, please refer to the module that you
receive from Quectel.
