Quectel LPWA Series User Manual

LPWA Module Series
BG950A-GL&BG951A-GL_Hardware_Design
51
/ 84

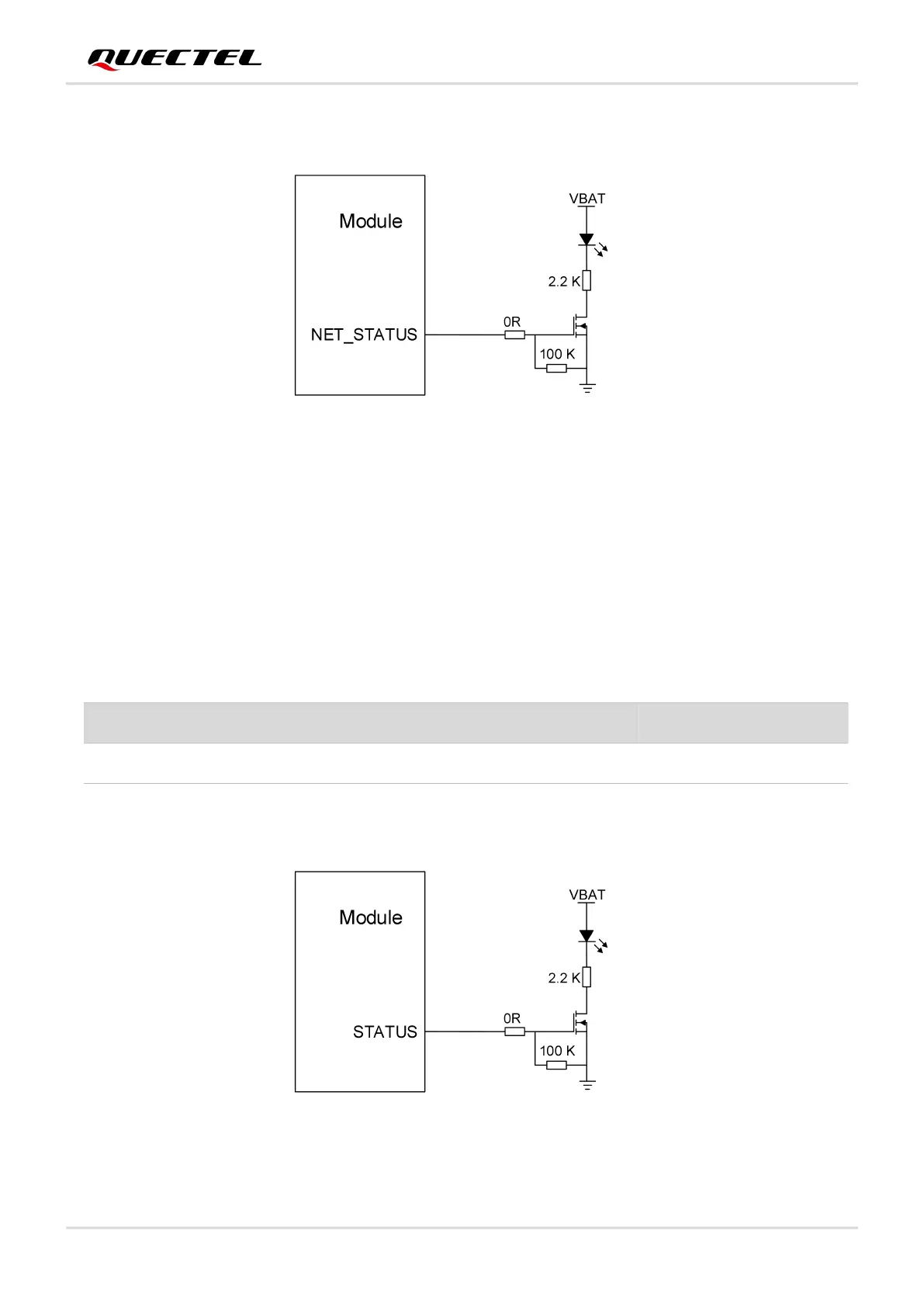

A reference circuit is shown in the following figure.
Figure 23: Reference Circuit of Network Status Indication
4.6.3. STATUS
The STATUS pin is an open drain output for indicating the module’s operation status. It will output high
level when module is powered on successfully.
Table 25: Pin Definition of STATUS
A reference circuit is shown as below.
Figure 24: Reference Circuits of STATUS
Pin Name
Pin No.
I/O
Description
Comment
STATUS
20
DO
Indicate the module’s operation status
1.8 V power domain
