16.2. Checkweighing
Checkweighing is a process intended for precise determining mass of a weighed sample
with set and enabled checkweighing thresholds (limits). The thresholds are to visualize (by
means of a bargraph located on the left side of the display) and monitor checkweighing
process.
Mode activating

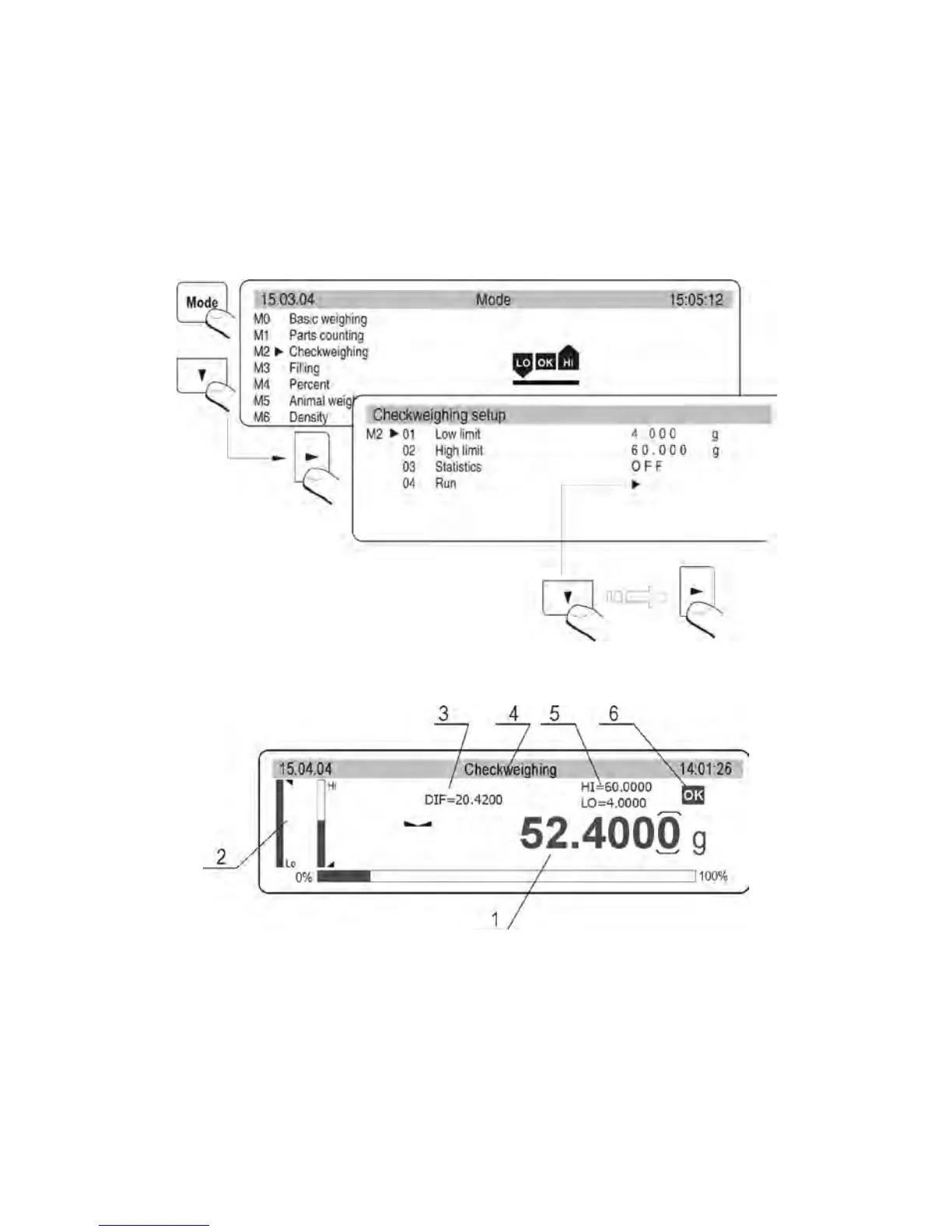

Fig. 34. Checkweighing – mode activating
Display content
Fig. 35. Checkweighing – display content
1 – measurement result
2 – bargraph
3 – working mode name
4 – difference between mass of weighed sample and the center of the tolerance field
(HI/LO)
5 – the values of low (LO) and high (HI) checkweighing thresholds
6 – a pictogram indicating the weighing range of currently weighed sample
(available indications: LO, OK and HI)
